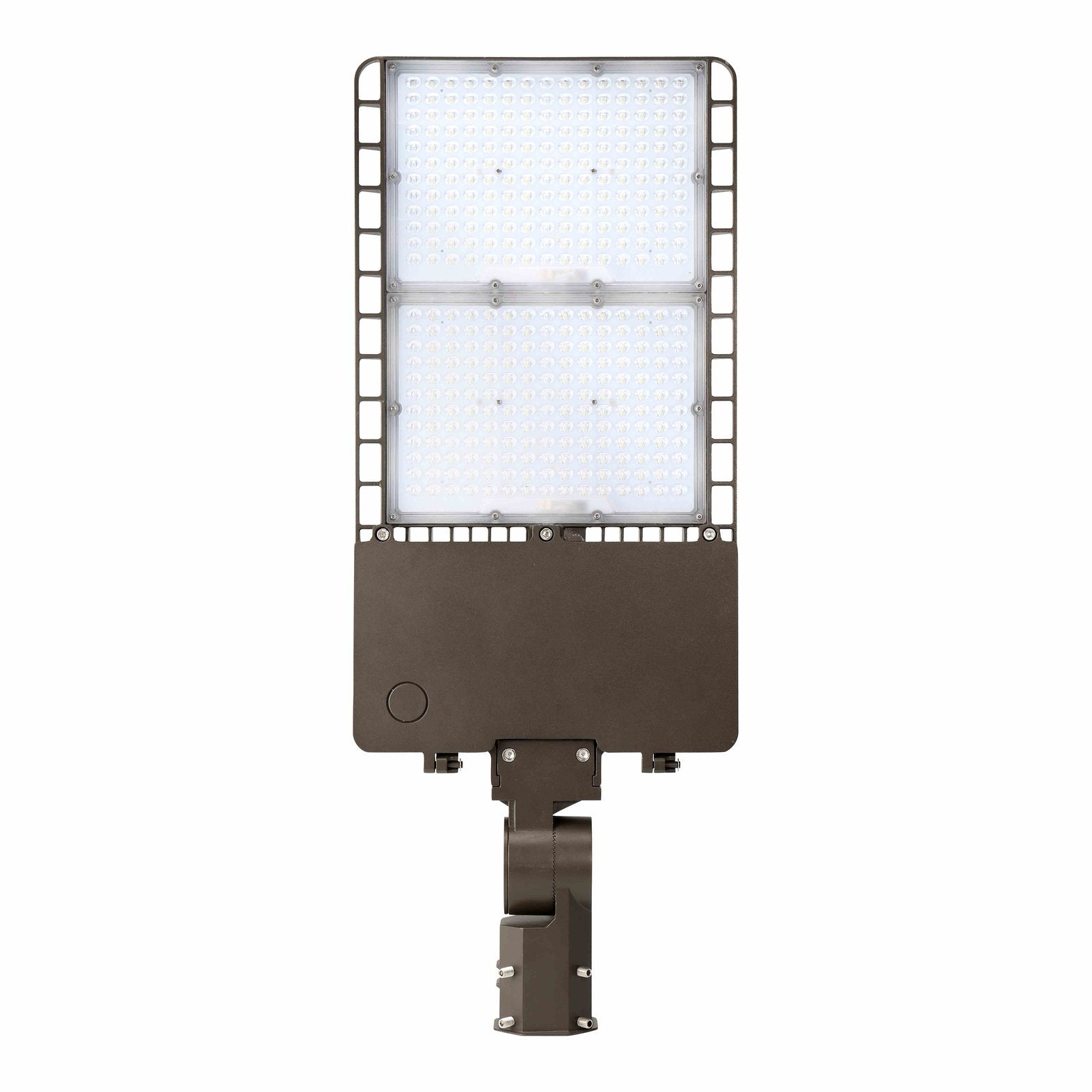

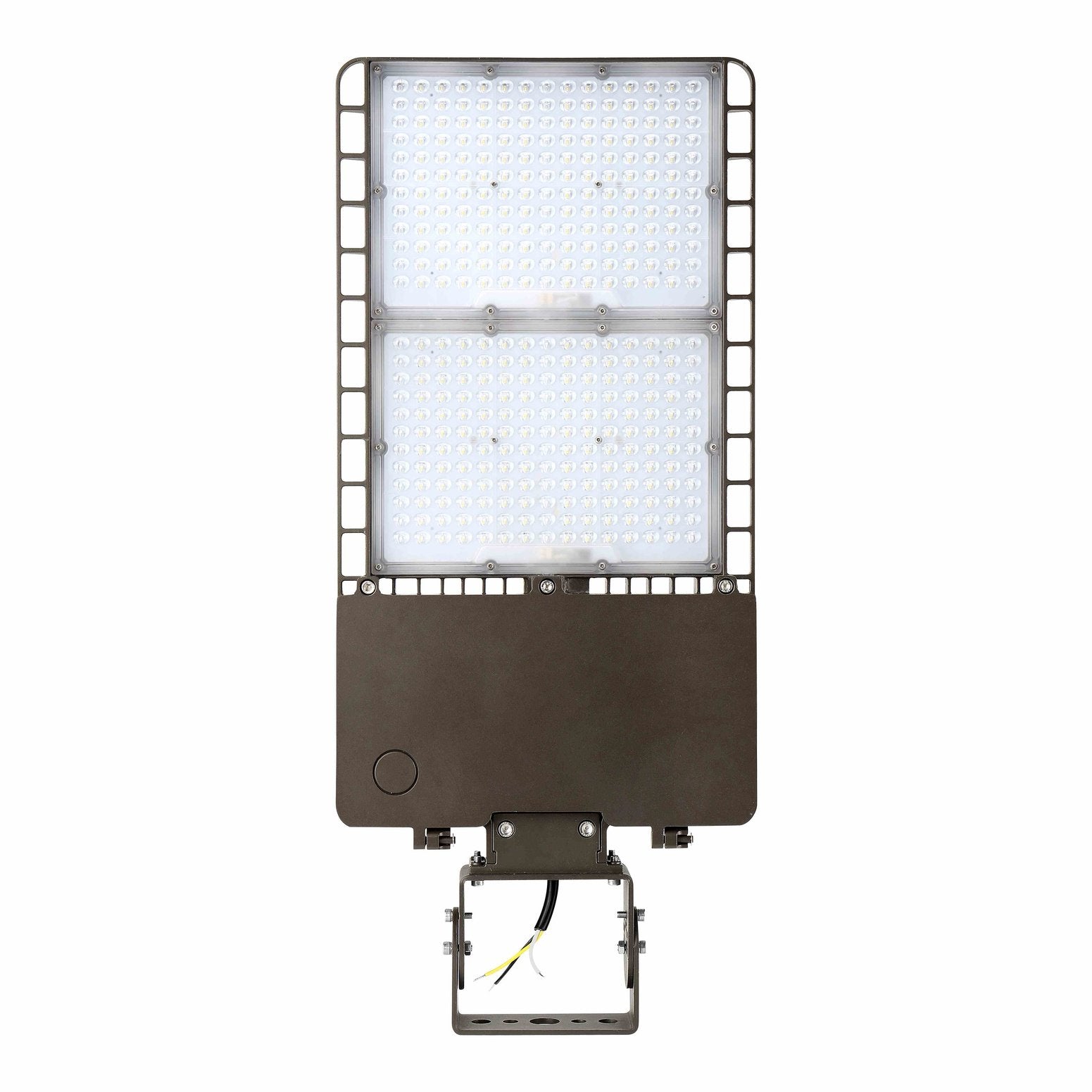

MAL05 LED Area Flood Light 300W 42000 Lumens 120-277VAC, 4000K or 5000K CCT - Dark Bronze

AL05 LED Area Flood Light, Parking Lot Lighting Fixture 300W Power Adjustable, 42000 Lumens, 120-277VAC 1-10V Dimmable LED Driver, 4000K or 5000K CCT, Dark Bronze, 2835 Ra70, Type 3 (NISG350W)

Specifications:

• UL Listed for Wet Locations
• DesignLights Consortium™ DLC Qualified
• Rugged one-piece, die-cast aluminium housing secures the thermally conductiveLED panel and electrical chamber
• Low profile, 3G vibration rated compact design minimizes wind load requirements.
• Housing is completely sealed against moisture and environmental contaminants.Construction:
• Available in IES Type III, IV, V distributions
• Light engines are available in standard 4000K and 5000K (70 CRI) configurations.
• Scalable Lumen Packages 42,000 Lumens replaces up to 1000W Metal Halide.
• Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
• The optics can conform to dark sky requirement.Optics:
• Universal 120-277 VAC
• Standard with 1-10V dimming driver(s)
• Power adjustable: 100%, 80%, 60%, 40%.
• THD: ≤20%
• Power Factor: ≥90%
• Optional occupancy sensor
• Optional Photocell Controls
• Ambient operating temperature -40 ̊ C to 40 ̊ C (-40°F to 104°F)
• Suitable for mounting heights ranging from 26-50’ in area lighting applications

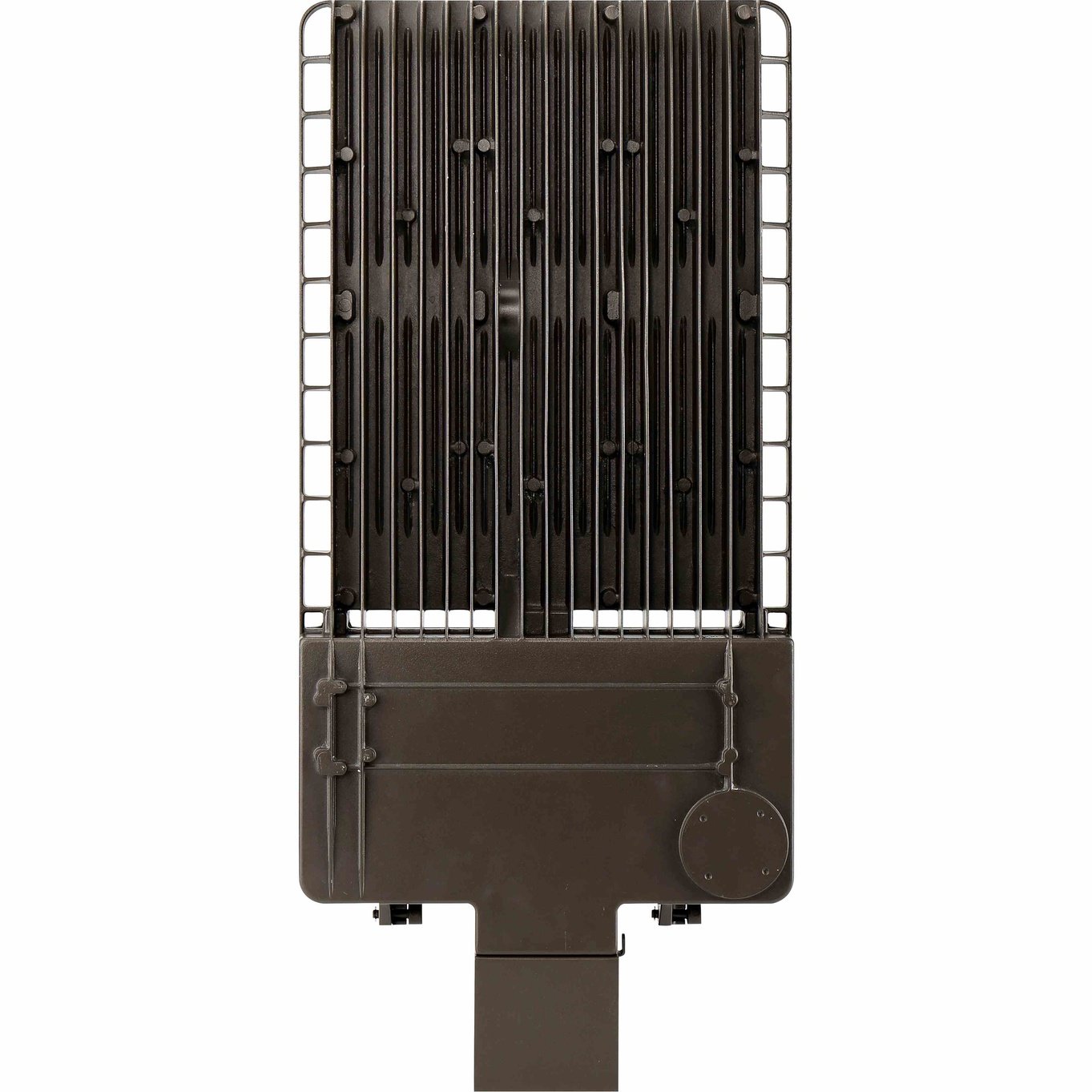

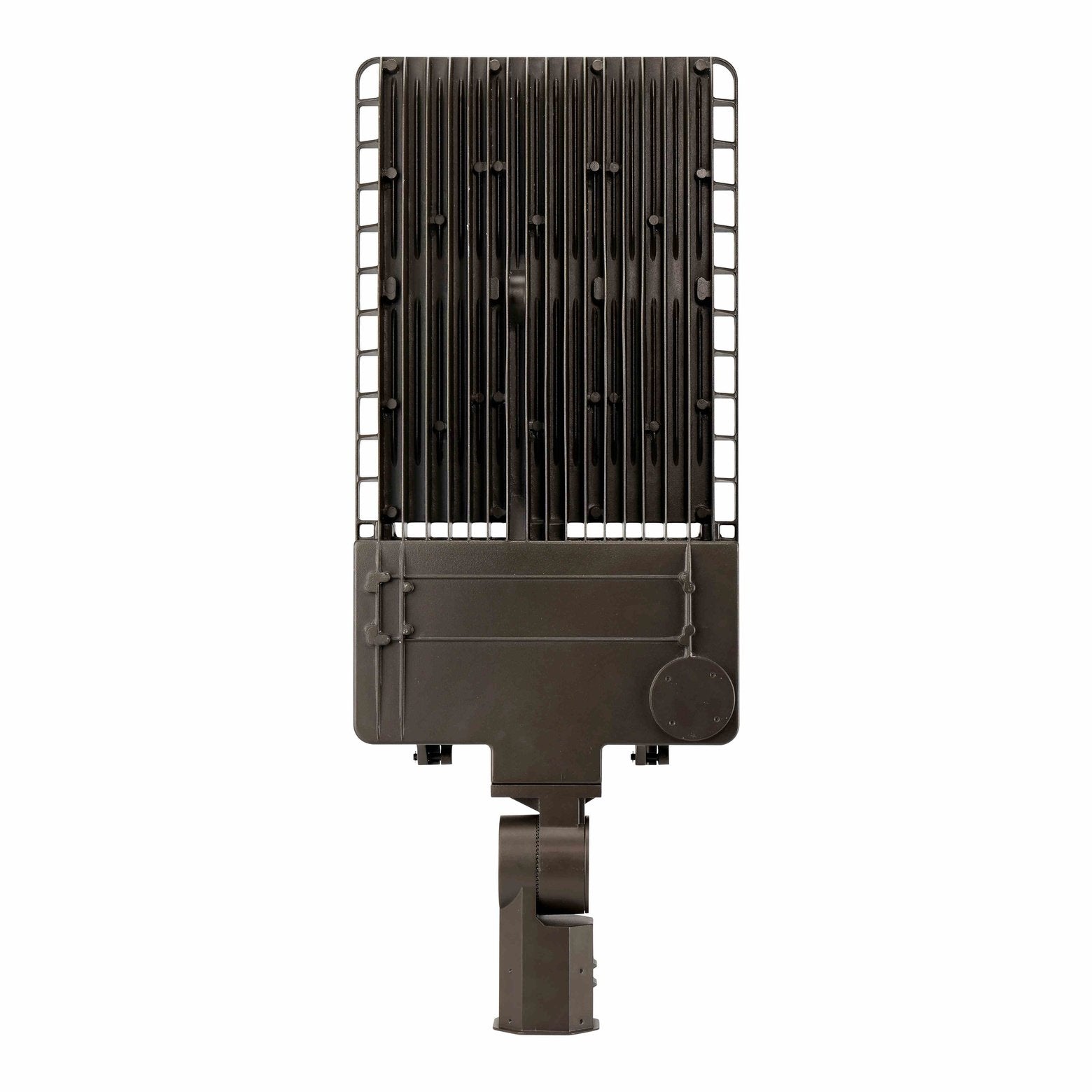

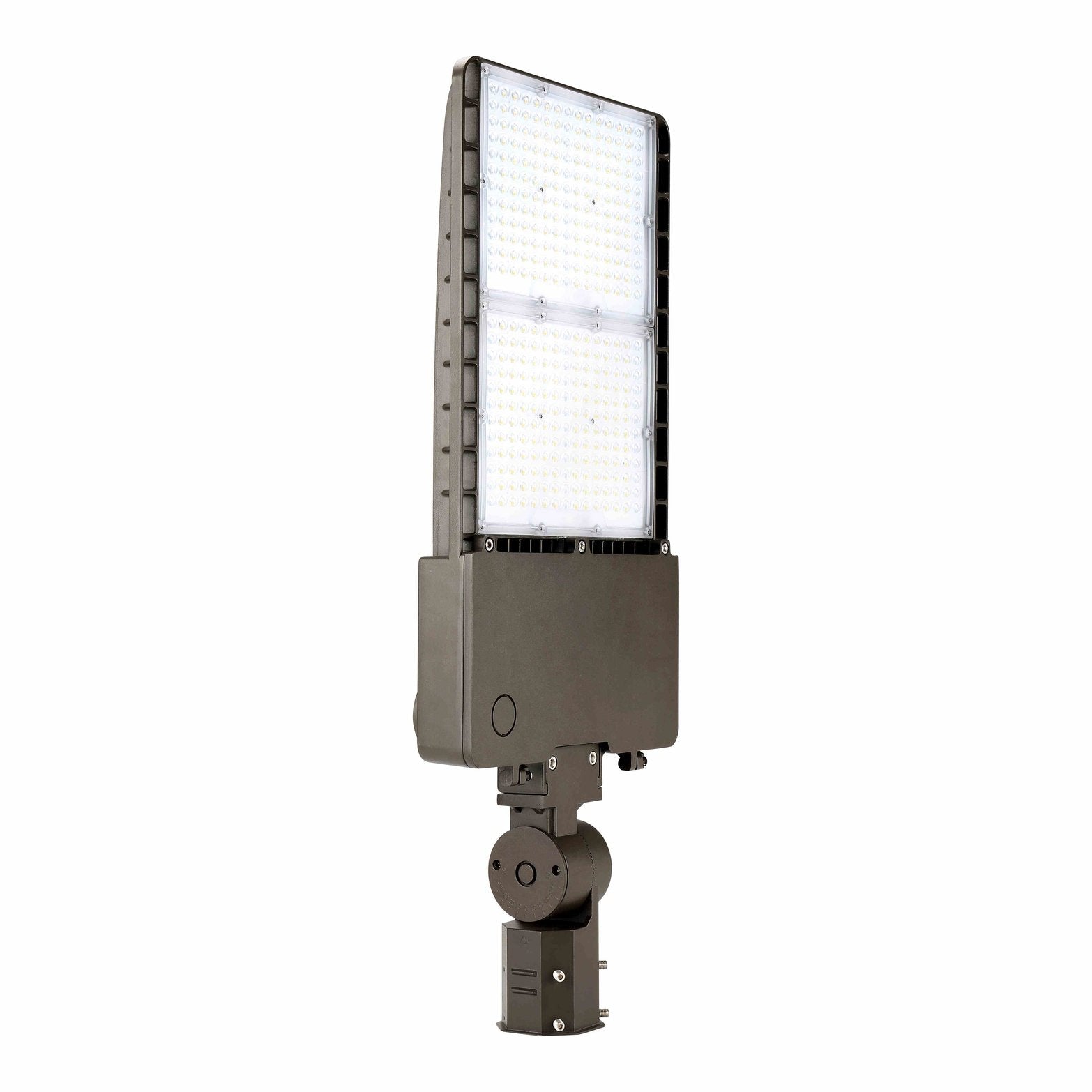

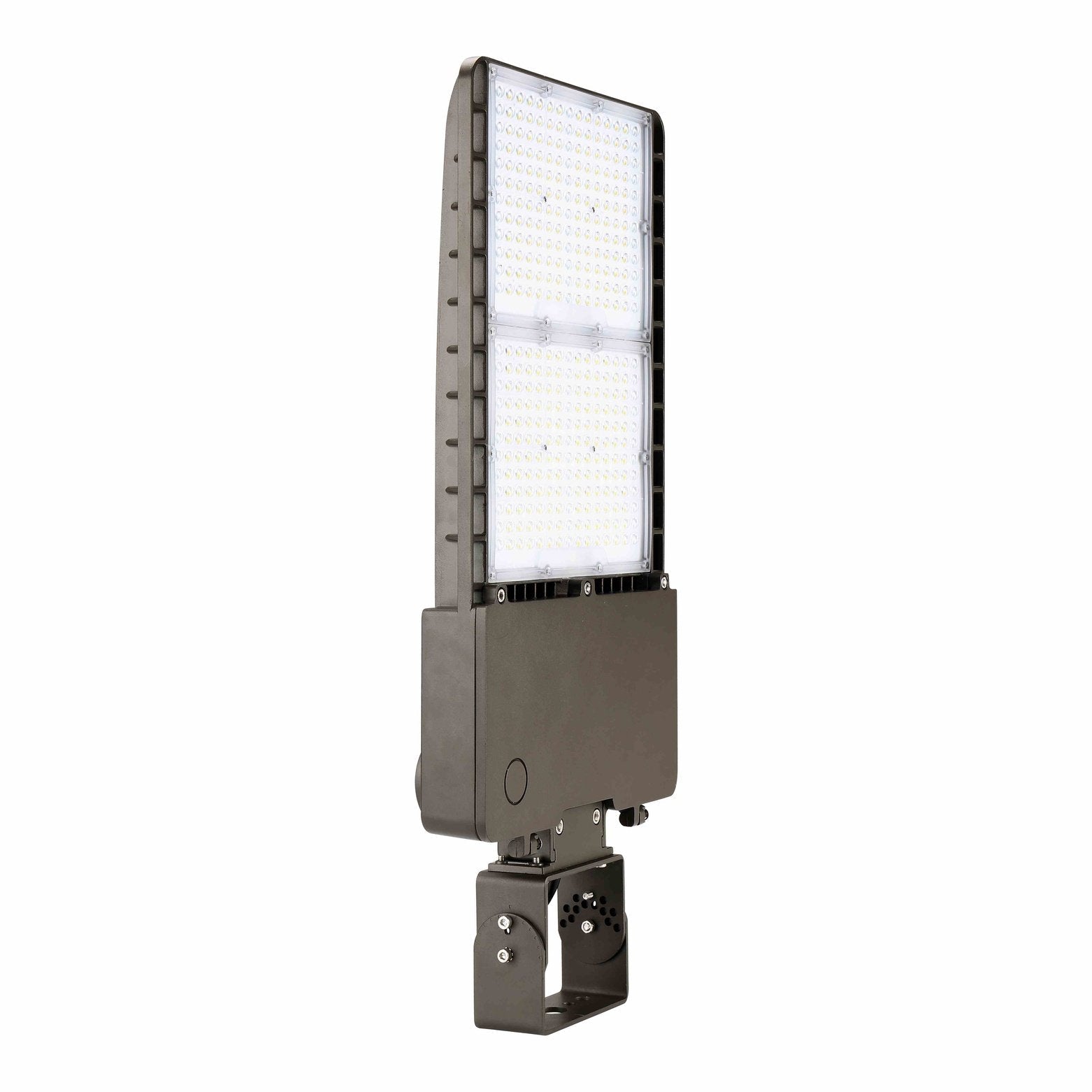

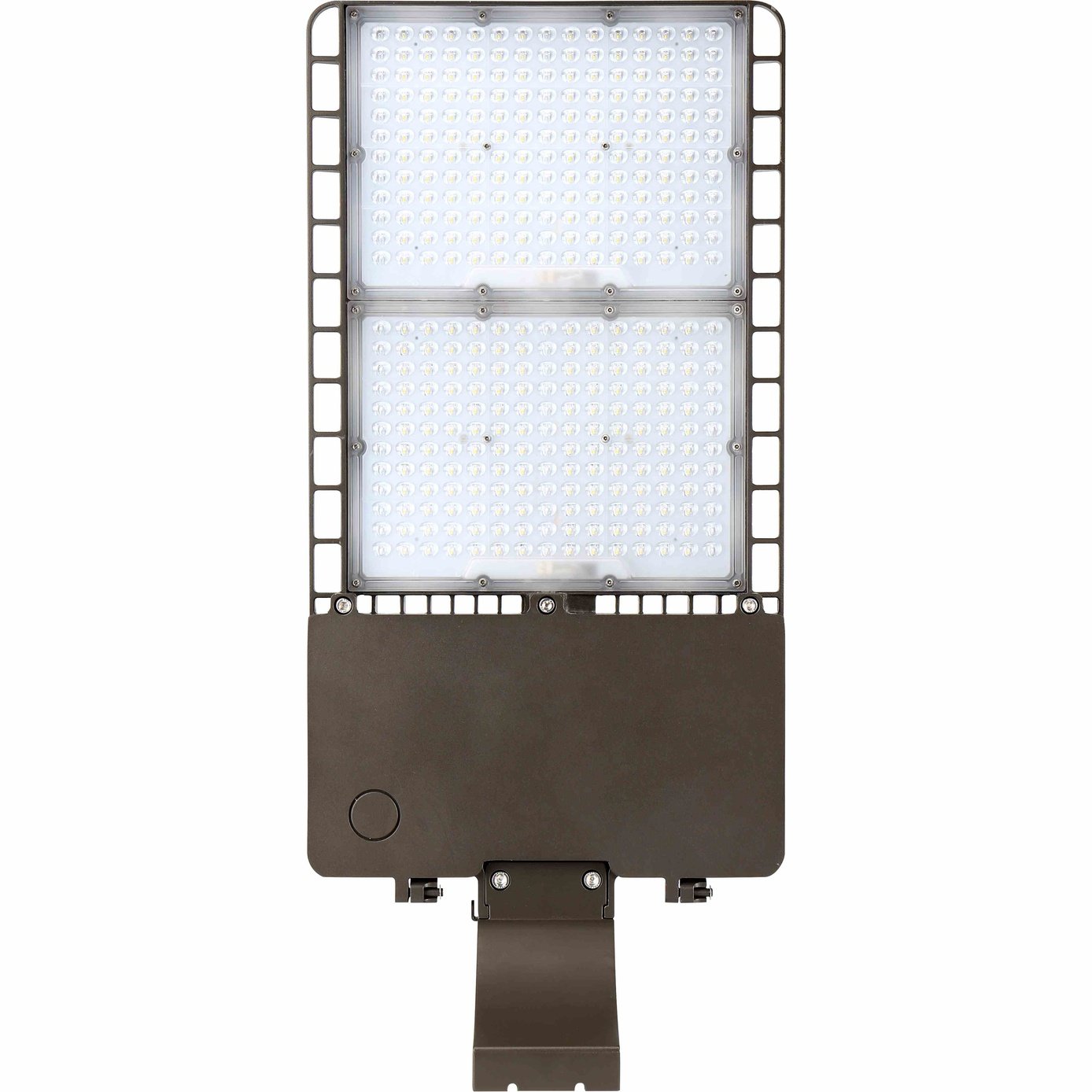

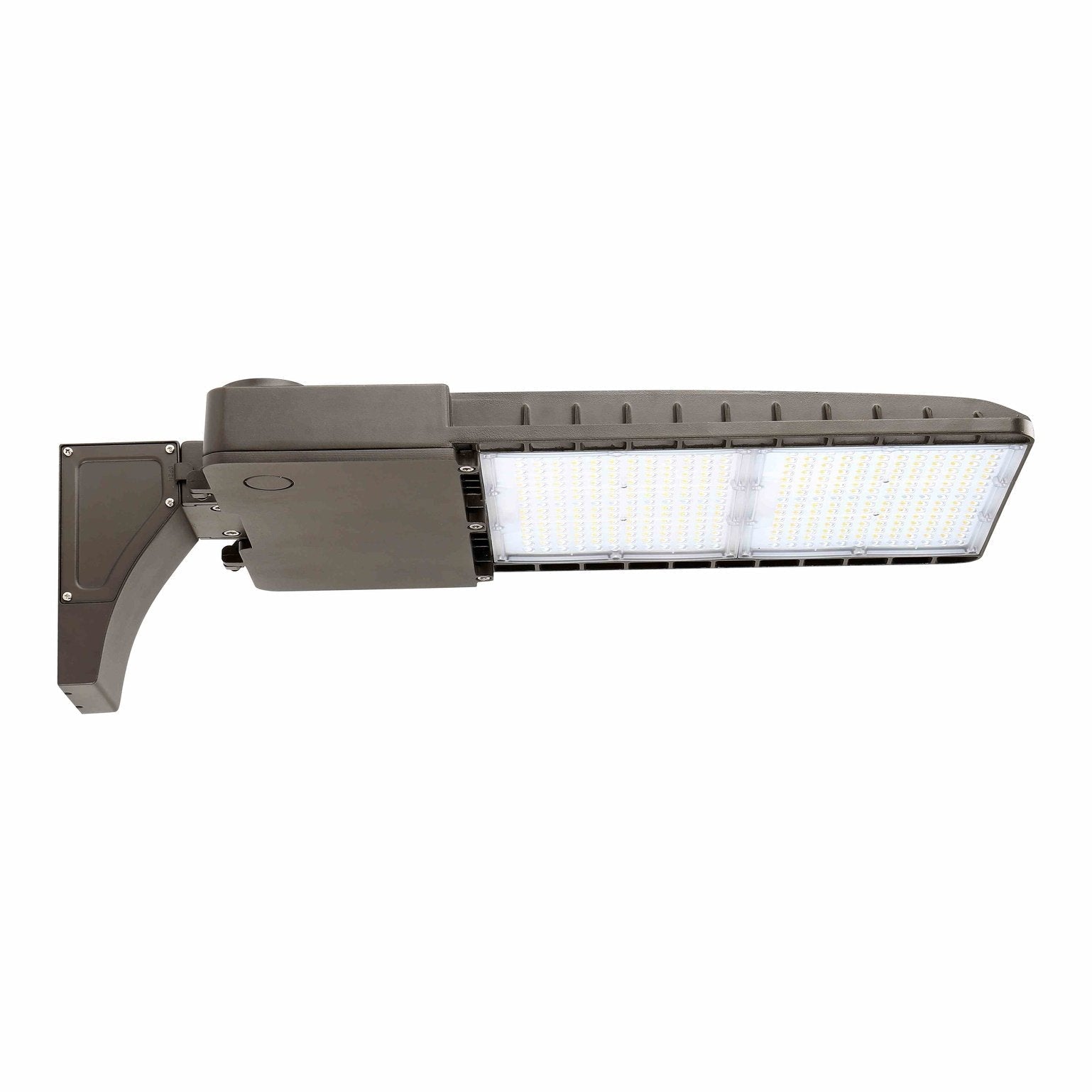

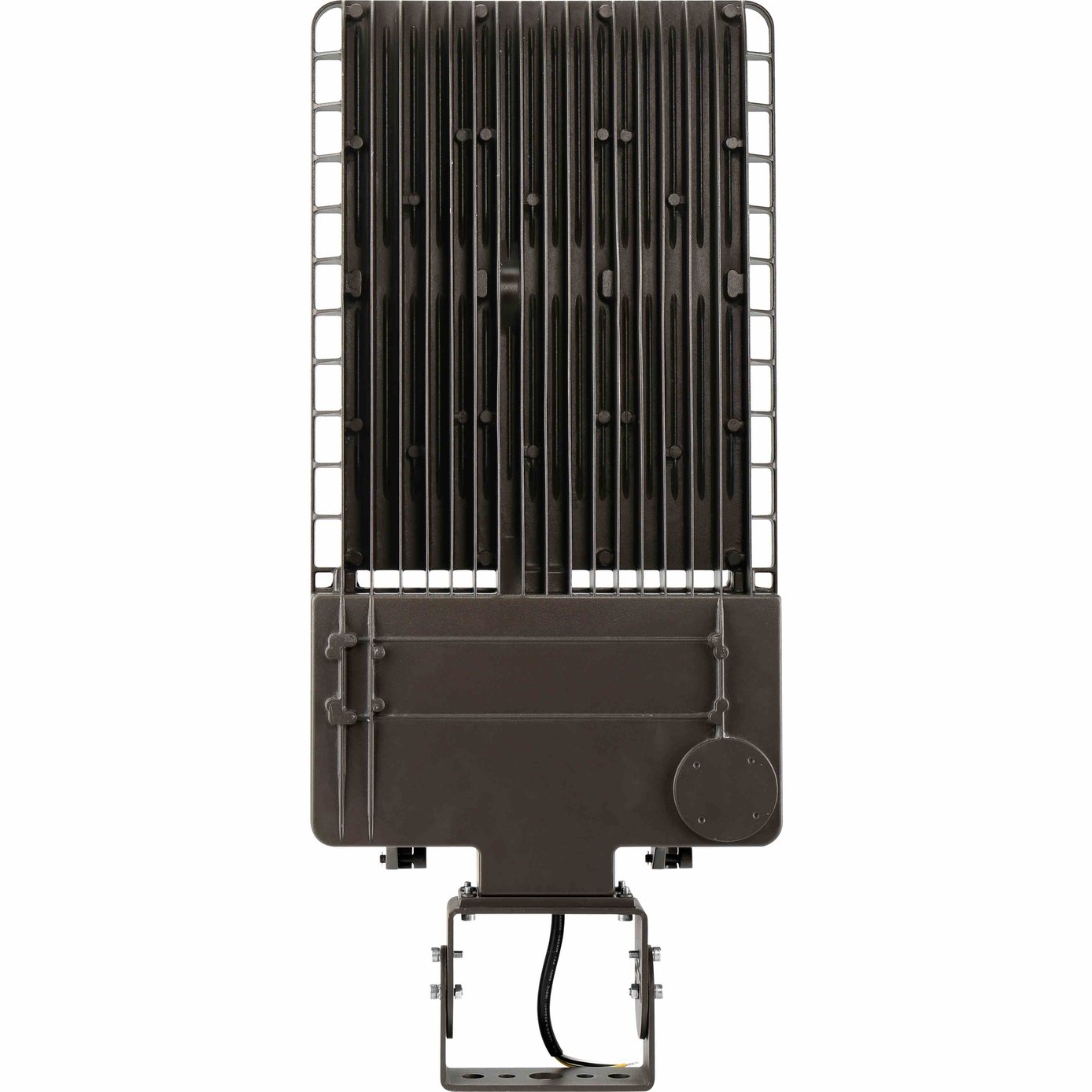

• Round pole, Square pole, slipfitter, wall mount and yoke are available.
• The design can be operated by one person to install the whole lampInstallation:
• Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Shipping Dimensions: 26.6 x 12.25 x 6.97 in.
• 5 Year Warranty Guarantee
