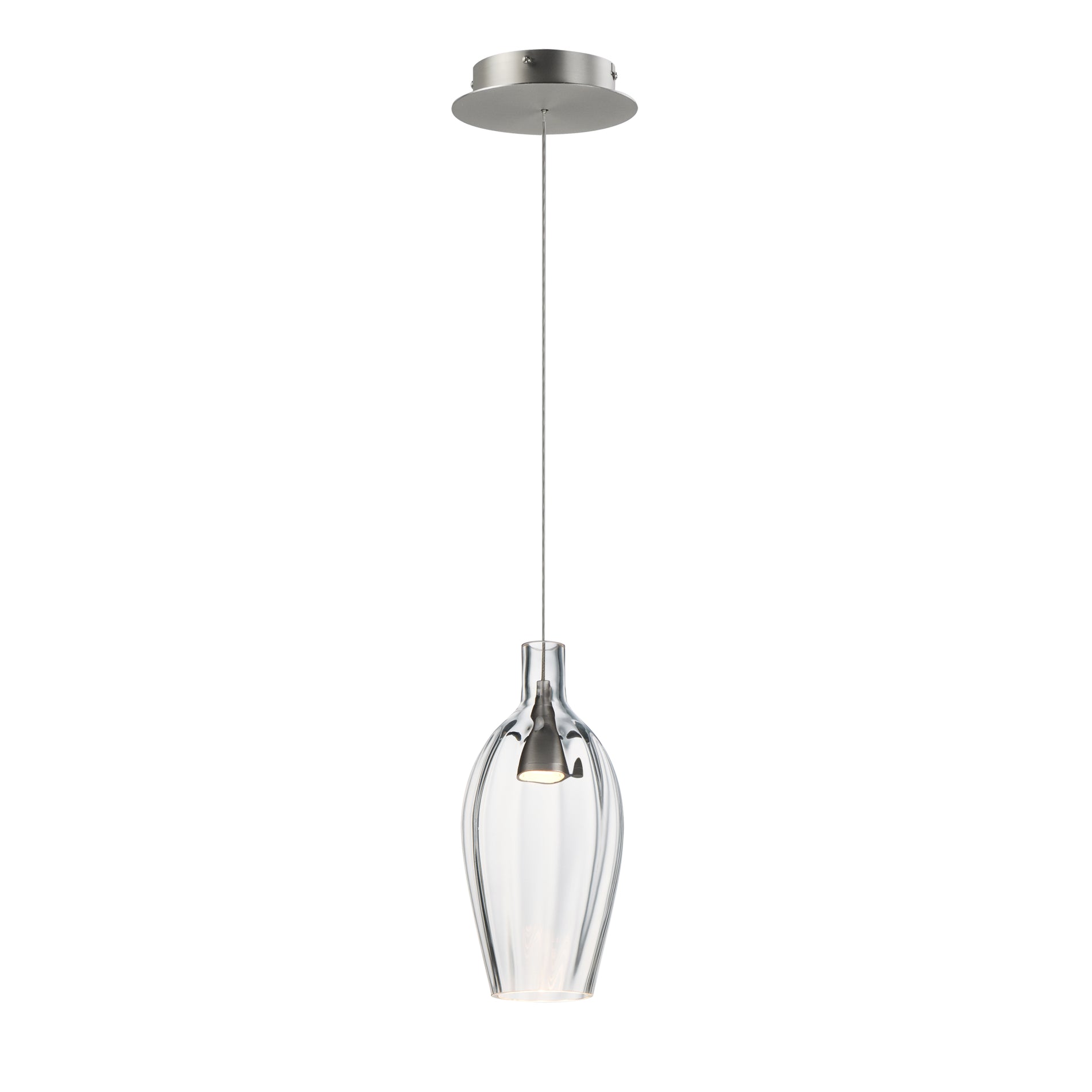

Studio M Ray Dance SM49312CL Single Pendant - Brushed Aluminum

Studio M

Studio M Ray Dance SM49312CL Single Pendant - Brushed Aluminum

Ray Dance LED Olive Pendant

Product Dossier

SKU
SM49312CL
Brand
Studio M
Fixture Type
Single Pendant
Price
$0.00
Availability
Available to order

FixtureFarm Trade Document

Generate Product Spec Sheet

Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.

FixtureFarm Lighting Submittal

Add This Fixture to a Project Submittal

Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.
Open Submittal Builder

Trade Resources

Downloads

Line DrawingOpen Drawing ↗ Specification Sheet Download PDF ↗ Line Drawing Open Resource ↗ Product Image Open Resource ↗ Alternative View 1 Open Resource ↗ Alternative View 2 Open Resource ↗ Alternative View 3 Open Resource ↗

Designer Specification Suite

Complete technical data for trade professionals

SKUSM49312CL
UPC783209359901
BrandStudio M
Product TypeSingle Pendant
Price$0.00
AvailabilityAvailable to order
CollectionRay Dance
Product TypeSingle Pendant
FinishBrushed Aluminum
MaterialAluminum,Steel
DimensionsH 12 × W 5.5 × L 5.5
Safety RatingDry
DesignerSignature
Warranty1
Lamping1 / PCB Integrated / 5.5

Ray Dance LED Olive Pendant

Trade Resources

Line Drawing → Specification Sheet → Line Drawing → Product Image → Alternative View 1 → Alternative View 2 → Alternative View 3 →

FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.

Core Product Data
Product NameStudio M Ray Dance SM49312CL Single Pendant - Brushed Aluminum
SKUSM49312CL
UPC783209359901
BrandStudio M
Product TypeSingle Pendant
Fixture Pagestudio-m-ray-dance-sm49312cl-single-pendant-brushed-aluminum
Price$0.00
AvailabilityAvailable to order
Fixture Details
SKUSM49312CL
UPC783209359901
PRODUCT_NAMERay Dance-Single Pendant
THEMERay Dance
SHORT_DESCRay Dance LED Olive Pendant
CATEGORYSingle Pendant
ALTERNATE CATEGORYSingle Pendant
FINISH_IDAL
FINISH_DESCBrushed Aluminum
GLASS_IDCL
GLASS_DESCClear
MATERIALAluminum,Steel
SHADE_MATERIALGlass
DESIGNERSignature
WARRANTY1
Dimensions
HEIGHT12
LENGTH5.5
WIDTH5.5
PROD_OA_HEIGHT132.75
PROD_OA_MIN_HEIGHT14
CANOPY_LENGTH6.25
CANOPY_HEIGHT1.5
CANOPY_WIDTH6.25
SHADE_TOP0
SHADE_BOTTOM0
WIRE_LENGTH120
Lighting & Electrical
NUMBER_OF_BULBS1
BULB_TYPEPCB Integrated
LTTYPELED
MAX_WATTAGE5.5
BULB_INCLUDEDI
COLOR_TEMP3000
DIMMABLE3-in-1 Triac, ELV, or 0-10V
CRI90
LUMENS500
INPUT_VOLTAGE120-277
OUTPUT_VOLTAGE24
PCB_BOARD_REPLACEABLE_Y
Compliance & Installation
SAFETY_RATINGDry
ADA_N
ENERGY_STARN
ENERGY_EFFICIENT_N
Shipping & Logistics
UNIT_INCREMENTS1
ORDER_MINIMUM1
WEIGHT2.6
UNIT_OF_MEASUREEA
CARTONS_PER_UNIT1
CARTON_CUBIC_FEET1.03
PACKED_WEIGHT5
PACKED_WEIGHT20
PACKED_WEIGHT30
BOX_WEIGHT5
CARTON_LENGTH117.75
CARTON_WIDTH110
CARTON_HEIGHT110
CARTON_LENGTH20
CARTON_WIDTH20
CARTON_HEIGHT20
CARTON_LENGTH30
CARTON_WIDTH30
CARTON_HEIGHT30
SHIPPED_VIAUPS
Media & Resource URLs
ImageURLhttps://www.studiomlighting.com/hi_res_images/SM49312CL.jpg
AlternativeViewURL1https://www.studiomlighting.com/hi_res_images/alternative_view/SM49312CL_01.jpg
AlternativeViewURL2https://www.studiomlighting.com/hi_res_images/alternative_view/SM49312CL_02.jpg
AlternativeViewURL3https://www.studiomlighting.com/hi_res_images/alternative_view/SM49312CL_03.jpg
MODELSM49312
ProdSpecURLhttps://www.studiomlighting.com/prodspec/SM49312CL
LineDrawingURLhttps://www.studiomlighting.com/images/line_drawings/SM49312.jpg
All Manufacturer Columns
SKUSM49312CL
UPC783209359901
PRODUCT_NAMERay Dance-Single Pendant
THEMERay Dance
SHORT_DESCRay Dance LED Olive Pendant
CATEGORYSingle Pendant
ALTERNATE CATEGORYSingle Pendant
UNIT_INCREMENTS1
ORDER_MINIMUM1
HEIGHT12
LENGTH5.5
WIDTH5.5
FINISH_IDAL
FINISH_DESCBrushed Aluminum
GLASS_IDCL
GLASS_DESCClear
UNIT_OF_MEASUREEA
WEIGHT2.6
CARTONS_PER_UNIT1
CARTON_CUBIC_FEET1.03
PACKED_WEIGHT5
NUMBER_OF_BULBS1
BULB_TYPEPCB Integrated
LTTYPELED
MAX_WATTAGE5.5
BULB_INCLUDEDI
SAFETY_RATINGDry
SHIPPED_VIAUPS
STATUSActive
DESIGNERSignature
ENERGY_STARN
SHADE_BOTTOM0
SHADE_TOP0
ITEM INTRO DATE46023
CANOPY_LENGTH6.25
WARRANTY1
ADA_N
CANOPY_HEIGHT1.5
CANOPY_WIDTH6.25
WIRE_LENGTH120
MATERIALAluminum,Steel
PROD_OA_HEIGHT132.75
PROD_OA_MIN_HEIGHT14
COLOR_TEMP3000
DIMMABLE3-in-1 Triac, ELV, or 0-10V
CRI90
SHADE_MATERIALGlass
LUMENS500
INPUT_VOLTAGE120-277
OUTPUT_VOLTAGE24
CARTON_LENGTH117.75
CARTON_WIDTH110
CARTON_HEIGHT110
CARTON_LENGTH20
CARTON_WIDTH20
CARTON_HEIGHT20
CARTON_LENGTH30
CARTON_WIDTH30
CARTON_HEIGHT30
ENERGY_EFFICIENT_N
NUMBER_OF_TIERS0
PACKED_WEIGHT20
PACKED_WEIGHT30
BOX_WEIGHT5
PCB_BOARD_REPLACEABLE_Y
ImageURLhttps://www.studiomlighting.com/hi_res_images/SM49312CL.jpg
AlternativeViewURL1https://www.studiomlighting.com/hi_res_images/alternative_view/SM49312CL_01.jpg
AlternativeViewURL2https://www.studiomlighting.com/hi_res_images/alternative_view/SM49312CL_02.jpg
AlternativeViewURL3https://www.studiomlighting.com/hi_res_images/alternative_view/SM49312CL_03.jpg
MODELSM49312
ProdSpecURLhttps://www.studiomlighting.com/prodspec/SM49312CL
LineDrawingURLhttps://www.studiomlighting.com/images/line_drawings/SM49312.jpg
