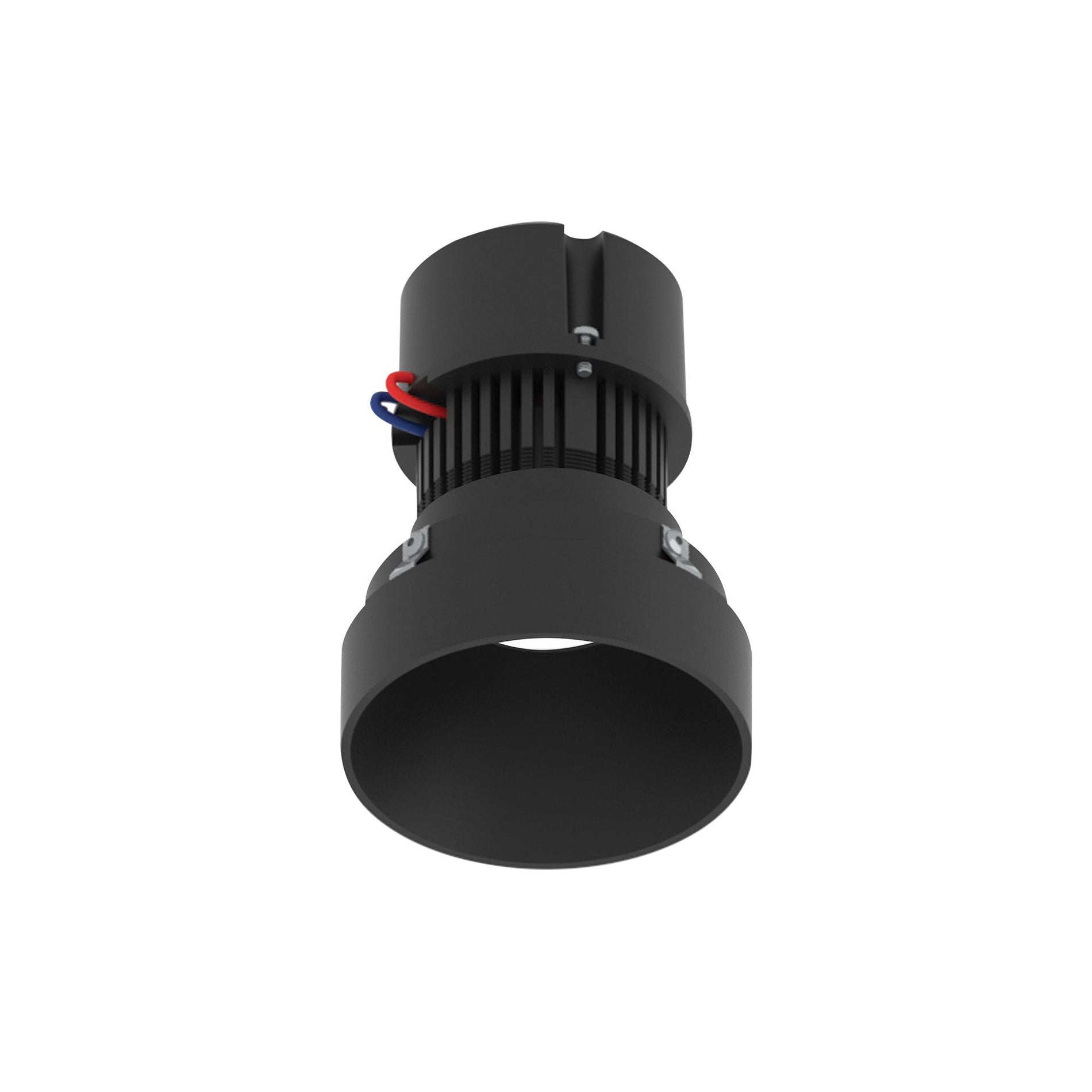

4" Pearl 120V LED Round Trimless Retrofit Downlight, 1150lm / 10W, 2700K, Black Finish
4" Pearl LED Retrofit series is cULus classified for use in existing IC housings manufactured by Nora. Each luminaire requires a trimless mud ring and will have no exposed trim flange or extend beyond the ceiling plane. Deep regressed cone reflectors optimize visual cut-off. Required Trimless Mud Plate: NPR-TLMR-4R or NPR-TLMR-6R Input Voltage: 120VAC Socket: Medium Base Lumens / Wattage: 1150lm / 10W Color Temperature: 2700K Beam Spread: Three field changeable optics included Dimming: Triac or ELV Finish: Black Listing: cULus classified for wet locations
Product details
- Manufacturer SKU: NPR-4RTLNDC27XBB
- UPC: 732180842858
- Base item: NPR-4RTLNDC
- Product family: Pearl
- Product line: LE92
- Category: Recessed
- Finish: Black
- Lumen output: 1150lm
- Wattage: 10W
- Color temperature: 2700K
- CRI: 90
- Safety listing: cULus
- Location rating: Wet
- Country of origin: CHN
- Certifications: ENERGY STAR: Yes, Title 24: Yes
Dimensions and packaging
- Product length: 5.25 in
- Product width: 4.875 in
- Product height: 3.625 in
- Product weight: 1 lb
- Estimated shipping weight: 2 lb
- Individual package length: 5.375 in
- Individual package width: 5.25 in
- Individual package height: 5.25 in
- Individual package weight: 1.1 lb
- Master carton quantity: 12
- Master carton length: 17 in
- Master carton width: 12 in
- Master carton height: 12 in
- Master carton weight: 15 lb
Compliance and technical data
- CEC item number: NPR-4*********
- CEC substitute item: NPR-4RTLNDC30XBB
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NPR-4RTLNDC27XBB
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $94.41
- Availability
- Available to order
- Brand
- Nora lighting
- Fixture
- Recessed
- Location
- Interior
- Rating
- Wet
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" Pearl LED Retrofit series is cULus classified for use in existing IC housings manufactured by Nora. Each luminaire requires a trimless mud ring and will have no exposed trim flange or extend beyond the ceiling plane. Deep regressed cone reflectors optimize visual cut-off. Required Trimless Mud Plate: NPR-TLMR-4R or NPR-TLMR-6R Input Voltage: 120VAC Socket: Medium Base Lumens / Wattage: 1150lm / 10W Color Temperature: 2700K Beam Spread: Three field changeable optics included Dimming: Triac or ELV Finish: Black Listing: cULus classified for wet locations
Product details
- Manufacturer SKU: NPR-4RTLNDC27XBB
- UPC: 732180842858
- Base item: NPR-4RTLNDC
- Product family: Pearl
- Product line: LE92
- Category: Recessed
- Finish: Black
- Lumen output: 1150lm
- Wattage: 10W
- Color temperature: 2700K
- CRI: 90
- Safety listing: cULus
- Location rating: Wet
- Country of origin: CHN
- Certifications: ENERGY STAR: Yes, Title 24: Yes
Dimensions and packaging
- Product length: 5.25 in
- Product width: 4.875 in
- Product height: 3.625 in
- Product weight: 1 lb
- Estimated shipping weight: 2 lb
- Individual package length: 5.375 in
- Individual package width: 5.25 in
- Individual package height: 5.25 in
- Individual package weight: 1.1 lb
- Master carton quantity: 12
- Master carton length: 17 in
- Master carton width: 12 in
- Master carton height: 12 in
- Master carton weight: 15 lb
Compliance and technical data
- CEC item number: NPR-4*********
- CEC substitute item: NPR-4RTLNDC30XBB
- CEC database: Yes
- Contains battery: No
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
