Nora Lighting

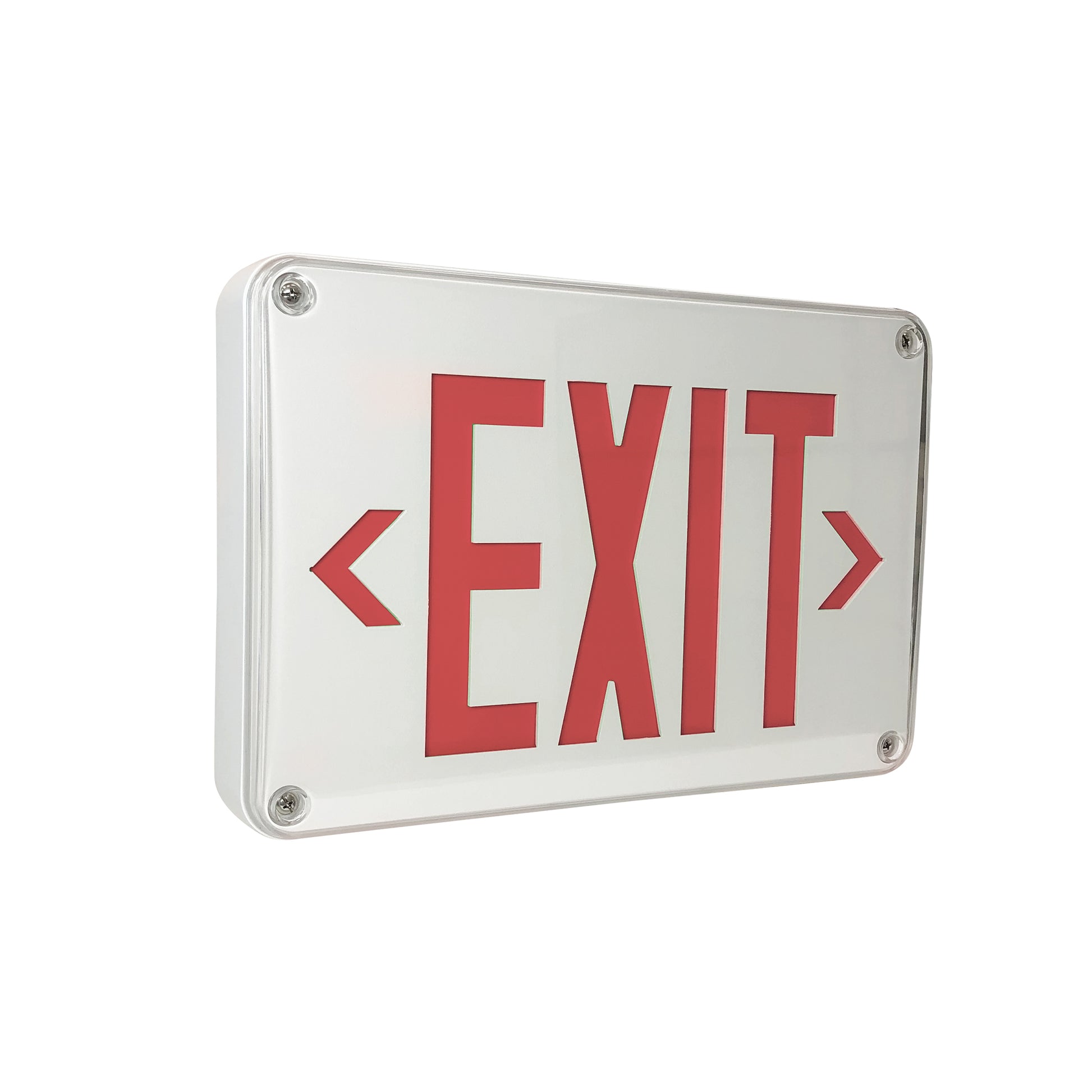

LED Self-Diagnostic Wet Location Exit Sign w/ Battery Backup, White Housing w/ 6" Red Letters
LED exit sign with 6" red letters and white housing; battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur. Battery Backup. Input Voltage: 120/277VAC Wattage: 2.4W Finish: White Face: Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" Red letters with 3/4" stroke and field selectable directional chevrons included. Testing: Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self tests and diagnostics on battery, charging board, transfer circuit and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress. Mounting: Wall, side, or ceilling mount. All mounting hardware included Listing: cULus Listed for Wet Locations, UL 924, Title 20, NFPA 70, NFPA 101
Product details
- Manufacturer SKU: NX-617-LED/R
- UPC: 732180706327
- Base item: NX-617-LED
- Product family: EXIT
- Product line: 5010
- Category: Exit / Emergency
- Finish: White
- Wattage: 2.4W
- Safety listing: UL 924, NFPA 70 / NFPA-101, Title 20
- Location rating: Wet
- Country of origin: CHN
Dimensions and packaging
- Product length: 2.5 in
- Product width: 13 in
- Product height: 8.875 in
- Product weight: 3.9 lb
- Estimated shipping weight: 7 lb
- Individual package length: 13.5 in
- Individual package width: 3.5 in
- Individual package height: 9.125 in
- Individual package weight: 5.05 lb
- Master carton quantity: 6
- Master carton length: 22 in
- Master carton width: 15 in
- Master carton height: 10 in
- Master carton weight: 32 lb
Compliance and technical data
- Contains battery: Yes
- Battery type: Nickel- Cadmium
- Battery quantity: 1
Resources
Product Dossier
- SKU
- NX-617-LED/R
- Brand
- Nora Lighting
- Fixture Type
- Exit / Emergency
- Price
- $131.31
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
LED exit sign with 6" red letters and white housing; battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur. Battery Backup. Input Voltage: 120/277VAC Wattage: 2.4W Finish: White Face: Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" Red letters with 3/4" stroke and field selectable directional chevrons included. Testing: Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self tests and diagnostics on battery, charging board, transfer circuit and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress. Mounting: Wall, side, or ceilling mount. All mounting hardware included Listing: cULus Listed for Wet Locations, UL 924, Title 20, NFPA 70, NFPA 101
Product details
- Manufacturer SKU: NX-617-LED/R
- UPC: 732180706327
- Base item: NX-617-LED
- Product family: EXIT
- Product line: 5010
- Category: Exit / Emergency
- Finish: White
- Wattage: 2.4W
- Safety listing: UL 924, NFPA 70 / NFPA-101, Title 20
- Location rating: Wet
- Country of origin: CHN
Dimensions and packaging
- Product length: 2.5 in
- Product width: 13 in
- Product height: 8.875 in
- Product weight: 3.9 lb
- Estimated shipping weight: 7 lb
- Individual package length: 13.5 in
- Individual package width: 3.5 in
- Individual package height: 9.125 in
- Individual package weight: 5.05 lb
- Master carton quantity: 6
- Master carton length: 22 in
- Master carton width: 15 in
- Master carton height: 10 in
- Master carton weight: 32 lb
Compliance and technical data
- Contains battery: Yes
- Battery type: Nickel- Cadmium
- Battery quantity: 1
