Nora Lighting

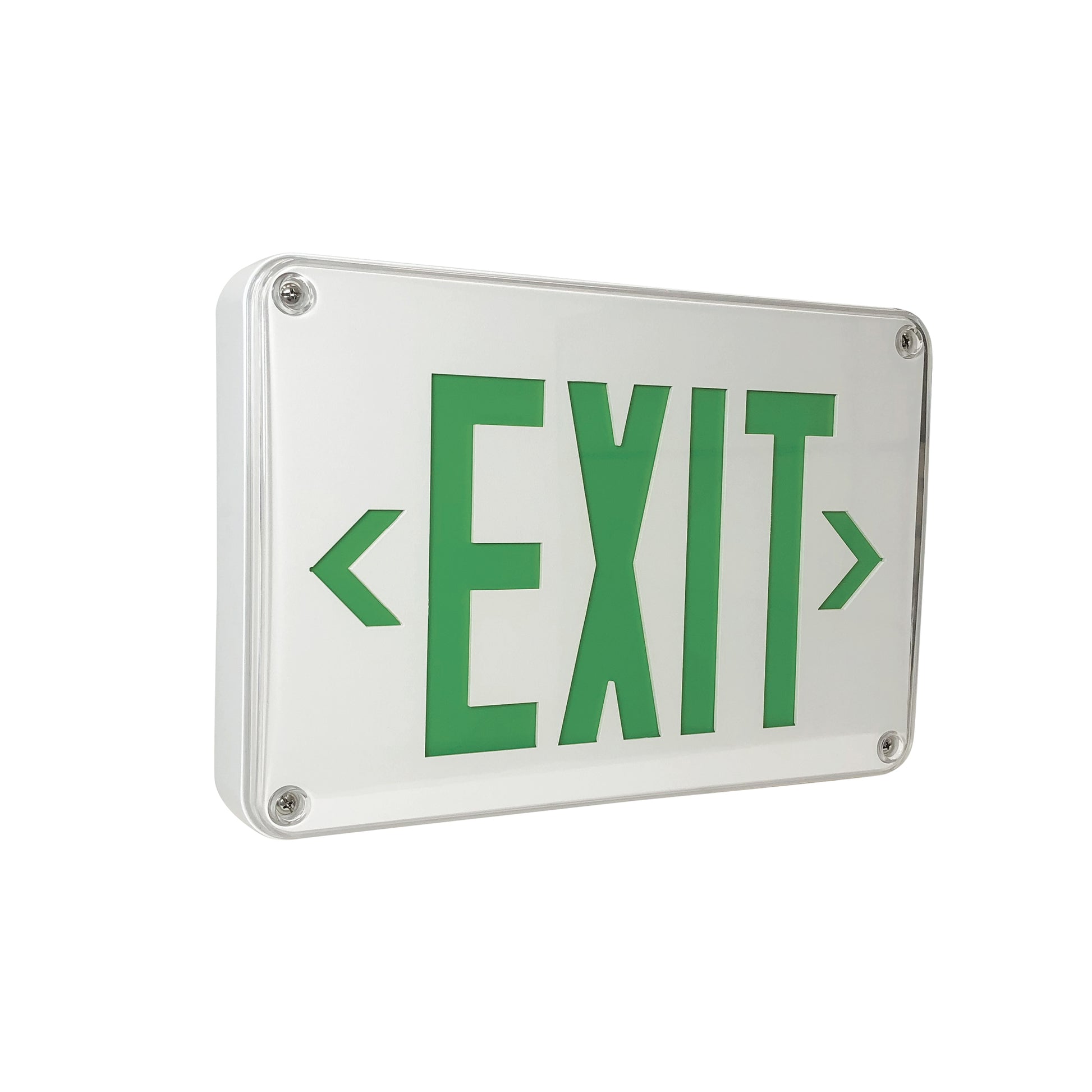

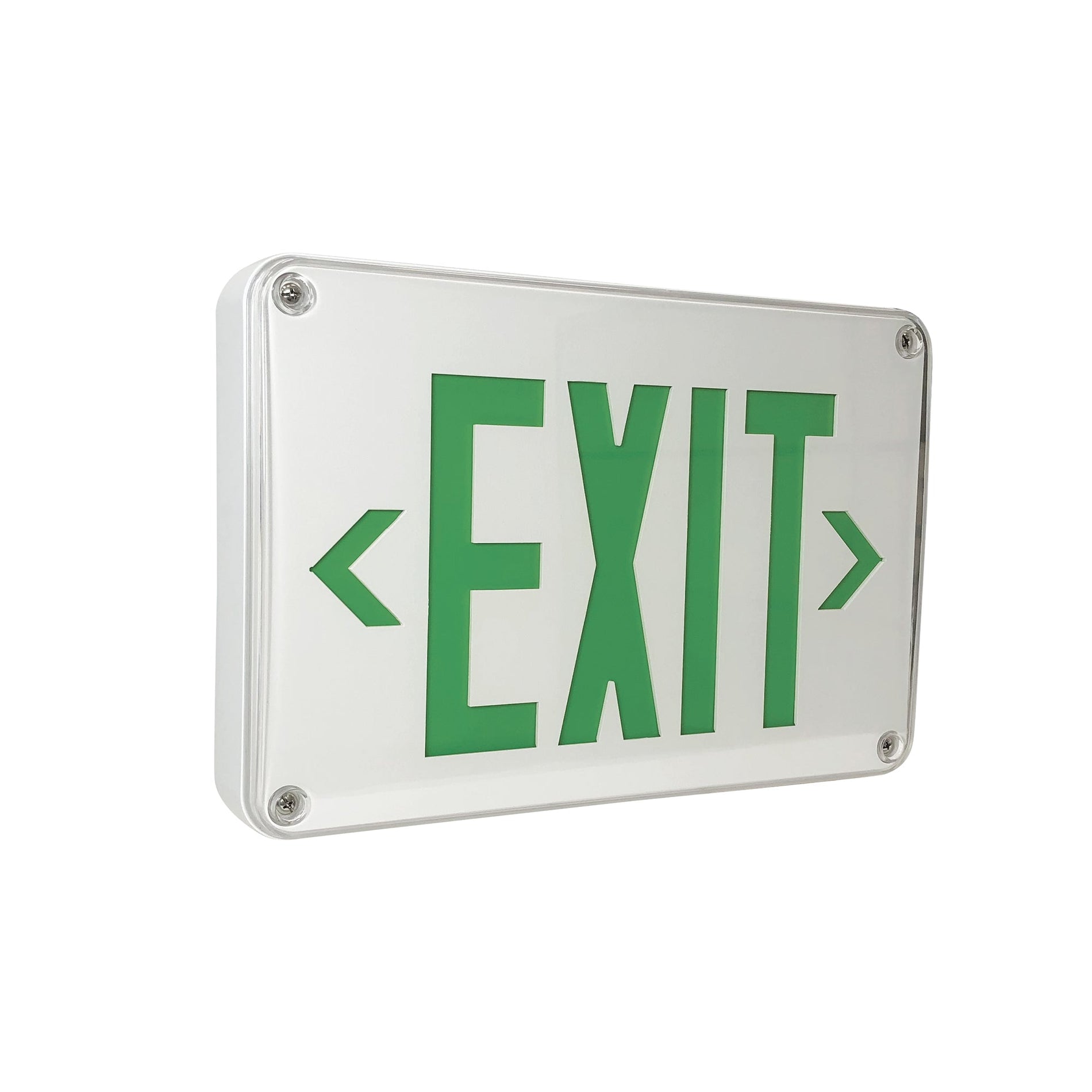

LED Self-Diagnostic Wet/Cold Location Exit Sign w/ Battery Backup, White Housing w/ 6" Green Letters
LED exit sign with 6" green letters and white housing; battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur. Battery Backup. Cold Weather Option. Input Voltage: 120/277VAC Wattage: 2.4W Finish: White Face: Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" Green letters with 3/4" stroke and field selectable directional chevrons included. Self Diagnostic: During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored. Mounting: Wall, side, or ceilling mount. All mounting hardware included Cold Weather Option: Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C. Listing: cULus Listed for Wet Locations, UL 924, Title 20, NFPA 70, NFPA 101
Product details
- Manufacturer SKU: NX-617-LED/G-CC
- UPC: 732180706396
- Base item: NX-617-LED
- Product family: EXIT
- Product line: 5010
- Category: Exit / Emergency
- Finish: White
- Wattage: 2.4W
- Safety listing: UL 924, NFPA 70 / NFPA-101, Title 20
- Location rating: Wet
- Country of origin: CHN
Dimensions and packaging
- Estimated shipping weight: 7 lb
- Master carton quantity: 1
Compliance and technical data
- Contains battery: Yes
- Battery type: Nickel- Cadmium
- Battery quantity: 1
Resources
Product Dossier
- SKU
- NX-617-LED/G-CC
- Brand
- Nora Lighting
- Fixture Type
- Exit / Emergency
- Price
- $170.10
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
LED exit sign with 6" green letters and white housing; battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur. Battery Backup. Cold Weather Option. Input Voltage: 120/277VAC Wattage: 2.4W Finish: White Face: Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" Green letters with 3/4" stroke and field selectable directional chevrons included. Self Diagnostic: During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored. Mounting: Wall, side, or ceilling mount. All mounting hardware included Cold Weather Option: Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C. Listing: cULus Listed for Wet Locations, UL 924, Title 20, NFPA 70, NFPA 101
Product details
- Manufacturer SKU: NX-617-LED/G-CC
- UPC: 732180706396
- Base item: NX-617-LED
- Product family: EXIT
- Product line: 5010
- Category: Exit / Emergency
- Finish: White
- Wattage: 2.4W
- Safety listing: UL 924, NFPA 70 / NFPA-101, Title 20
- Location rating: Wet
- Country of origin: CHN
Dimensions and packaging
- Estimated shipping weight: 7 lb
- Master carton quantity: 1
Compliance and technical data
- Contains battery: Yes
- Battery type: Nickel- Cadmium
- Battery quantity: 1
