Nora Lighting

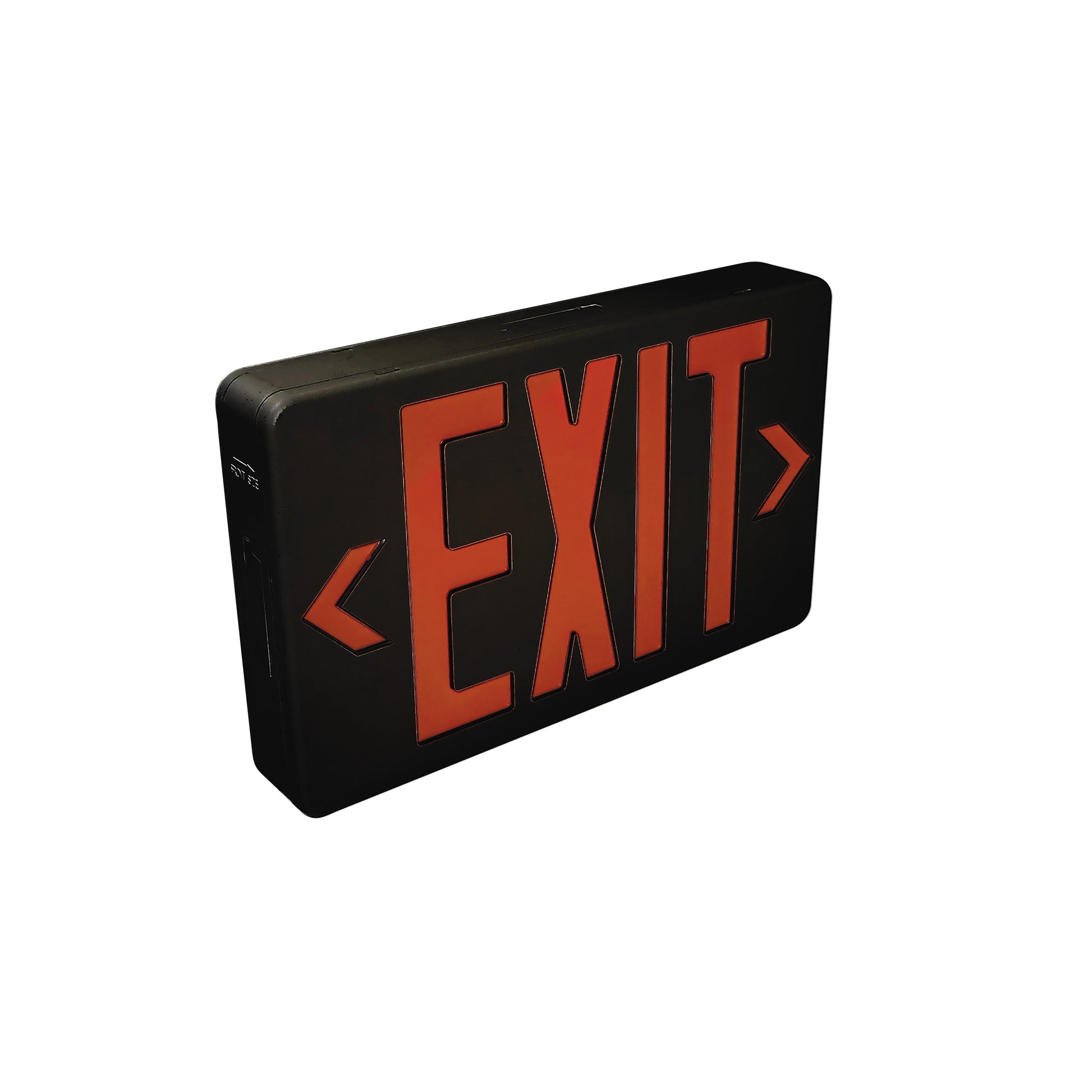

Thermoplastic LED Dual Color Exit Sign, Selectable Red or Green Letters with Matched Color Diffuser, Black Housing
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must. LED Source: Internal switch changes the color of LEDs from Green to Red Colored Filters: Green and Red Filters are included with each sign Face: Double Face and Blank Face included Finish: Black Mounting: Wall, Side, or Ceiling Mounted. Mounting hardware and canopy included Input Voltage: 120V/277V input Battery: 3.6V 300mAh NiCad (nickel-cadmium) Testing: The manual test switch and indicator light are located on the bottom of the sign Accessories: NEG-60 (Wet Location Enclosure for Wall Mounting only) Listings: UL Listed for Damp Locations NFPA Certified to the energy efficiency standards of California Title 20
Product details
- Manufacturer SKU: NX-603D-LED/B
- UPC: 732180706587
- Base item: NX-603D-LED
- Product family: EXIT
- Product line: 5010
- Category: Exit / Emergency
- Finish: Black
- Wattage: 3W
- Safety listing: UL 924, NFPA, Title 20
- Location rating: Damp
- Country of origin: CHN
Dimensions and packaging
- Product length: 11.75 in
- Product width: 7.25 in
- Product height: 2.125 in
- Product weight: 2.15 lb
- Estimated shipping weight: 4 lb
- Individual package length: 12.125 in
- Individual package width: 7.5 in
- Individual package height: 2.375 in
- Individual package weight: 2.35 lb
- Master carton quantity: 12
- Master carton length: 16 in
- Master carton width: 14 in
- Master carton height: 17 in
- Master carton weight: 30 lb
Compliance and technical data
- Contains battery: Yes
- Battery type: Nickel- Cadmium
- Battery quantity: 1
Resources
Product Dossier
- SKU
- NX-603D-LED/B
- Brand
- Nora Lighting
- Fixture Type
- Exit / Emergency
- Price
- $48.51
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must. LED Source: Internal switch changes the color of LEDs from Green to Red Colored Filters: Green and Red Filters are included with each sign Face: Double Face and Blank Face included Finish: Black Mounting: Wall, Side, or Ceiling Mounted. Mounting hardware and canopy included Input Voltage: 120V/277V input Battery: 3.6V 300mAh NiCad (nickel-cadmium) Testing: The manual test switch and indicator light are located on the bottom of the sign Accessories: NEG-60 (Wet Location Enclosure for Wall Mounting only) Listings: UL Listed for Damp Locations NFPA Certified to the energy efficiency standards of California Title 20
Product details
- Manufacturer SKU: NX-603D-LED/B
- UPC: 732180706587
- Base item: NX-603D-LED
- Product family: EXIT
- Product line: 5010
- Category: Exit / Emergency
- Finish: Black
- Wattage: 3W
- Safety listing: UL 924, NFPA, Title 20
- Location rating: Damp
- Country of origin: CHN
Dimensions and packaging
- Product length: 11.75 in
- Product width: 7.25 in
- Product height: 2.125 in
- Product weight: 2.15 lb
- Estimated shipping weight: 4 lb
- Individual package length: 12.125 in
- Individual package width: 7.5 in
- Individual package height: 2.375 in
- Individual package weight: 2.35 lb
- Master carton quantity: 12
- Master carton length: 16 in
- Master carton width: 14 in
- Master carton height: 17 in
- Master carton weight: 30 lb
Compliance and technical data
- Contains battery: Yes
- Battery type: Nickel- Cadmium
- Battery quantity: 1
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
