Nora Lighting

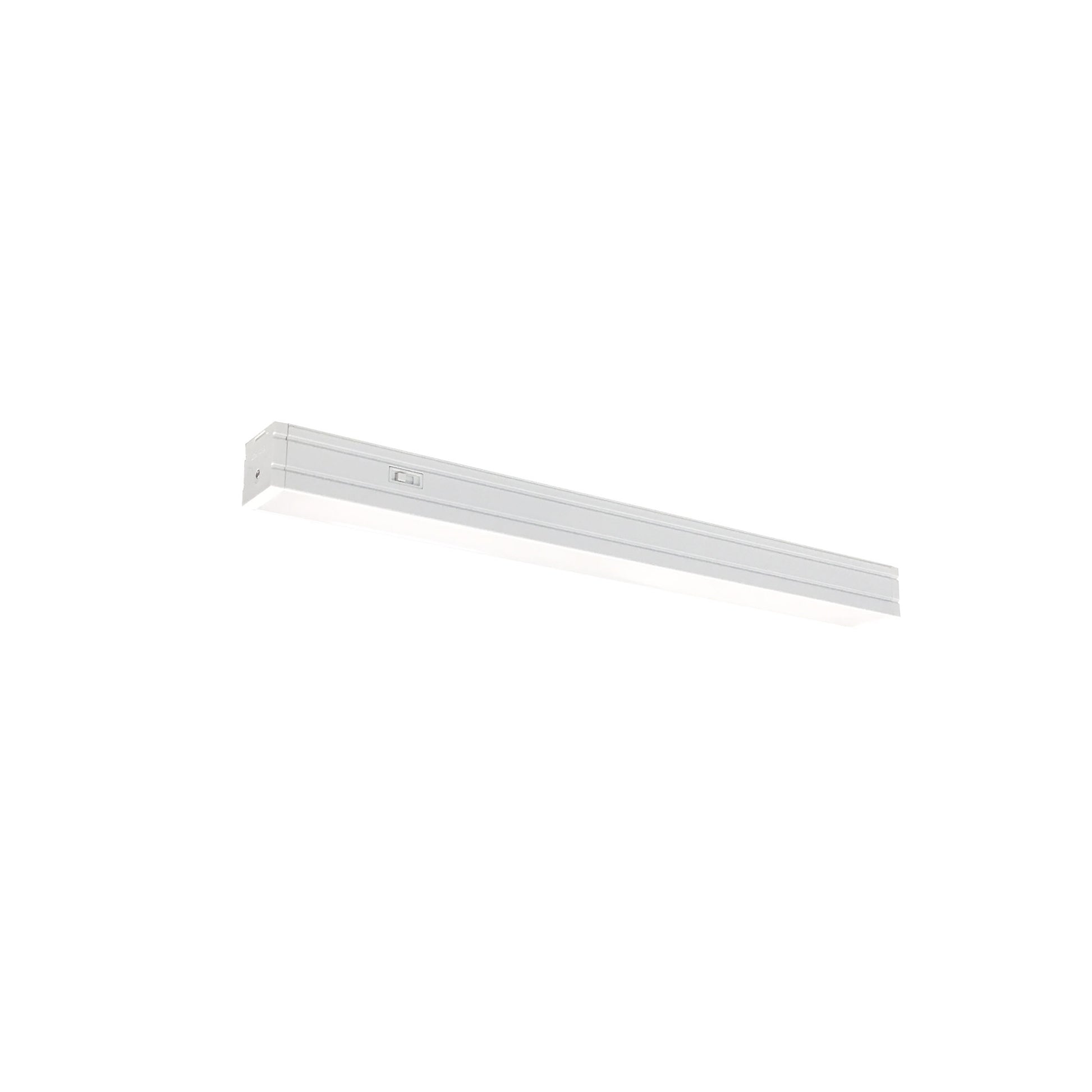

16" Bravo FROST LED Linear with Selectable CCT (30K/35K/40K), White Finish
120V Bravo FROST LED luminaires are a slim profile with frosted lens to eliminate LED diode image. Each fixture includes two 90° adjustable mounting brackets (NUA-909) and end-to-end connector (NUA-903). Length: 16" Input Voltage: 120V Lumens / Wattage: 850lm per ft. / 13W Color Temperature: Selectable CCT (3000K/3500K/4000K) Dimming: ELV Finish: White Maximum Run Length: 270W max. Included: (2) Adjustable mounting brackets and (1) end-to-end connector
Product details
- Manufacturer SKU: NUDTW-9816/W
- UPC: 732180019915
- Base item: NUDTW-9816
- Product family: Bravo FROST
- Product line: LE23
- Category: Accent / Undercabinet
- Finish: White
- Lumen output: 850lm per ft.
- Wattage: 13W
- Color temperature: Selectable CCT (3000K / 3500K / 4000K)
- CRI: 90
- Safety listing: cETLus
- Location rating: Dry
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 16.5 in
- Product width: 1.125 in
- Product height: 1 in
- Product weight: 0.6 lb
- Estimated shipping weight: 2 lb
- Individual package length: 19.75 in
- Individual package width: 1.5 in
- Individual package height: 1.5 in
- Individual package weight: 0.95 lb
- Master carton quantity: 30
- Master carton length: 21 in
- Master carton width: 17 in
- Master carton height: 6 in
- Master carton weight: 30 lb
Compliance and technical data
- CEC item number: NUDTW-9816/W
- CEC substitute item: NUDTW-9824/W
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NUDTW-9816/W
- Brand
- Nora Lighting
- Fixture Type
- Accent / Undercabinet
- Price
- $91.98
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
120V Bravo FROST LED luminaires are a slim profile with frosted lens to eliminate LED diode image. Each fixture includes two 90° adjustable mounting brackets (NUA-909) and end-to-end connector (NUA-903). Length: 16" Input Voltage: 120V Lumens / Wattage: 850lm per ft. / 13W Color Temperature: Selectable CCT (3000K/3500K/4000K) Dimming: ELV Finish: White Maximum Run Length: 270W max. Included: (2) Adjustable mounting brackets and (1) end-to-end connector
