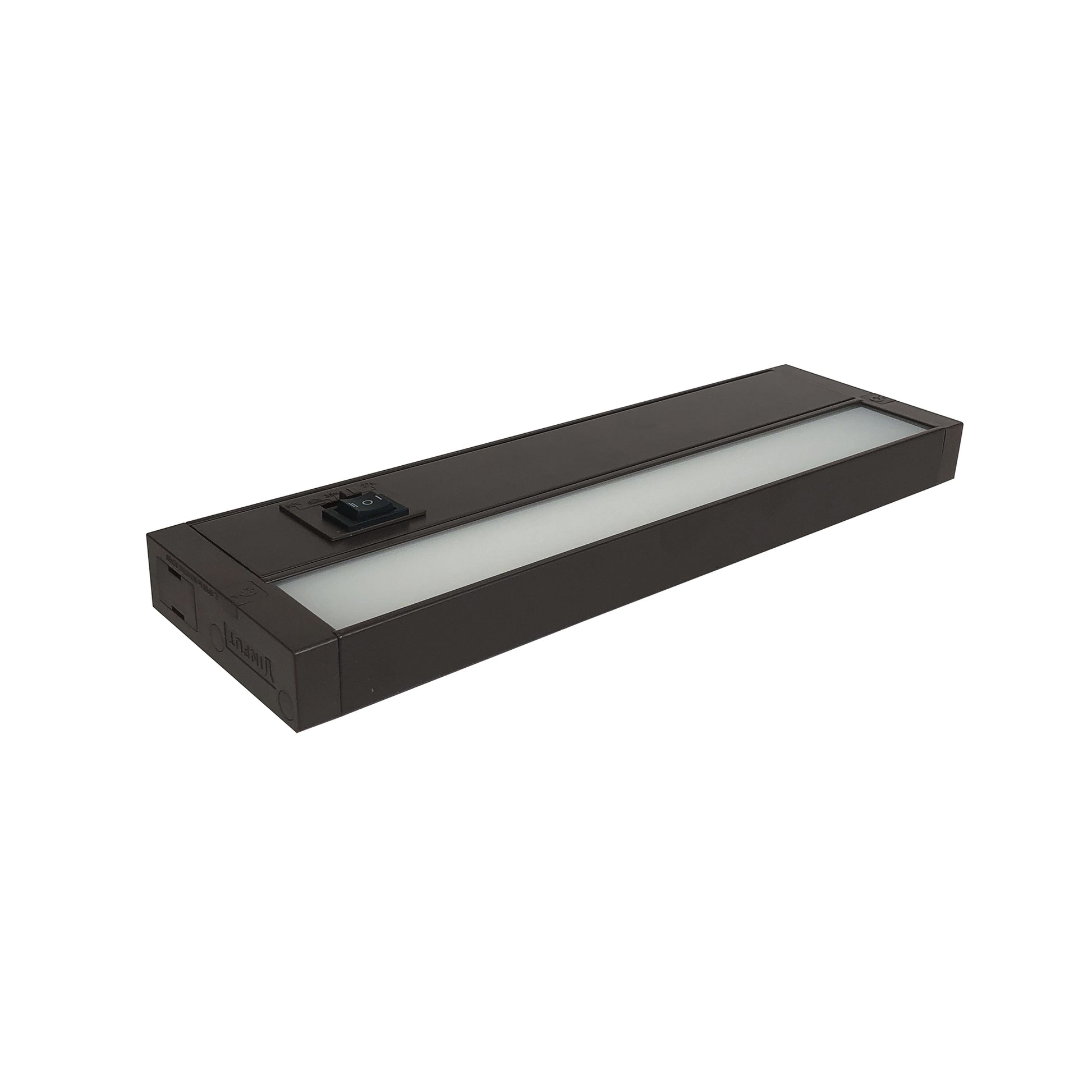

Nora Lighting 22" LEDUR Under Cabinet with Selectable CCT (27K/30K/35K/40K/50K), Bronze Finish – NUDTW-8822/23345BZ
120V LED under cabinet luminaires include two switches to change the color temperature and On/Off switch. Each fixture includes five color temperature options and are linkable up to 400W. Luminaires produces an average of 475 lumens per foot. LEDUR uniform reflectance is excellent when used under cabinet over granite, polished stone or any reflective surface, additionally it is excellent in retail display lighting where diode image might distract from display merchandise.
Length: 22"
Input Voltage: 120V
Lumens / Wattage: 475lm per ft. / 11W
Color Temperature: Selectable CCT (27K/30K/35K/40K/50K)
Color Rendering Index: 90+ CRI
Dimming: Triac or ELV
Finish: Bronze
Maximum Run Length: 400W
Included: Mounting Hardware, End-to-End Connector (NUA-803), and die-cast cable clamp
Product details
- Manufacturer SKU: NUDTW-8822/23345BZ
- UPC: 732180229116
- Base item: NUDTW-8822
- Product family: LEDUR
- Product line: LE67
- Category: Accent / Undercabinet
- Finish: Bronze
- Lumen output: Selectable Lumens (275lm or 475lm per ft.)
- Wattage: 11W
- Color temperature: Selectable CCT (27K / 30K / 35K / 40K / 50K)
- CRI: 90
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 22.25 in
- Product width: 3.5 in
- Product height: 1 in
- Product weight: 1.35 lb
- Estimated shipping weight: 3 lb
- Individual package length: 23.5 in
- Individual package width: 4 in
- Individual package height: 1.5 in
- Individual package weight: 1.55 lb
- Master carton quantity: 6
- Master carton length: 24 in
- Master carton width: 10 in
- Master carton height: 5 in
- Master carton weight: 10 lb
Compliance and technical data
- CEC item number: NUDTW-8822/23345***
- CEC substitute item: NUDTW-8822/23345WH
- CEC database: Yes
- Contains battery: No
