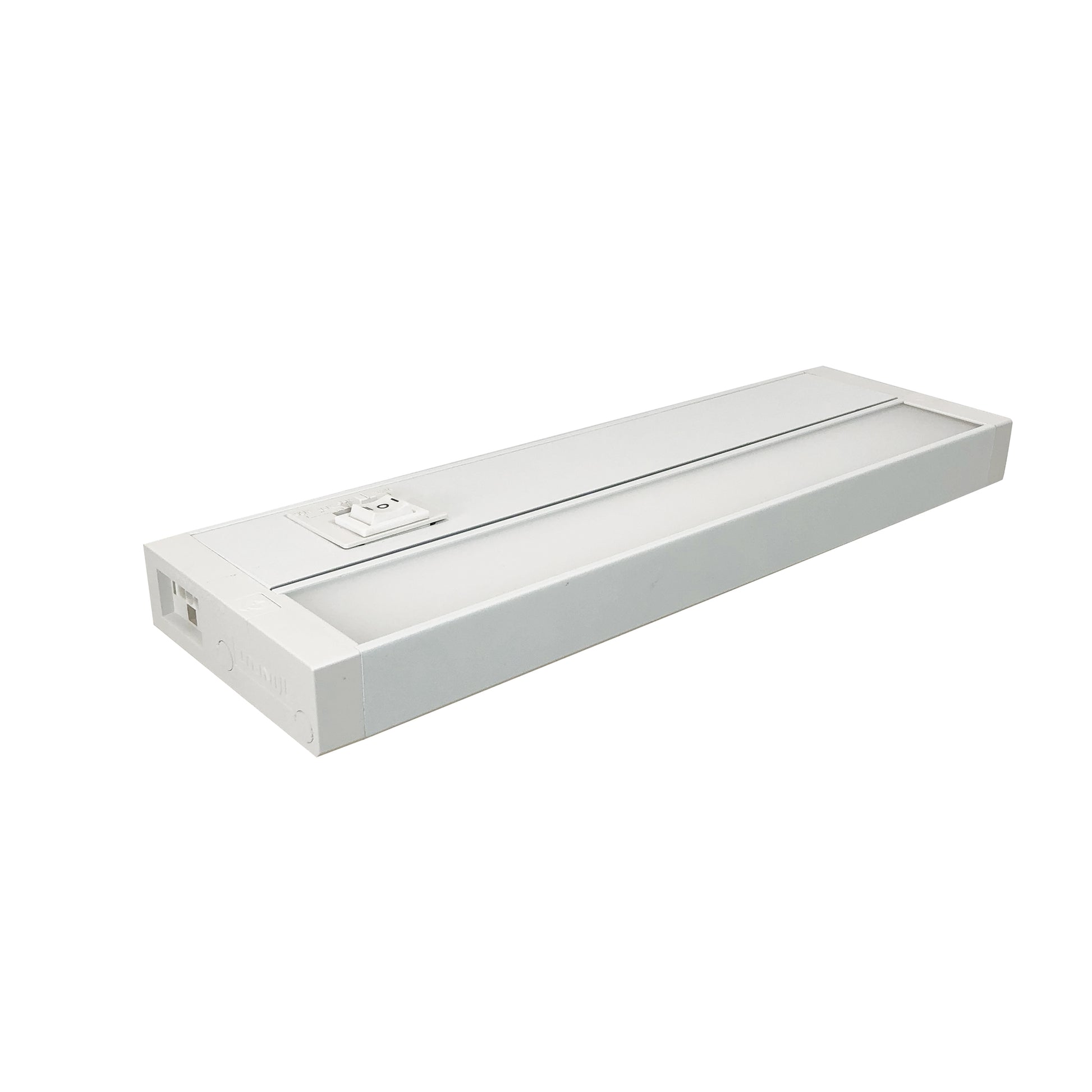

Nora NUDTW-8818/23345WH 18 inch LEDUR Under Cabinet with Selectable CCT (27K/30K/35K/40K/50K), White Finish
120V LED under cabinet luminaires include two switches to change the color temperature and On/Off switch. Each fixture includes five color temperature options and are linkable up to 400W. Luminaires produces an average of 475 lumens per foot. LEDUR uniform reflectance is excellent when used under cabinet over granite, polished stone or any reflective surface, additionally it is excellent in retail display lighting where diode image might distract from display merchandise.
Length: 18"
Input Voltage: 120V
Lumens / Wattage: 475lm per ft. / 9W
Color Temperature: Selectable CCT (27K/30K/35K/40K/50K)
Color Rendering Index: 90+ CRI
Dimming: Triac or ELV
Finish: White
Maximum Run Length: 400W
Included: Mounting Hardware, End-to-End Connector (NUA-803), and die-cast cable clamp
Product Dossier
- SKU
- NUDTW-8818/23345WH
- Brand
- Nora Lighting
- Fixture Type
- LEDUR
- Price
- $22.95
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
120V LED under cabinet luminaires include two switches to change the color temperature and On/Off switch. Each fixture includes five color temperature options and are linkable up to 400W. Luminaires produces an average of 475 lumens per foot. LEDUR uniform reflectance is excellent when used under cabinet over granite, polished stone or any reflective surface, additionally it is excellent in retail display lighting where diode image might distract from display merchandise.
Length: 18"
Input Voltage: 120V
Lumens / Wattage: 475lm per ft. / 9W
Color Temperature: Selectable CCT (27K/30K/35K/40K/50K)
Color Rendering Index: 90+ CRI
Dimming: Triac or ELV
Finish: White
Maximum Run Length: 400W
Included: Mounting Hardware, End-to-End Connector (NUA-803), and die-cast cable clamp
