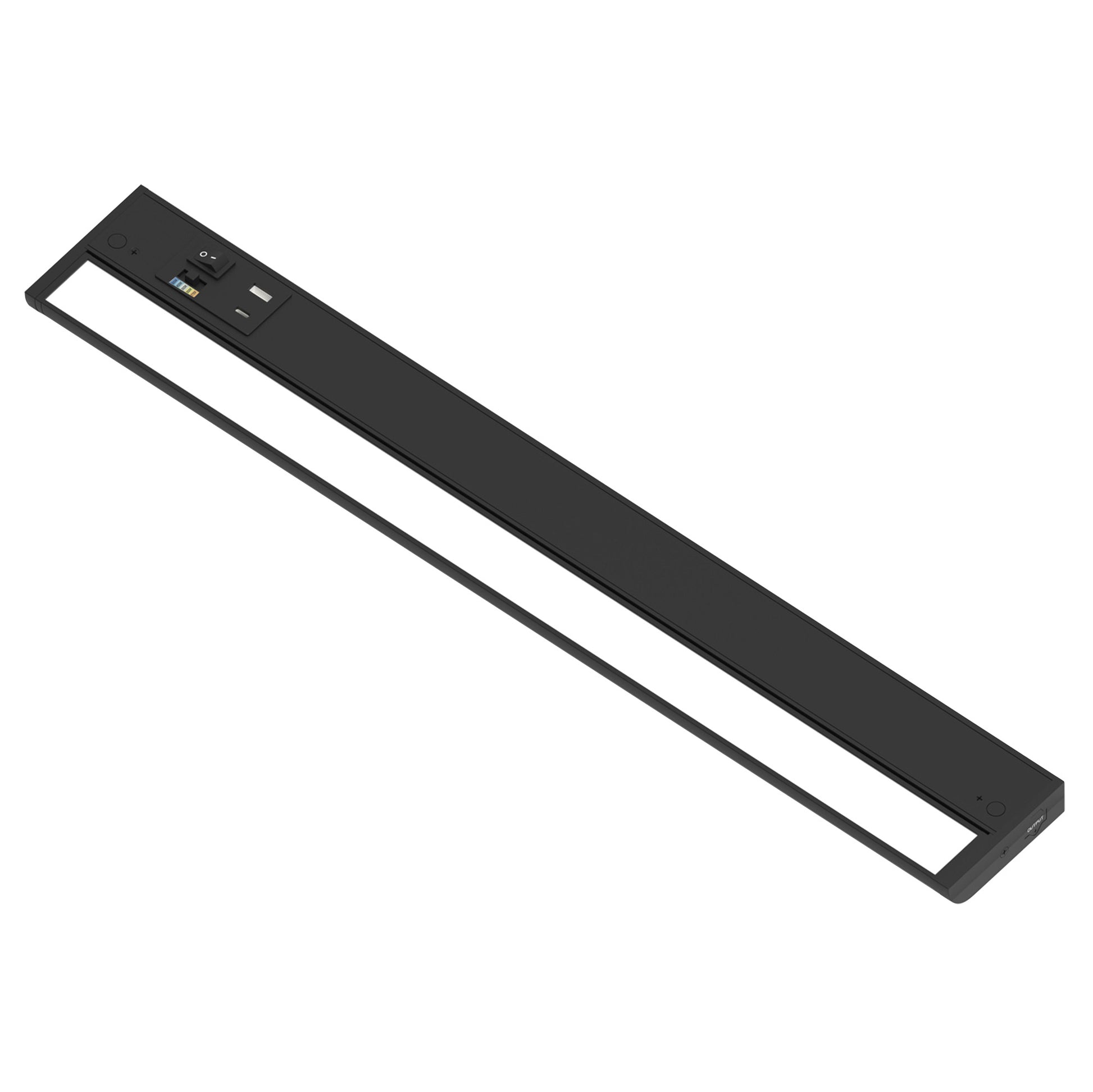

24" 120V Adjustable LEDUR Under Cabinet with Selectable CCT & USB Ports, Black Finish
120V Adjustable LED under cabinet luminaires include two switches to change the color temperature and On/Off switch. Each fixture includes a USB-A port, USB-C port, and five color temperature options. Luminaires produces an average of 600 lumens per foot. LEDUR uniform reflectance is excellent when used under cabinet over granite, polished stone or any reflective surface, additionally it is excellent in retail display lighting where diode image might distract from display merchandise. Adjustability: ± 35° Length: 24" Input Voltage: 120V Lumens / Wattage: 600lm per ft. / 15W Color Temperature: Selectable CCT (27K/30K/35K/40K/50K) Color Rendering Index: 90+ CRI Finish: Black Maximum Run Length: 150W max. Included: Mounting Hardware, End-to-End Connector (NUDA-END), and die-cast cable clamp
Product details
- Manufacturer SKU: NUDA-24TWB/USB
- UPC: 732180229000
- Base item: NUDA-24TW
- Product family: 120V Adjustable LEDUR
- Product line: LE67
- Category: Accent / Undercabinet
- Finish: Black
- Lumen output: 600lm per ft.
- Wattage: 15W
- Color temperature: Selectable CCT (27K / 30K / 35K / 40K / 50K)
- CRI: 90
- Safety listing: cETLus
- Location rating: Damp
- Country of origin: THA
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 24.125 in
- Product width: 3.75 in
- Product height: 1.25 in
- Product weight: 1.8 lb
- Estimated shipping weight: 3 lb
- Individual package length: 25.875 in
- Individual package width: 4.125 in
- Individual package height: 1.625 in
- Individual package weight: 2 lb
- Master carton quantity: 6
- Master carton length: 27 in
- Master carton width: 9 in
- Master carton height: 6 in
- Master carton weight: 13 lb
Compliance and technical data
- CEC item number: NUDA-24TW***/***
- CEC substitute item: NUDA-24TWMPW/USB
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NUDA-24TWB/USB
- Brand
- Nora Lighting
- Fixture Type
- Accent / Undercabinet
- Price
- $90.90
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
120V Adjustable LED under cabinet luminaires include two switches to change the color temperature and On/Off switch. Each fixture includes a USB-A port, USB-C port, and five color temperature options. Luminaires produces an average of 600 lumens per foot. LEDUR uniform reflectance is excellent when used under cabinet over granite, polished stone or any reflective surface, additionally it is excellent in retail display lighting where diode image might distract from display merchandise. Adjustability: ± 35° Length: 24" Input Voltage: 120V Lumens / Wattage: 600lm per ft. / 15W Color Temperature: Selectable CCT (27K/30K/35K/40K/50K) Color Rendering Index: 90+ CRI Finish: Black Maximum Run Length: 150W max. Included: Mounting Hardware, End-to-End Connector (NUDA-END), and die-cast cable clamp
Product details
- Manufacturer SKU: NUDA-24TWB/USB
- UPC: 732180229000
- Base item: NUDA-24TW
- Product family: 120V Adjustable LEDUR
- Product line: LE67
- Category: Accent / Undercabinet
- Finish: Black
- Lumen output: 600lm per ft.
- Wattage: 15W
- Color temperature: Selectable CCT (27K / 30K / 35K / 40K / 50K)
- CRI: 90
- Safety listing: cETLus
- Location rating: Damp
- Country of origin: THA
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 24.125 in
- Product width: 3.75 in
- Product height: 1.25 in
- Product weight: 1.8 lb
- Estimated shipping weight: 3 lb
- Individual package length: 25.875 in
- Individual package width: 4.125 in
- Individual package height: 1.625 in
- Individual package weight: 2 lb
- Master carton quantity: 6
- Master carton length: 27 in
- Master carton width: 9 in
- Master carton height: 6 in
- Master carton weight: 13 lb
Compliance and technical data
- CEC item number: NUDA-24TW***/***
- CEC substitute item: NUDA-24TWMPW/USB
- CEC database: Yes
- Contains battery: No
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
