Nora Lighting

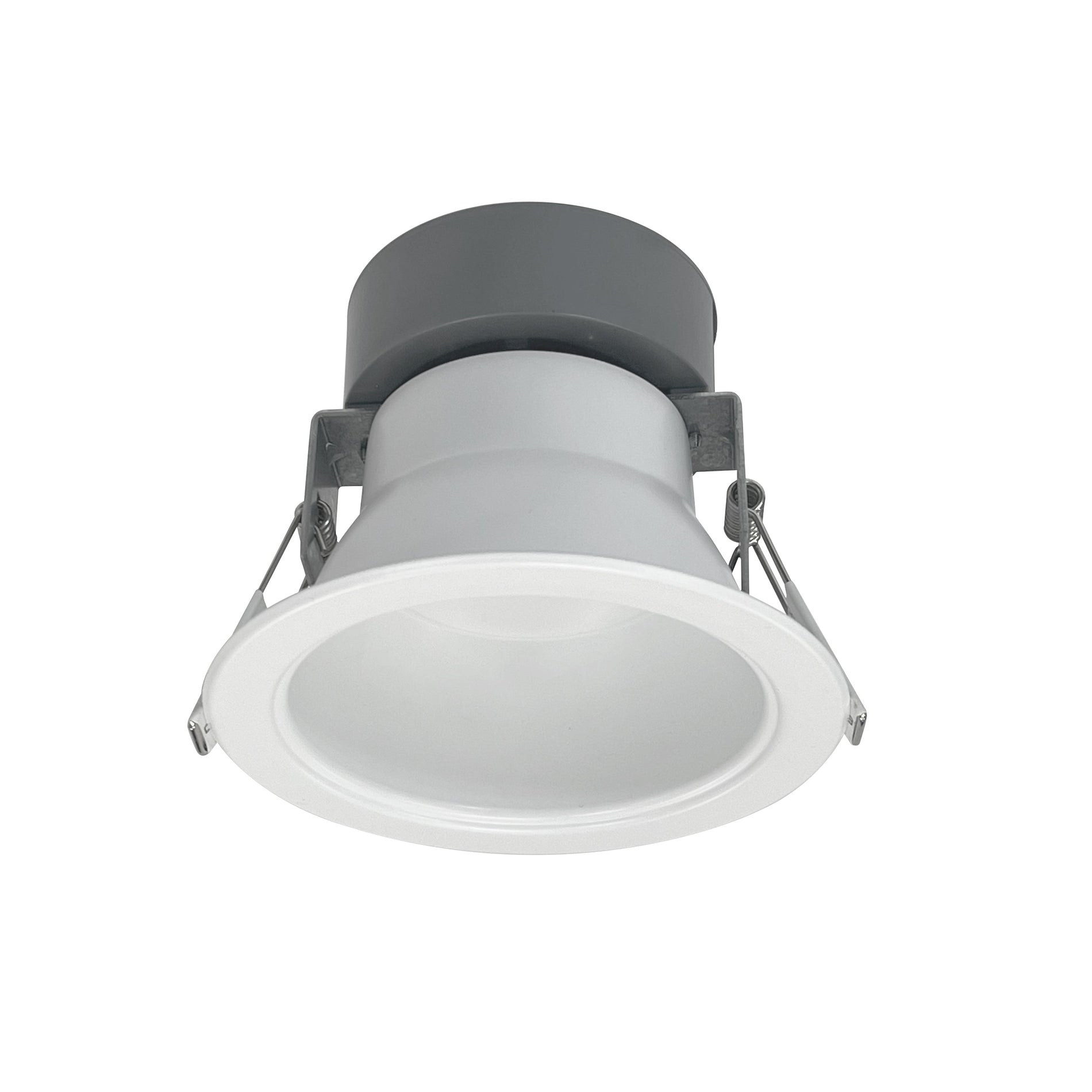

4" Quartz Round LED Can-less Downlight with Selectable Lumens & CCT, White Finish
4" Quartz luminaires are architectural and commercial-grade LED high-lumen downlights. Each luminaire includes two tunable switches: Selectable Lumens allows the end user to determine the wattage input, and Selectable CCT allows changing the color temperature appearance. Downlights include two tension steel spring clips, which allow the luminaires to be installed without any frame-in or housing for easy installation. Rating: IC Input Voltage: 120-277VAC Lumens / Wattage: Selectable Lumens (800lm / 7W; 950lm / 9W; 1250lm / 12W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Dimming: 0-10V Finish: White Accessories: New construction frame-in (NQZ2-4R-F) or Reflector inserts (NQZ-41REFL) Emergency: Remote emergency battery ordered separately (NEPK-20LEDUNV) Listing: cETLus Listed for Wet Locations
Product details
- Manufacturer SKU: NQZ2-41TWTW-MPW
- UPC: 732180379606
- Base item: NQZ2-41TWTW
- Product family: Quartz
- Product line: LE80
- Category: Recessed
- Finish: White
- Lumen output: Selectable Lumens (800lm / 950lm / 1250lm)
- Wattage: Selectable Wattage (7W / 9W / 12W)
- Color temperature: Selectable CCT (3000K / 3500K / 4000K)
- CRI: 90
- Safety listing: cETLus
- Location rating: Wet
- Country of origin: CHN
- Certifications: ENERGY STAR: Yes, Title 24: Yes
Dimensions and packaging
- Product length: 5.75 in
- Product width: 5.75 in
- Product height: 4.5 in
- Product weight: 1.3 lb
- Estimated shipping weight: 2 lb
- Individual package length: 7.875 in
- Individual package width: 7.875 in
- Individual package height: 5 in
- Individual package weight: 1.65 lb
- Master carton quantity: 8
- Master carton length: 17 in
- Master carton width: 17 in
- Master carton height: 12 in
- Master carton weight: 15 lb
Compliance and technical data
- CEC item number: NQZ2-41TWTW-***
- CEC substitute item: NQZ2-61TWTW-MPW
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NQZ2-41TWTW-MPW
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $55.93
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" Quartz luminaires are architectural and commercial-grade LED high-lumen downlights. Each luminaire includes two tunable switches: Selectable Lumens allows the end user to determine the wattage input, and Selectable CCT allows changing the color temperature appearance. Downlights include two tension steel spring clips, which allow the luminaires to be installed without any frame-in or housing for easy installation. Rating: IC Input Voltage: 120-277VAC Lumens / Wattage: Selectable Lumens (800lm / 7W; 950lm / 9W; 1250lm / 12W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Dimming: 0-10V Finish: White Accessories: New construction frame-in (NQZ2-4R-F) or Reflector inserts (NQZ-41REFL) Emergency: Remote emergency battery ordered separately (NEPK-20LEDUNV) Listing: cETLus Listed for Wet Locations
