Nora Lighting

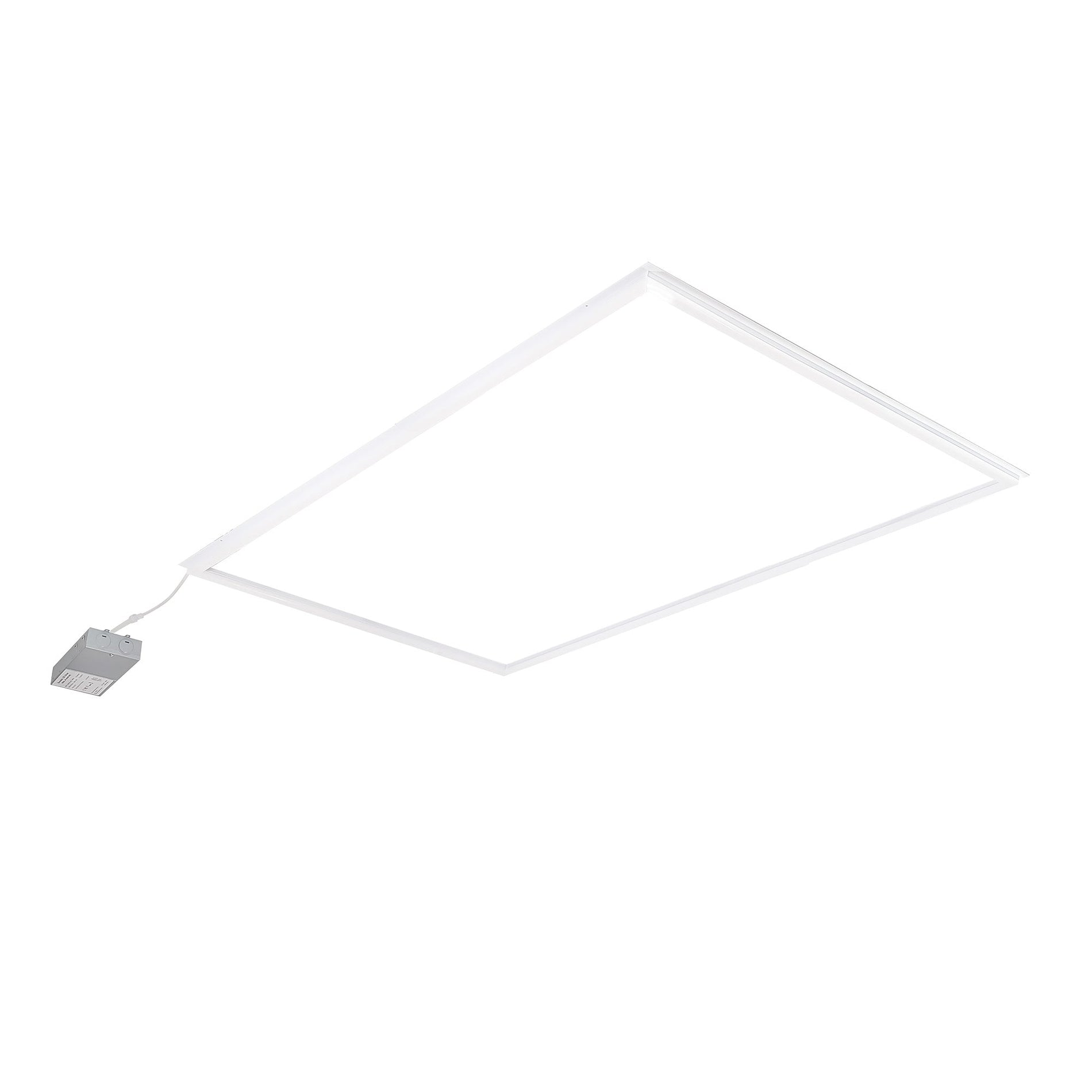

2'x4' LED Frame Light with Selectable Lumens & CCT, White Finish
LED Frame lights are a perimeter fixture for a standard 2' x 4' ceiling grid. Remote driver includes two Selectable Switches to change the color temperature and brightness. No cutting is required and ceiling tile sits inside the frame light. Input Voltage: 120-277VAC Lumens: Selectable Lumens (5850lm to 6950lm) Wattage: Selectable Wattage (45W to 55W) Color Temperature: Selectable CCT (3500K / 4000K / 5000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: White Listing: cETLus Listed for Damp Locations
Product details
- Manufacturer SKU: NPTPSW-E24/345W
- UPC: 732180409174
- Base item: NPTPSW-E24
- Product family: Frame Light
- Product line: LE73
- Category: Commercial
- Finish: White
- Lumen output: Selectable Lumens (5850lm / 6450lm / 6950lm)
- Wattage: Selectable Wattage (45W / 50W / 55W)
- Color temperature: Selectable CCT (3000K / 3500K / 4000K)
- CRI: 80
- Safety listing: cETLus
- Location rating: Damp
- Country of origin: CHN
- Certifications: DLC Listed: Yes
Dimensions and packaging
- Product length: 47.875 in
- Product width: 23.75 in
- Product height: 0.625 in
- Product weight: 1.7 lb
- Estimated shipping weight: 10 lb
- Individual package length: 49.875 in
- Individual package width: 26.375 in
- Individual package height: 2.25 in
- Individual package weight: 4.7 lb
- Master carton quantity: 2
- Master carton length: 51 in
- Master carton width: 28 in
- Master carton height: 5 in
- Master carton weight: 15 lb
Compliance and technical data
- Contains battery: No
Resources
Product Dossier
- SKU
- NPTPSW-E24/345W
- Brand
- Nora Lighting
- Fixture Type
- Commercial
- Price
- $116.91
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
LED Frame lights are a perimeter fixture for a standard 2' x 4' ceiling grid. Remote driver includes two Selectable Switches to change the color temperature and brightness. No cutting is required and ceiling tile sits inside the frame light. Input Voltage: 120-277VAC Lumens: Selectable Lumens (5850lm to 6950lm) Wattage: Selectable Wattage (45W to 55W) Color Temperature: Selectable CCT (3500K / 4000K / 5000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: White Listing: cETLus Listed for Damp Locations
Product details
- Manufacturer SKU: NPTPSW-E24/345W
- UPC: 732180409174
- Base item: NPTPSW-E24
- Product family: Frame Light
- Product line: LE73
- Category: Commercial
- Finish: White
- Lumen output: Selectable Lumens (5850lm / 6450lm / 6950lm)
- Wattage: Selectable Wattage (45W / 50W / 55W)
- Color temperature: Selectable CCT (3000K / 3500K / 4000K)
- CRI: 80
- Safety listing: cETLus
- Location rating: Damp
- Country of origin: CHN
- Certifications: DLC Listed: Yes
Dimensions and packaging
- Product length: 47.875 in
- Product width: 23.75 in
- Product height: 0.625 in
- Product weight: 1.7 lb
- Estimated shipping weight: 10 lb
- Individual package length: 49.875 in
- Individual package width: 26.375 in
- Individual package height: 2.25 in
- Individual package weight: 4.7 lb
- Master carton quantity: 2
- Master carton length: 51 in
- Master carton width: 28 in
- Master carton height: 5 in
- Master carton weight: 15 lb
Compliance and technical data
- Contains battery: No
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
