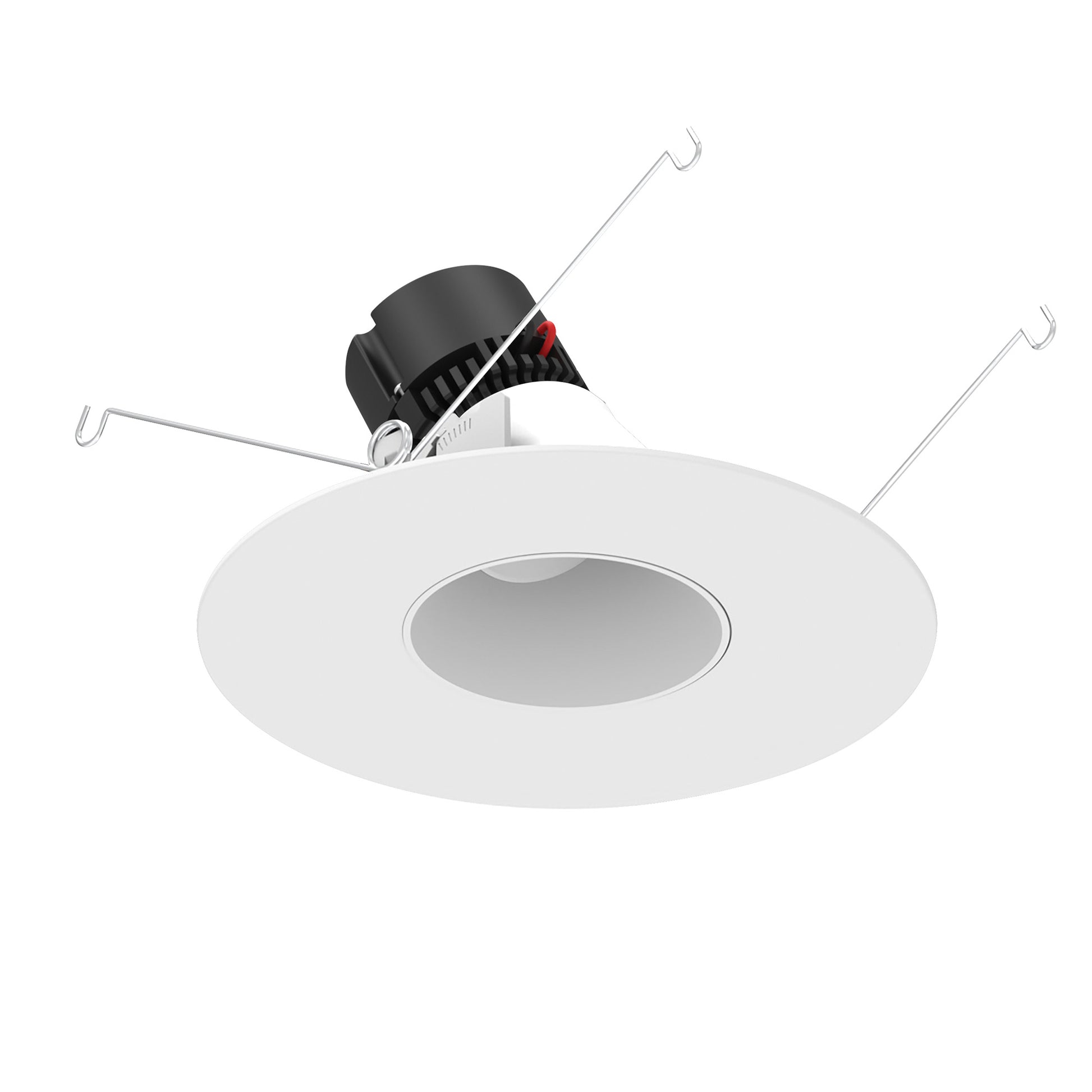

5"/6" Pearl 12V LED Round Adjustable Slot Retrofit, 1000lm / 10W, 3500K, Bright White Reflector / Bright White Flange
5"/6" Pearl low voltage retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The 5"/6" retrofit luminaires deliver over 1000 lumens with a regressed cone construction, which optimizes visual cut-off and adjust up to 30°. Adjustability: 30° Input Voltage: 12VAC Socket: GU5.3 Lumens / Wattage: 1000lm / 10W Color Temperature: 3500K Beam Spread: Three field changeable optics included Dimming: Triac or ELV Finish: Bright White Reflector / Bright White Flange Listing: cULus classified for damp locations
Product details
- Manufacturer SKU: NPRLV-56RSLA35XMPW
- UPC: 732180844920
- Base item: NPRLV-56RSLA
- Product family: Pearl
- Product line: LE92-LV
- Category: Recessed
- Finish: Bright White Reflector / Bright White Flange
- Lumen output: 1000lm
- Wattage: 10W
- Color temperature: 3500K
- CRI: 90
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 7.83 in
- Product width: 7.46 in
- Product height: 4.75 in
- Product weight: 1.29 lb
- Estimated shipping weight: 3 lb
- Individual package length: 8 in
- Individual package width: 7.75 in
- Individual package height: 5.25 in
- Individual package weight: 1.6 lb
- Master carton quantity: 12
- Master carton length: 17 in
- Master carton width: 16 in
- Master carton height: 16 in
- Master carton weight: 21 lb
Compliance and technical data
- CEC item number: NPRLV-4*******
- CEC substitute item: NPRLV-56RSLA30XMPW
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NPRLV-56RSLA35XMPW
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $93.96
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
5"/6" Pearl low voltage retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The 5"/6" retrofit luminaires deliver over 1000 lumens with a regressed cone construction, which optimizes visual cut-off and adjust up to 30°. Adjustability: 30° Input Voltage: 12VAC Socket: GU5.3 Lumens / Wattage: 1000lm / 10W Color Temperature: 3500K Beam Spread: Three field changeable optics included Dimming: Triac or ELV Finish: Bright White Reflector / Bright White Flange Listing: cULus classified for damp locations
Product details
- Manufacturer SKU: NPRLV-56RSLA35XMPW
- UPC: 732180844920
- Base item: NPRLV-56RSLA
- Product family: Pearl
- Product line: LE92-LV
- Category: Recessed
- Finish: Bright White Reflector / Bright White Flange
- Lumen output: 1000lm
- Wattage: 10W
- Color temperature: 3500K
- CRI: 90
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 7.83 in
- Product width: 7.46 in
- Product height: 4.75 in
- Product weight: 1.29 lb
- Estimated shipping weight: 3 lb
- Individual package length: 8 in
- Individual package width: 7.75 in
- Individual package height: 5.25 in
- Individual package weight: 1.6 lb
- Master carton quantity: 12
- Master carton length: 17 in
- Master carton width: 16 in
- Master carton height: 16 in
- Master carton weight: 21 lb
Compliance and technical data
- CEC item number: NPRLV-4*******
- CEC substitute item: NPRLV-56RSLA30XMPW
- CEC database: Yes
- Contains battery: No
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
