Nora Lighting
4" Pearl 12V LED Square Bullnose Retrofit, 750lm / 10W, Comfort Dim, Bronze Finish

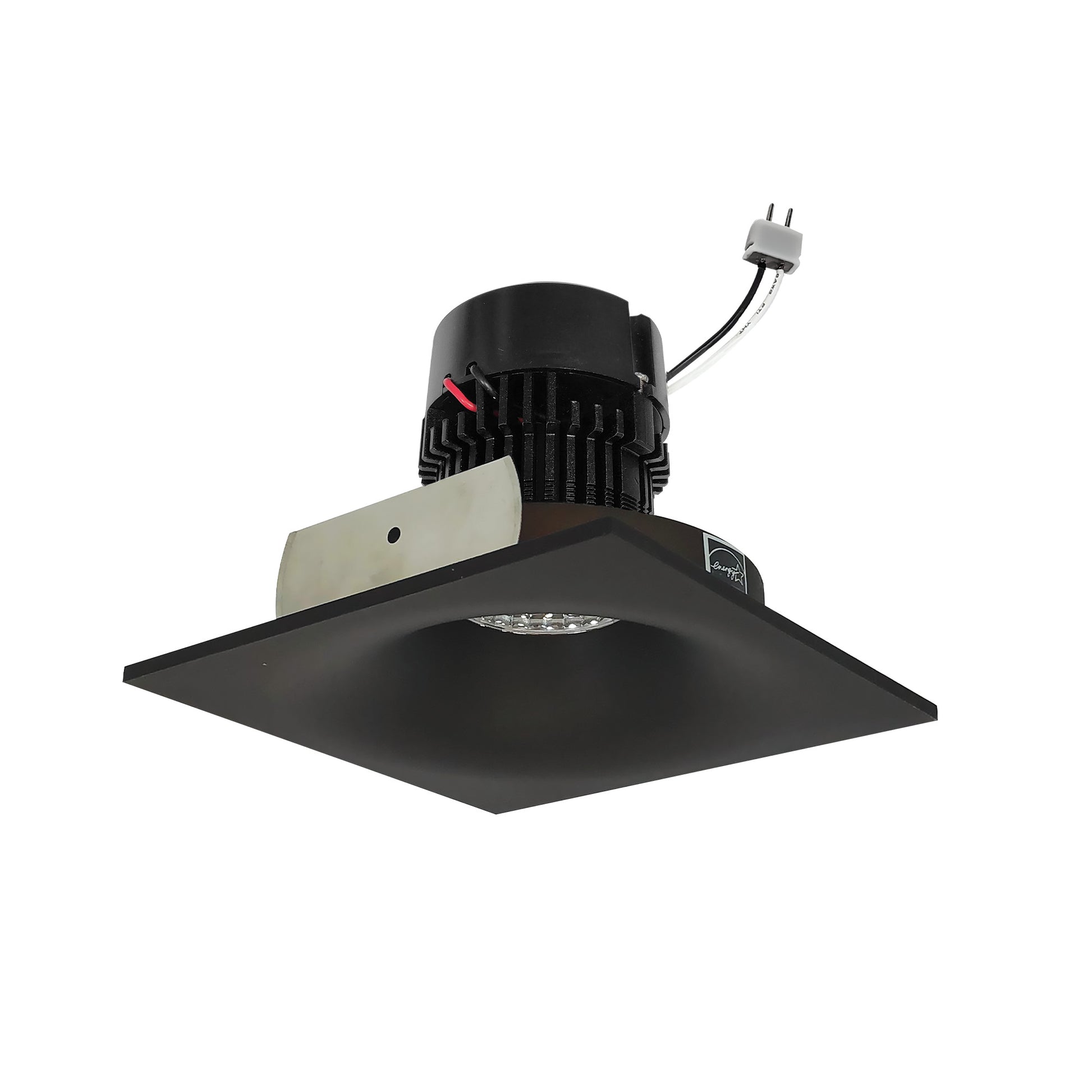

4" Pearl LED Retrofit series is cULus classified for use in existing IC housings manufactured by Nora. The 4" retrofit luminaires deliver over 750 lumens with filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles. Input Voltage: 12VAC Socket: GU5.3 Lumens / Wattage: 750lm / 10W Color Temperature: Comfort Dim (3000K-2000K) Beam Spread: Three field changeable optics included Dimming: Triac or ELV Finish: Bronze Listing: cULus classified for wet locations
Product details
- Manufacturer SKU: NPRLV-4SNBCDXBZ
- UPC: 732180853021
- Base item: NPRLV-4SNB
- Product family: Pearl
- Product line: LE92-LV
- Category: Recessed
- Finish: Bronze
- Lumen output: 750lm
- Wattage: 10W
- Color temperature: Comfort Dim (3000K-2000K)
- CRI: 90
- Safety listing: cULus
- Location rating: Wet
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Master carton quantity: 1
Compliance and technical data
- CEC item number: NPRLV-4*******
- CEC substitute item: NPRLV-4SNB40XBZ
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NPRLV-4SNBCDXBZ
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $103.86
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" Pearl LED Retrofit series is cULus classified for use in existing IC housings manufactured by Nora. The 4" retrofit luminaires deliver over 750 lumens with filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles. Input Voltage: 12VAC Socket: GU5.3 Lumens / Wattage: 750lm / 10W Color Temperature: Comfort Dim (3000K-2000K) Beam Spread: Three field changeable optics included Dimming: Triac or ELV Finish: Bronze Listing: cULus classified for wet locations
Product details
- Manufacturer SKU: NPRLV-4SNBCDXBZ
- UPC: 732180853021
- Base item: NPRLV-4SNB
- Product family: Pearl
- Product line: LE92-LV
- Category: Recessed
- Finish: Bronze
- Lumen output: 750lm
- Wattage: 10W
- Color temperature: Comfort Dim (3000K-2000K)
- CRI: 90
- Safety listing: cULus
- Location rating: Wet
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Master carton quantity: 1
Compliance and technical data
- CEC item number: NPRLV-4*******
- CEC substitute item: NPRLV-4SNB40XBZ
- CEC database: Yes
- Contains battery: No
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
