Nora Lighting

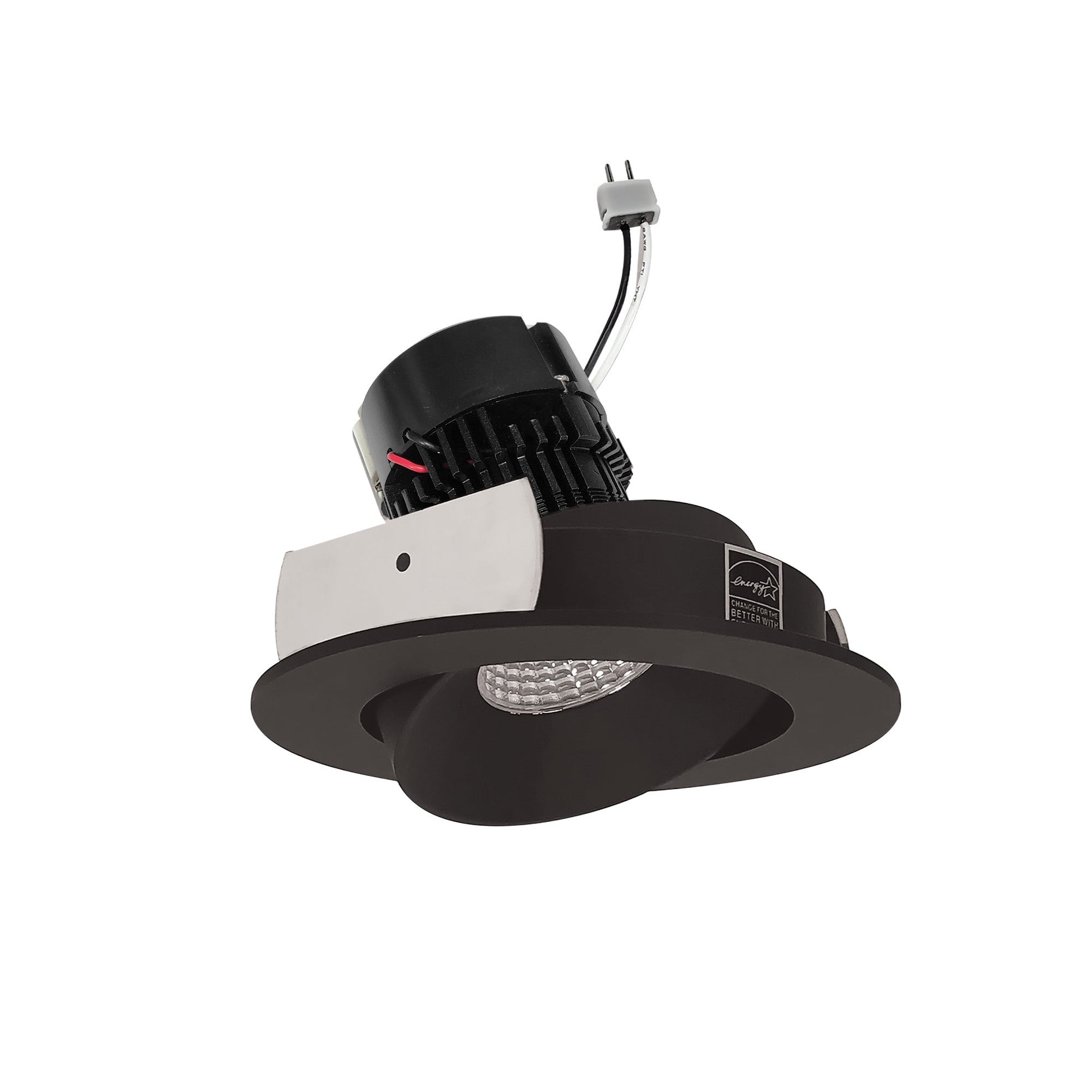

4" Pearl 12V LED Round Adjustable Cone Retrofit, 1250lm / 10W, 4000K, Bronze Reflector / Bronze Flange
4" Pearl LED Retrofit series is cULus classified for use in existing IC housings manufactured by Nora. The 4" retrofit luminaires deliver over 1250 lumens with die-cast adjustable cone for optimal visual cut-off and adjustability to aim the light source in desired direction. Adjustability: 35° Input Voltage: 12VAC Socket: GU5.3 Lumens / Wattage: 1250lm / 10W Color Temperature: 4000K Beam Spread: Three field changeable optics included Dimming: Triac or ELV Finish: Bronze Reflector / Bronze Flange Listing: cULus classified for damp locations
Product details
- Manufacturer SKU: NPRLV-4RC40XBZ
- UPC: 732180850303
- Base item: NPRLV-4RC
- Product family: Pearl
- Product line: LE92-LV
- Category: Recessed
- Finish: Bronze Reflector / Bronze Flange
- Lumen output: 1250lm
- Wattage: 10W
- Color temperature: 4000K
- CRI: 90
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Individual package length: 7.875 in
- Individual package width: 5.25 in
- Individual package height: 3.25 in
- Individual package weight: 0.9 lb
- Master carton quantity: 12
- Master carton length: 17 in
- Master carton width: 12 in
- Master carton height: 11 in
- Master carton weight: 13 lb
Compliance and technical data
- CEC item number: NPRLV-4*******
- CEC substitute item: NPRLV-4RC35XBZ
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NPRLV-4RC40XBZ
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $94.41
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" Pearl LED Retrofit series is cULus classified for use in existing IC housings manufactured by Nora. The 4" retrofit luminaires deliver over 1250 lumens with die-cast adjustable cone for optimal visual cut-off and adjustability to aim the light source in desired direction. Adjustability: 35° Input Voltage: 12VAC Socket: GU5.3 Lumens / Wattage: 1250lm / 10W Color Temperature: 4000K Beam Spread: Three field changeable optics included Dimming: Triac or ELV Finish: Bronze Reflector / Bronze Flange Listing: cULus classified for damp locations
Product details
- Manufacturer SKU: NPRLV-4RC40XBZ
- UPC: 732180850303
- Base item: NPRLV-4RC
- Product family: Pearl
- Product line: LE92-LV
- Category: Recessed
- Finish: Bronze Reflector / Bronze Flange
- Lumen output: 1250lm
- Wattage: 10W
- Color temperature: 4000K
- CRI: 90
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Individual package length: 7.875 in
- Individual package width: 5.25 in
- Individual package height: 3.25 in
- Individual package weight: 0.9 lb
- Master carton quantity: 12
- Master carton length: 17 in
- Master carton width: 12 in
- Master carton height: 11 in
- Master carton weight: 13 lb
Compliance and technical data
- CEC item number: NPRLV-4*******
- CEC substitute item: NPRLV-4RC35XBZ
- CEC database: Yes
- Contains battery: No
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
