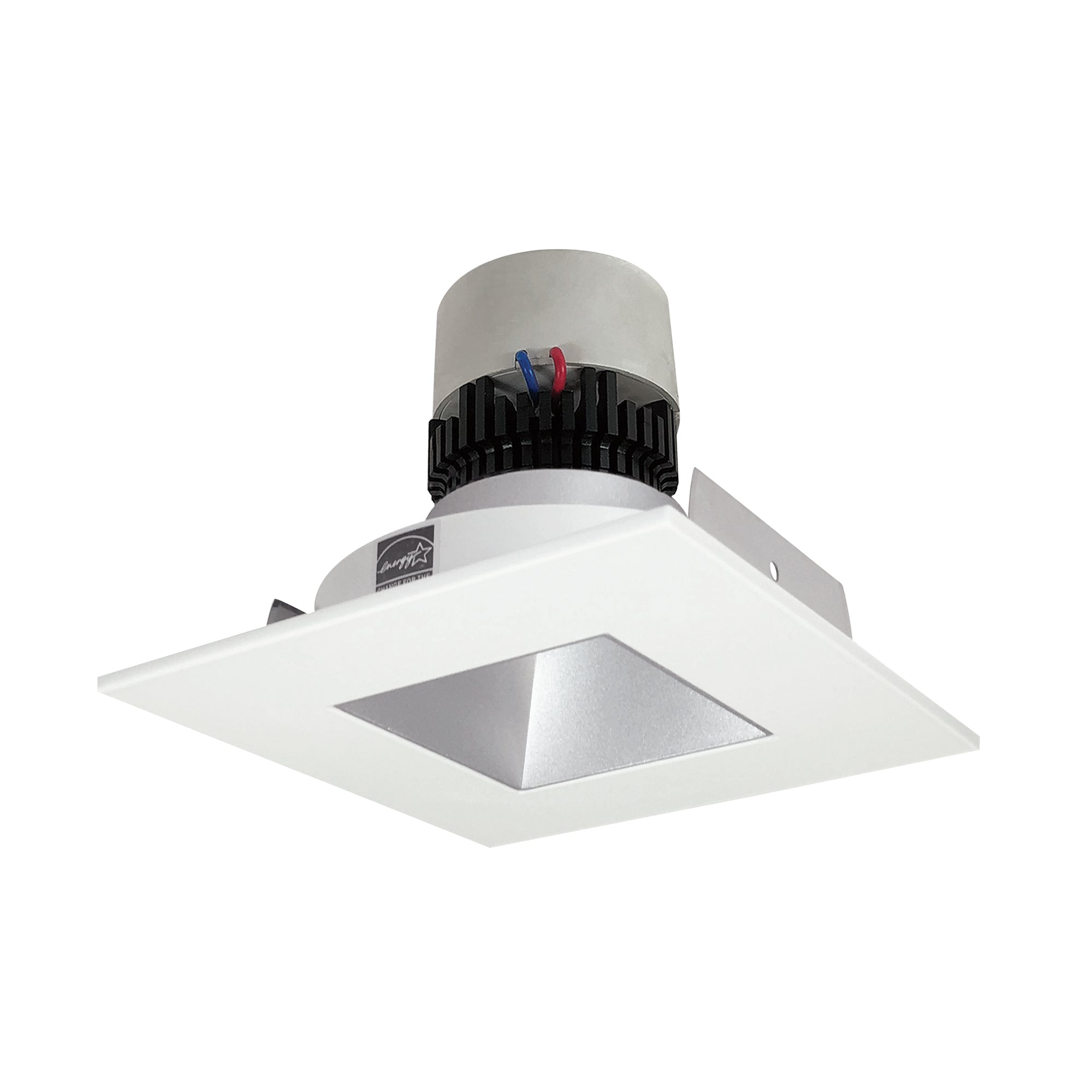

4" Pearl LED Retrofit series is cULus classified for use in existing IC housings manufactured by Nora. The 4" retrofit luminaires deliver 1150 lumens with deep regressed cone reflector for optimal visual cut-off.
Input Voltage: 120VAC
Socket: Medium Base
Lumens / Wattage: 1150lm / 10W
Color Temperature: 3500K
Beam Spread: Three field changeable optics included
Dimming: Triac or ELV
Finish: Haze Reflector / Bright White Flange
Listing: cULus classified for wet locations

Product details

• Manufacturer SKU: NPR-4SNDSQ35XHZMPW
• UPC: 732180849321
• Base item: NPR-4SNDSQ
• Product family: Pearl
• Product line: LE92
• Category: Recessed
• Finish: Haze Reflector / Bright White Flange
• Lumen output: 1150lm
• Wattage: 10W
• Color temperature: 3500K
• CRI: 90
• Safety listing: cULus
• Location rating: Wet
• Country of origin: CHN
• Certifications: ENERGY STAR: Yes, Title 24: Yes

Dimensions and packaging

• Product length: 5 in
• Product width: 5 in
• Product height: 4.375 in
• Estimated shipping weight: 3 lb
• Individual package length: 5 in
• Individual package width: 5.125 in
• Individual package height: 5.125 in
• Individual package weight: 1.35 lb
• Master carton quantity: 12
• Master carton length: 17 in
• Master carton width: 12 in
• Master carton height: 12 in
• Master carton weight: 17 lb

Compliance and technical data

• CEC item number: NPR-4*********
• CEC substitute item: NPR-4SNDSQ40XHZMPW
• CEC database: Yes
• Contains battery: No
