Nora Lighting

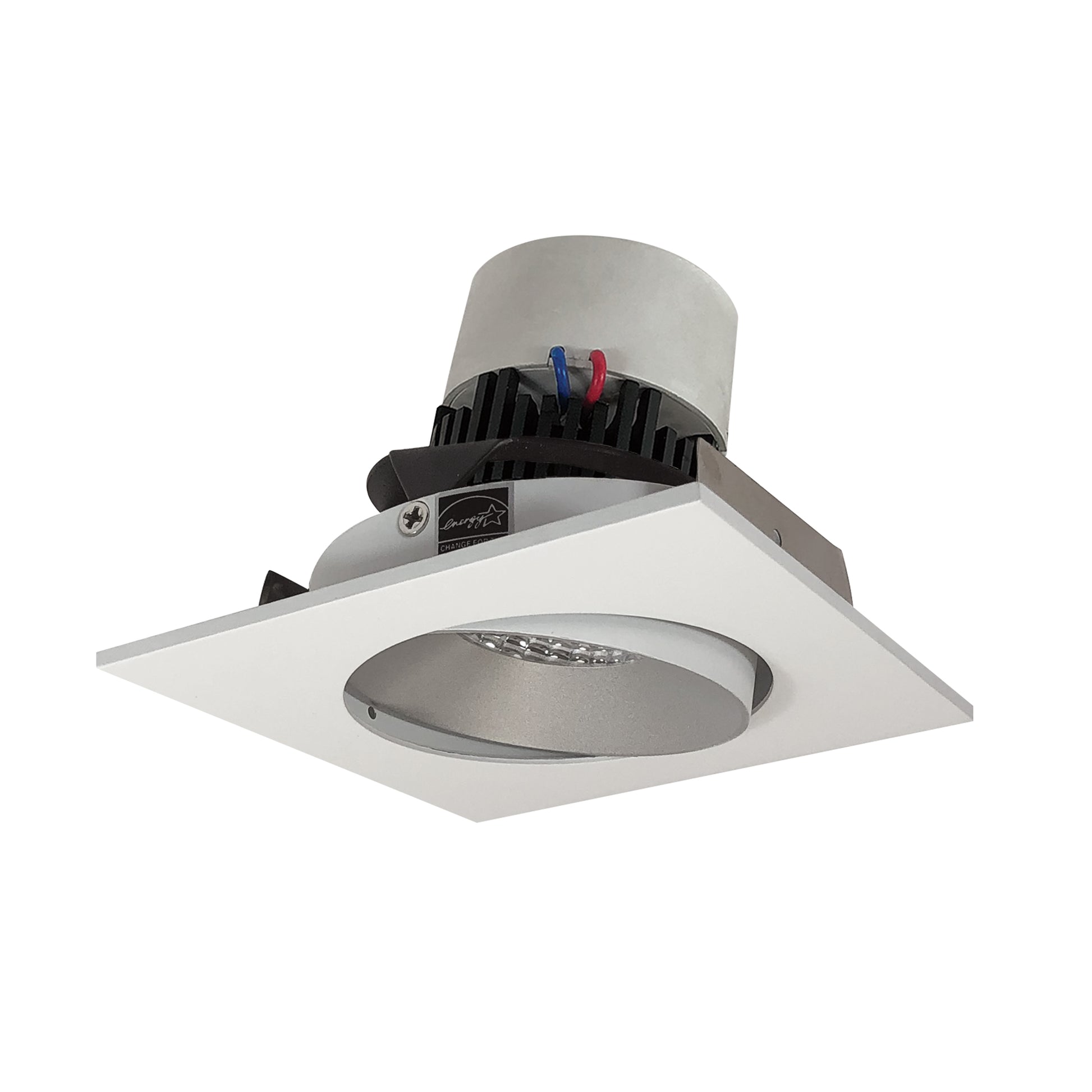

4" Pearl 120V LED Square Adjustable Cone Retrofit, 750lm / 10W, Comfort Dim, Haze Reflector / Warm White Flange
4" Pearl LED Retrofit series is cULus classified for use in existing IC housings manufactured by Nora. The 4" retrofit luminaires deliver over 750 lumens with die-cast adjustable cone for optimal visual cut-off and adjustability to aim the light source in desired direction. Adjustability: 35° Input Voltage: 120VAC Socket: Medium Base Lumens / Wattage: 750lm / 10W Color Temperature: Comfort Dim (3000K-2000K) Beam Spread: Three field changeable optics included Dimming: Triac or ELV Finish: Haze Reflector / Warm White Flange Listing: cULus classified for damp locations
Product details
- Manufacturer SKU: NPR-4SCCDXHW
- UPC: 732180848034
- Base item: NPR-4SC
- Product family: Pearl
- Product line: LE92
- Category: Recessed
- Finish: Haze Reflector / Warm White Flange
- Lumen output: 750lm
- Wattage: 10W
- Color temperature: Comfort Dim (3000K-2000K)
- CRI: 90
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 5 in
- Product width: 5 in
- Product height: 3.375 in
- Individual package length: 5 in
- Individual package width: 5.125 in
- Individual package height: 5.125 in
- Individual package weight: 1.5 lb
- Master carton quantity: 12
- Master carton length: 17 in
- Master carton width: 12 in
- Master carton height: 12 in
- Master carton weight: 19 lb
Compliance and technical data
- CEC item number: NPR-4*********
- CEC substitute item: NPR-4SC27XHW
- CEC database: Yes
- Contains battery: No
