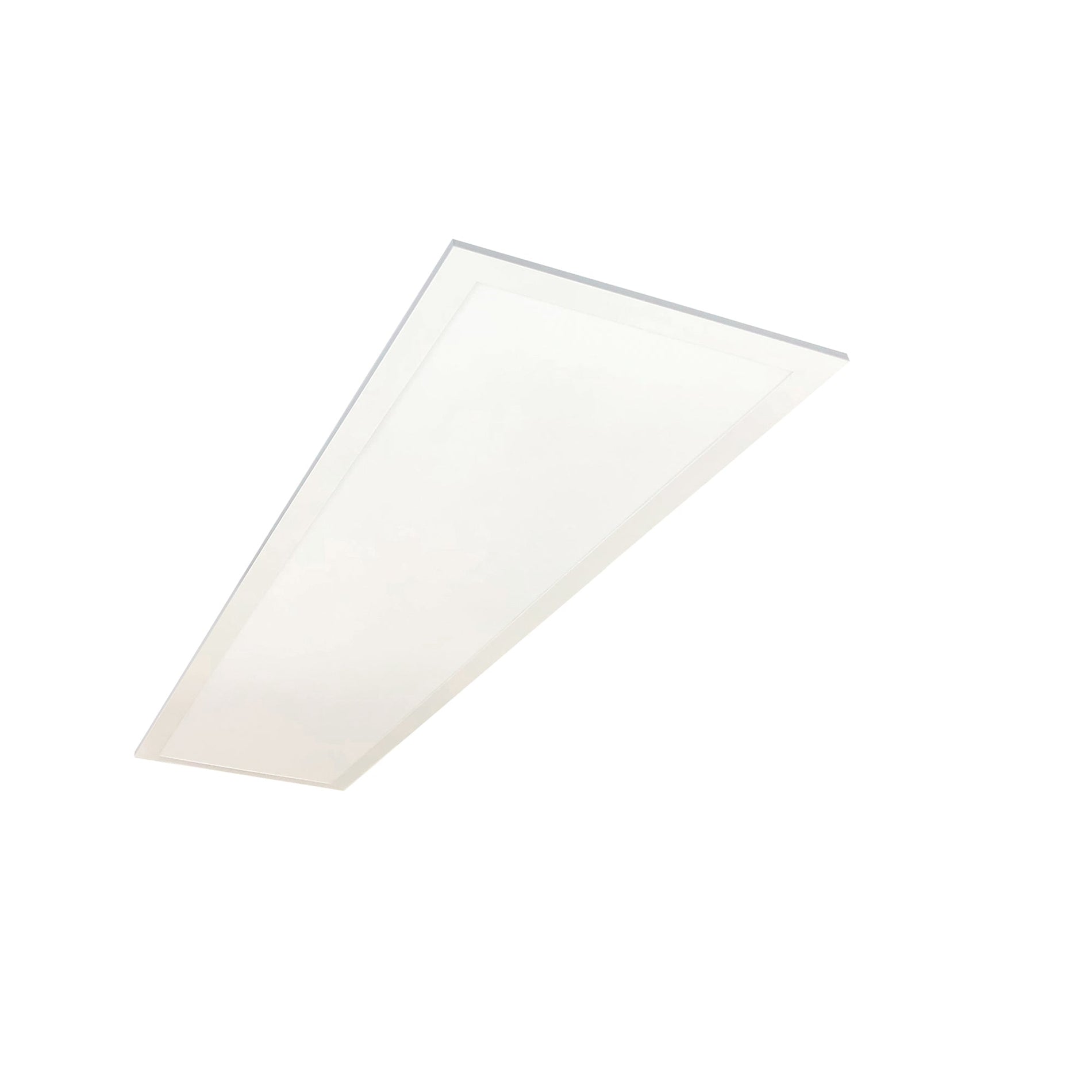

Nora NPDBLSW-E14/334WEM 1 ftx4 ft LED Backlit Panel with Selectable Lumens & CCT, White Finish, Emergency with Remote Test Switch
1'x4' LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Each luminaire includes two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance.
Input Voltage: 120-277VAC
Lumens: Selectable Lumens (2634lm to 3678lm)
Wattage: Selectable Wattage (20W to 30W)
Color Temperature: Selectable CCT (3000K / 3500K / 4000K)
Color Rendering Index: 80+ CRI
Dimming: 0-10V
Finish: White
Mounting Accessories: Recessed Kit, Surface Mount Kit or Pendant Mount Kit (ordered separately)
Emergency: Luminaire includes an emergency battery with remote test switch. Battery operates luminaire for 90 minute emergency operation on fully charged battery.
Listing: cULus Listed for Damp Locations
Product Dossier
- SKU
- NPDBLSW-E14/334WEM
- Brand
- Nora Lighting
- Fixture Type
- Panel
- Price
- $305.91
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
1'x4' LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Each luminaire includes two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance.
Input Voltage: 120-277VAC
Lumens: Selectable Lumens (2634lm to 3678lm)
Wattage: Selectable Wattage (20W to 30W)
Color Temperature: Selectable CCT (3000K / 3500K / 4000K)
Color Rendering Index: 80+ CRI
Dimming: 0-10V
Finish: White
Mounting Accessories: Recessed Kit, Surface Mount Kit or Pendant Mount Kit (ordered separately)
Emergency: Luminaire includes an emergency battery with remote test switch. Battery operates luminaire for 90 minute emergency operation on fully charged battery.
Listing: cULus Listed for Damp Locations
