Nora Lighting

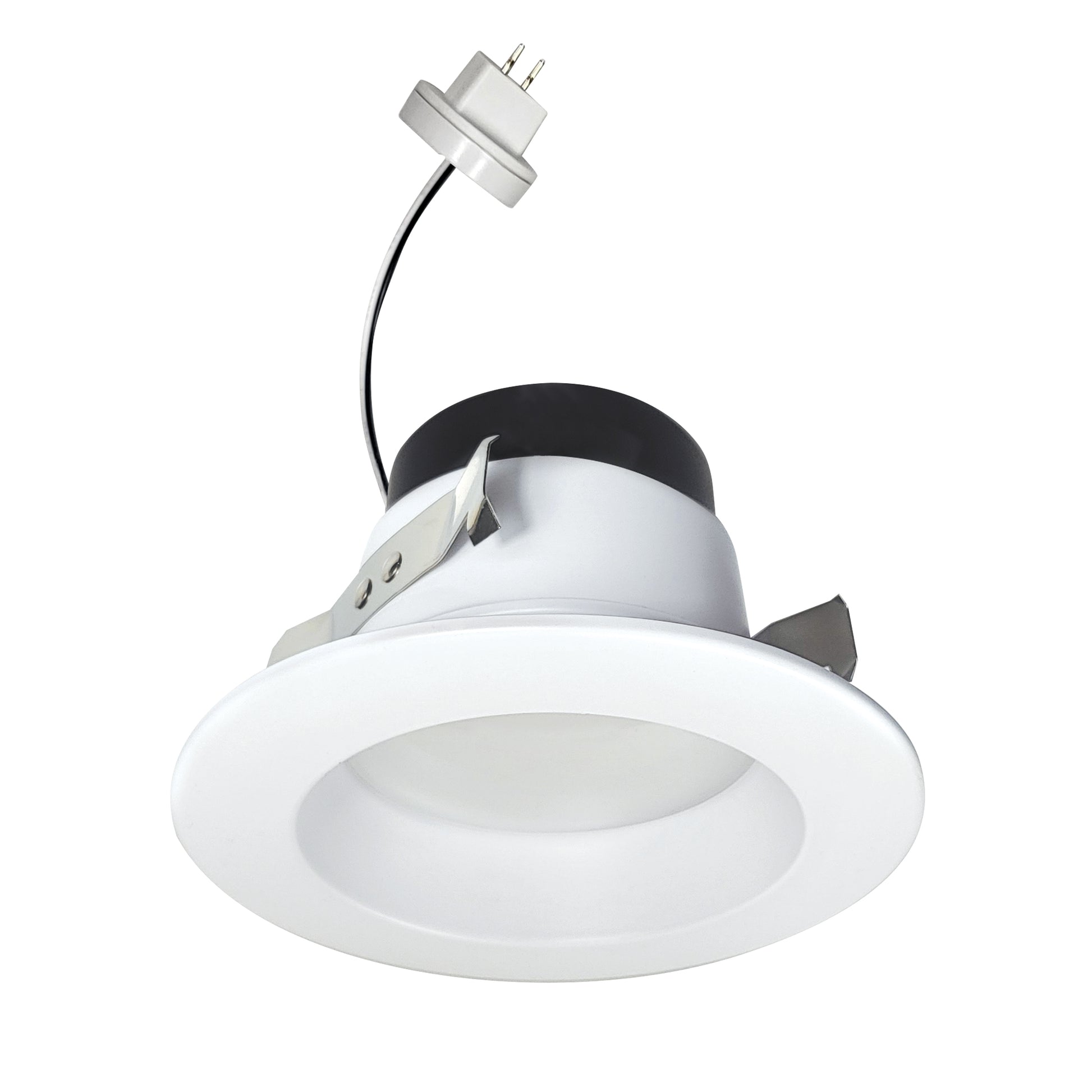

4" Onyx 12Vac Retrofit Reflector, 800lm / 11W, Selectable CCT, White Finish
4" Onyx Low Voltage Retrofit luminaires are perfect solution to convert low voltage recessed housings into LED luminaire. Each fixture include an integral tunable CCT switch to change the color temperature appearance. Spun aluminum construction provides clean sharp edges and is suitable for use with most 4" low voltage housings. Deep regressed optics and round aperture deliver even and glare-free illumination. Input Voltage: 12V Lumens / Wattage: 800lm / 11W CCT / CRI: Selectable CCT / 90 CRI Finish: White Dimming: Triac or ELV Optics: 95° Wide Flood Listing: cETLus classified for Wet Locations
Product details
- Manufacturer SKU: NOXLV-4R1TWWW
- UPC: 732180831777
- Base item: NOXLV-4R1
- Product family: Onyx
- Product line: LE49
- Category: Recessed
- Finish: White
- Lumen output: 800lm
- Wattage: 11W
- Color temperature: Selectable CCT (27K / 30K / 35K / 40K / 50K)
- CRI: 90
- Safety listing: cETLus
- Location rating: Wet
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 5.125 in
- Product width: 5.125 in
- Product height: 3.25 in
- Product weight: 0.3 lb
- Estimated shipping weight: 1 lb
- Individual package length: 5.5 in
- Individual package width: 3.5 in
- Individual package height: 5.375 in
- Individual package weight: 0.4 lb
- Master carton quantity: 12
- Master carton length: 12 in
- Master carton width: 12 in
- Master carton height: 12 in
- Master carton weight: 6 lb
Compliance and technical data
- CEC item number: NOXLV-4**TW**
- CEC substitute item: NOXLV-4R2TWWW
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NOXLV-4R1TWWW
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $28.35
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" Onyx Low Voltage Retrofit luminaires are perfect solution to convert low voltage recessed housings into LED luminaire. Each fixture include an integral tunable CCT switch to change the color temperature appearance. Spun aluminum construction provides clean sharp edges and is suitable for use with most 4" low voltage housings. Deep regressed optics and round aperture deliver even and glare-free illumination. Input Voltage: 12V Lumens / Wattage: 800lm / 11W CCT / CRI: Selectable CCT / 90 CRI Finish: White Dimming: Triac or ELV Optics: 95° Wide Flood Listing: cETLus classified for Wet Locations
