Nora Lighting

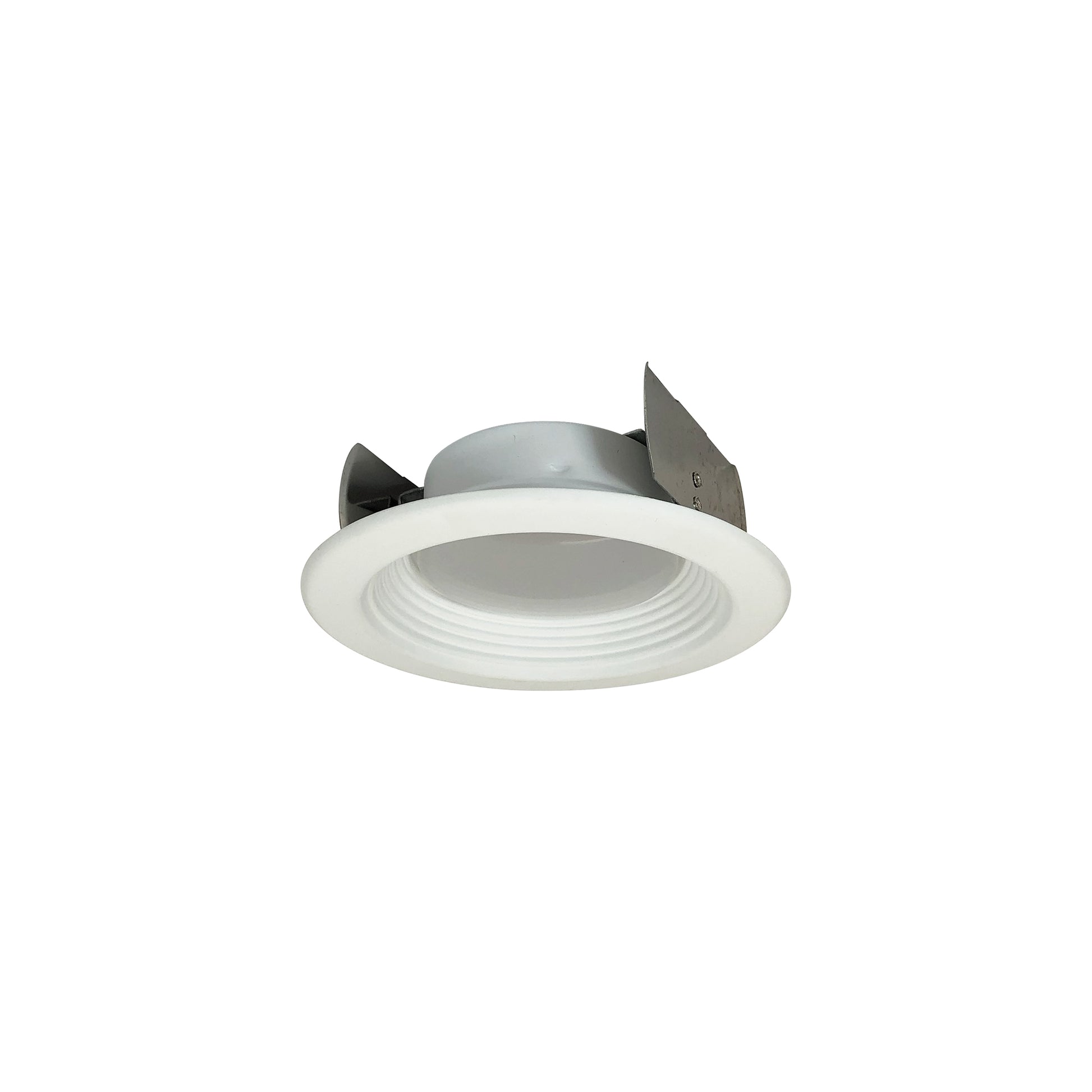

4" AC Onyx LED Retrofit Baffle with Selectable CCT, 900lm / 11.5W, White Finish
4" AC Onyx Retrofit Series requires no driver and allow for a sleek design. Spun aluminum construction provides clean sharp edges and is suitable for use with most 4" recessed housings. Deep regressed optics and round aperture deliver even and glare-free illumination. Input Voltage: 120VAC Lumens / Wattage: 900lm / 11.5W Color Temperature: Selectable CCT (27K/30K/35K/40K/50K) Dimming: Triac or ELV Finish: White Baffle / White Flange Included: Retrofit Adapter Listing: cETLus classified for wet locations
Product details
- Manufacturer SKU: NOXAC-432TWWW
- UPC: 732180831913
- Base item: NOXAC-432TW
- Product family: Onyx
- Product line: LE49
- Category: Recessed
- Finish: White
- Lumen output: 900lm
- Wattage: 11.5W
- Color temperature: Selectable CCT (27K / 30K / 35K / 40K / 50K)
- CRI: 90
- Safety listing: cETLus
- Location rating: Wet
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 5 in
- Product width: 5 in
- Product height: 2 in
- Product weight: 0.3 lb
- Estimated shipping weight: 1 lb
- Individual package length: 5.375 in
- Individual package width: 5.375 in
- Individual package height: 2.25 in
- Individual package weight: 0.4 lb
- Master carton quantity: 24
- Master carton length: 15 in
- Master carton width: 12 in
- Master carton height: 12 in
- Master carton weight: 11 lb
Compliance and technical data
- CEC item number: NOXAC-43*TW***
- CEC substitute item: NOXTW-432WW
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NOXAC-432TWWW
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $12.53
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" AC Onyx Retrofit Series requires no driver and allow for a sleek design. Spun aluminum construction provides clean sharp edges and is suitable for use with most 4" recessed housings. Deep regressed optics and round aperture deliver even and glare-free illumination. Input Voltage: 120VAC Lumens / Wattage: 900lm / 11.5W Color Temperature: Selectable CCT (27K/30K/35K/40K/50K) Dimming: Triac or ELV Finish: White Baffle / White Flange Included: Retrofit Adapter Listing: cETLus classified for wet locations
Product details
- Manufacturer SKU: NOXAC-432TWWW
- UPC: 732180831913
- Base item: NOXAC-432TW
- Product family: Onyx
- Product line: LE49
- Category: Recessed
- Finish: White
- Lumen output: 900lm
- Wattage: 11.5W
- Color temperature: Selectable CCT (27K / 30K / 35K / 40K / 50K)
- CRI: 90
- Safety listing: cETLus
- Location rating: Wet
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 5 in
- Product width: 5 in
- Product height: 2 in
- Product weight: 0.3 lb
- Estimated shipping weight: 1 lb
- Individual package length: 5.375 in
- Individual package width: 5.375 in
- Individual package height: 2.25 in
- Individual package weight: 0.4 lb
- Master carton quantity: 24
- Master carton length: 15 in
- Master carton width: 12 in
- Master carton height: 12 in
- Master carton weight: 11 lb
Compliance and technical data
- CEC item number: NOXAC-43*TW***
- CEC substitute item: NOXTW-432WW
- CEC database: Yes
- Contains battery: No
