Nora Lighting

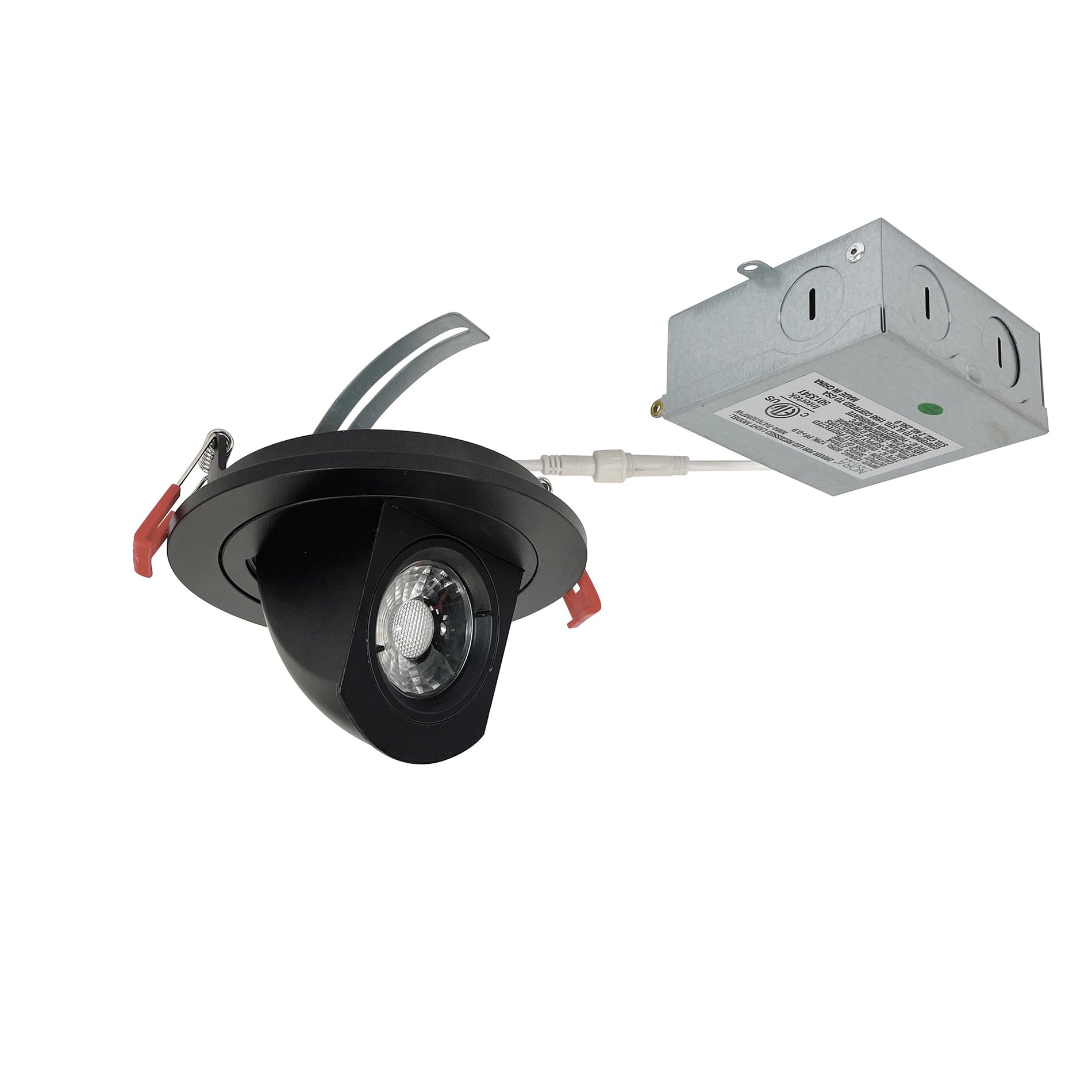

4" M4 Round LED Adjustable Elbow, 950lm / 12W, 2700K, 120V, Matte Black
4" M4 Round LED Elbow downlight features an adjustable head that extends 75° and rotates 300° for precise aiming. Quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into square trim with accessory. Adjustment: 75° vertical / 300° horizontal Input Voltage: 120V Lumens / Wattage: 950lm / 12W CCT / CRI: 2700K / 90 CRI Finish: Matte Black Dimming: Triac or ELV Optics: 25° Spot (included) and 38° Narrow Flood (installed) Square Trim: NM4-SET ordered separately Accessories: Extension cables and new construction frame available Listing: cETLus Listed for Damp Locations
Product details
- Manufacturer SKU: NM4-R47027BB
- UPC: 732180817771
- Base item: NM4-R470
- Product family: M4
- Product line: LE94
- Category: Recessed
- Finish: Black
- Lumen output: 950lm
- Wattage: 12W
- Color temperature: 2700K
- CRI: 90
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 17 in
- Product width: 5.5 in
- Product height: 3.5 in
- Product weight: 1.2 lb
- Estimated shipping weight: 2 lb
- Individual package length: 6.375 in
- Individual package width: 5.25 in
- Individual package height: 5 in
- Individual package weight: 1.45 lb
- Master carton quantity: 18
- Master carton length: 16 in
- Master carton width: 14 in
- Master carton height: 16 in
- Master carton weight: 28 lb
Compliance and technical data
- CEC item number: NM4-R470*****
- CEC substitute item: NM4-R47030BB
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NM4-R47027BB
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $71.10
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" M4 Round LED Elbow downlight features an adjustable head that extends 75° and rotates 300° for precise aiming. Quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into square trim with accessory. Adjustment: 75° vertical / 300° horizontal Input Voltage: 120V Lumens / Wattage: 950lm / 12W CCT / CRI: 2700K / 90 CRI Finish: Matte Black Dimming: Triac or ELV Optics: 25° Spot (included) and 38° Narrow Flood (installed) Square Trim: NM4-SET ordered separately Accessories: Extension cables and new construction frame available Listing: cETLus Listed for Damp Locations
Product details
- Manufacturer SKU: NM4-R47027BB
- UPC: 732180817771
- Base item: NM4-R470
- Product family: M4
- Product line: LE94
- Category: Recessed
- Finish: Black
- Lumen output: 950lm
- Wattage: 12W
- Color temperature: 2700K
- CRI: 90
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 17 in
- Product width: 5.5 in
- Product height: 3.5 in
- Product weight: 1.2 lb
- Estimated shipping weight: 2 lb
- Individual package length: 6.375 in
- Individual package width: 5.25 in
- Individual package height: 5 in
- Individual package weight: 1.45 lb
- Master carton quantity: 18
- Master carton length: 16 in
- Master carton width: 14 in
- Master carton height: 16 in
- Master carton weight: 28 lb
Compliance and technical data
- CEC item number: NM4-R470*****
- CEC substitute item: NM4-R47030BB
- CEC database: Yes
- Contains battery: No
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
