Nora Lighting

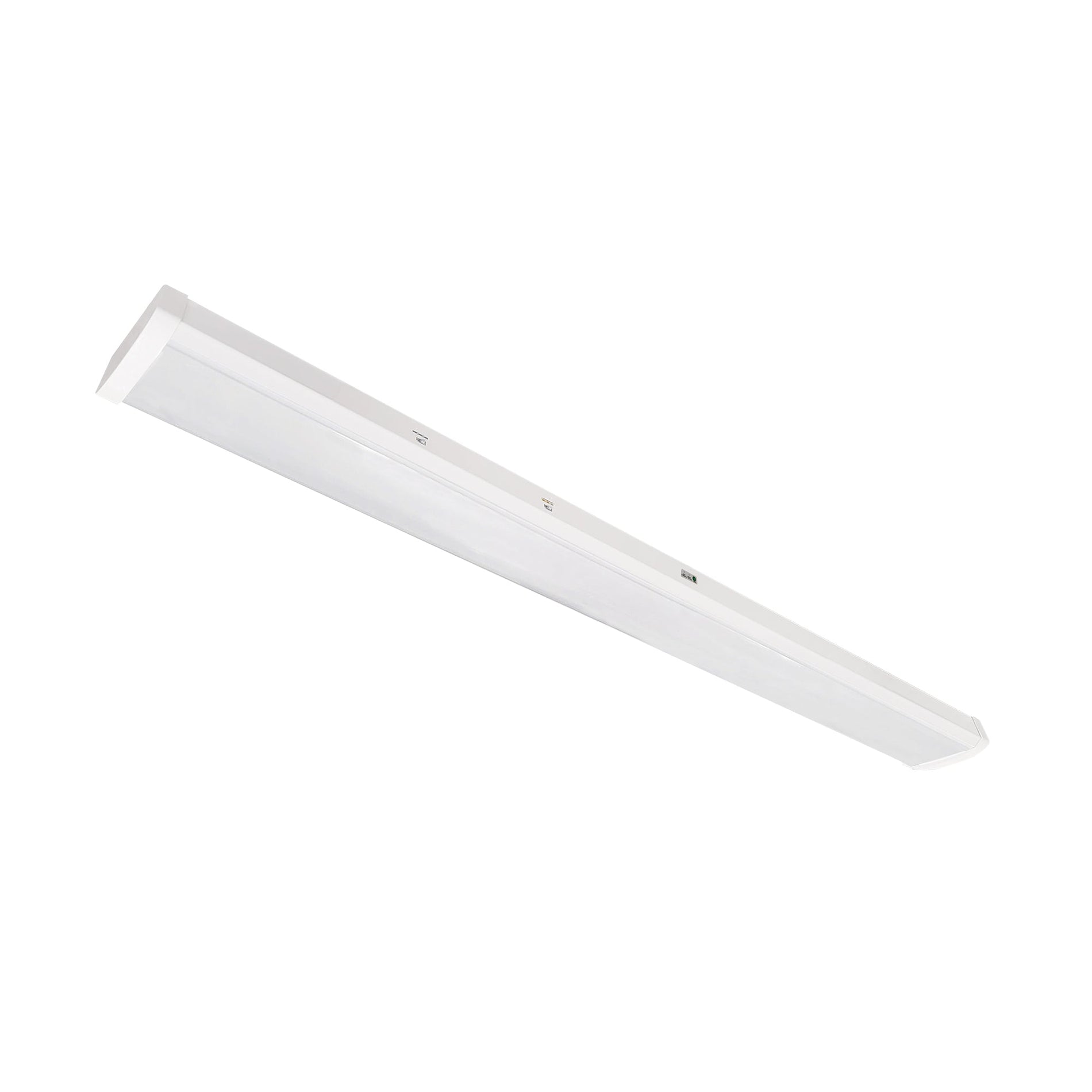

4' LED Wraparound with Selectable Lumens & CCT, White Finish, Integral Motion Sensor & Emergency
48" Industrial LED Wraparound two integral switches for lumen output and selectable color temperature. Ideal for commercial, residential, industrial, and retail applications, such as; stairwells, hallways, garages, schools, offices, and more. Easy to install and great for replacing outdated fluorescents with an energy efficient, cost saving alternative. The luminaire’s lens is designed to uniformly spread and soften the appearance of the light while maximizing its distribution and output. Input Voltage: 120-277V Lumens: Selectable Lumens (7000lm to 8000lm) Wattage: Selectable Wattage (55W to 65W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: White Mounting: Surface mount or Pendant mount (with accessory) Emergency: Luminaire includes an emergency battery with integral test switch. Battery operates luminaire for 90 minute emergency operation on fully charged battery. Motion Sensor: Integral microwave motion sensor can detect motion up to 17' away and 120° under the luminaire. After 60 seconds of no motion, the fixture output will be reduced to 50% output for another minute before automatically turning off. Accessories: Pendant Kit (NLWPSWA-PK) Listing: cULus Listed for Damp Locations
Product details
- Manufacturer SKU: NLWPSW-4L334W/EMMS
- UPC: 732180580705
- Base item: NLWPSW-4L334W
- Product family: Wraparound
- Product line: LE83
- Category: Linear
- Finish: White
- Lumen output: Selectable Lumens (7000lm / 7500lm / 8000lm)
- Wattage: Selectable Wattage (55W / 60W / 65W)
- Color temperature: Selectable CCT (3000K / 3500K / 4000K)
- CRI: 80
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
- Certifications: DLC Listed: Yes
Dimensions and packaging
- Product length: 47.75 in
- Product width: 5.25 in
- Product height: 2.125 in
- Product weight: 5.95 lb
- Estimated shipping weight: 8 lb
- Individual package length: 48.625 in
- Individual package width: 5.75 in
- Individual package height: 2.625 in
- Individual package weight: 6.5 lb
- Master carton quantity: 4
- Master carton length: 50 in
- Master carton width: 11 in
- Master carton height: 7 in
- Master carton weight: 28 lb
Compliance and technical data
- Contains battery: Yes
- Battery type: Lithium-ion
- Battery quantity: 1
Resources
Product Dossier
- SKU
- NLWPSW-4L334W/EMMS
- Brand
- Nora Lighting
- Fixture Type
- Linear
- Price
- $269.91
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
48" Industrial LED Wraparound two integral switches for lumen output and selectable color temperature. Ideal for commercial, residential, industrial, and retail applications, such as; stairwells, hallways, garages, schools, offices, and more. Easy to install and great for replacing outdated fluorescents with an energy efficient, cost saving alternative. The luminaire’s lens is designed to uniformly spread and soften the appearance of the light while maximizing its distribution and output. Input Voltage: 120-277V Lumens: Selectable Lumens (7000lm to 8000lm) Wattage: Selectable Wattage (55W to 65W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: White Mounting: Surface mount or Pendant mount (with accessory) Emergency: Luminaire includes an emergency battery with integral test switch. Battery operates luminaire for 90 minute emergency operation on fully charged battery. Motion Sensor: Integral microwave motion sensor can detect motion up to 17' away and 120° under the luminaire. After 60 seconds of no motion, the fixture output will be reduced to 50% output for another minute before automatically turning off. Accessories: Pendant Kit (NLWPSWA-PK) Listing: cULus Listed for Damp Locations
Product details
- Manufacturer SKU: NLWPSW-4L334W/EMMS
- UPC: 732180580705
- Base item: NLWPSW-4L334W
- Product family: Wraparound
- Product line: LE83
- Category: Linear
- Finish: White
- Lumen output: Selectable Lumens (7000lm / 7500lm / 8000lm)
- Wattage: Selectable Wattage (55W / 60W / 65W)
- Color temperature: Selectable CCT (3000K / 3500K / 4000K)
- CRI: 80
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
- Certifications: DLC Listed: Yes
Dimensions and packaging
- Product length: 47.75 in
- Product width: 5.25 in
- Product height: 2.125 in
- Product weight: 5.95 lb
- Estimated shipping weight: 8 lb
- Individual package length: 48.625 in
- Individual package width: 5.75 in
- Individual package height: 2.625 in
- Individual package weight: 6.5 lb
- Master carton quantity: 4
- Master carton length: 50 in
- Master carton width: 11 in
- Master carton height: 7 in
- Master carton weight: 28 lb
Compliance and technical data
- Contains battery: Yes
- Battery type: Lithium-ion
- Battery quantity: 1
