Nora Lighting

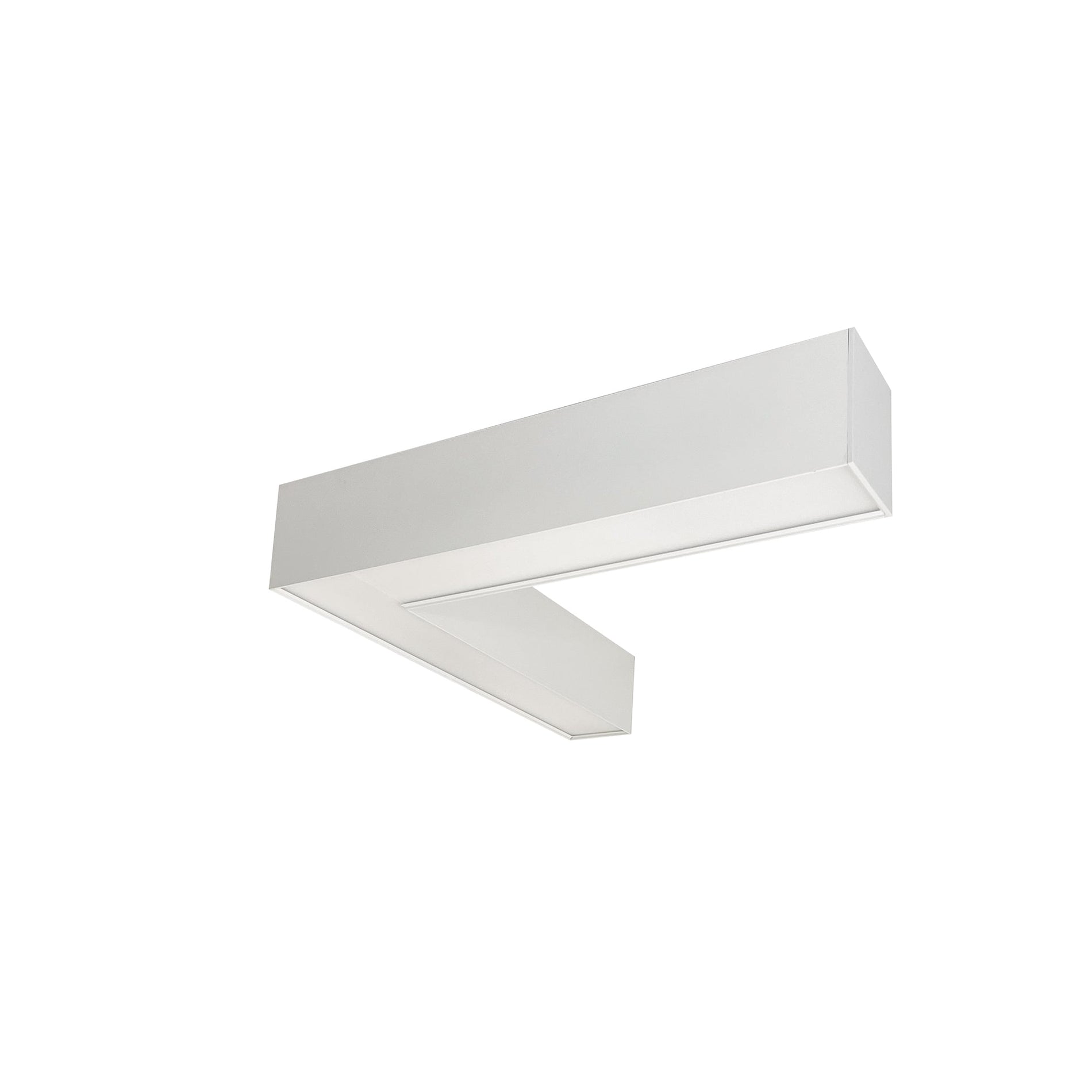

"L" Shaped L-Line LED Indirect/Direct Linear, 3781lm / Selectable CCT, White Finish
L shaped L-Line Indirect/Direct luminaires offer a clean and modern appearance with a sleek extruded aluminum housing. Symmetrical light distribution evenly illuminate surfaces with a diffused lens, making L-Line ideal for commercial, retail, healthcare and education applications. Luminaires can be daisy chained with linear, X, T luminaires or installed separately. Input Voltage: 120-347V Lumens / Wattage: 3781lm / 30W (2615lm Direct / 1166lm Indirect) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Finish: White Dimming: 0-10V Mounting System: Pendant Kit ordered separately Listing: cETLus Listed for Damp Locations
Product details
- Manufacturer SKU: NLUD-L334W
- UPC: 732180581429
- Base item: NLUD-L334
- Product family: L-Line Indirect / Direct
- Product line: LE73
- Category: Linear
- Finish: White
- Lumen output: 3781lm
- Wattage: 30W
- Color temperature: Selectable CCT (3000K / 3500K / 4000K)
- CRI: 80
- Safety listing: cETLus
- Location rating: Damp
- Country of origin: CHN
- Certifications: DLC Listed: Yes
Dimensions and packaging
- Product length: 16.625 in
- Product width: 3.125 in
- Product height: 16.625 in
- Product weight: 4.15 lb
- Estimated shipping weight: 9 lb
- Individual package length: 17.875 in
- Individual package width: 4.5 in
- Individual package height: 17.875 in
- Individual package weight: 5.2 lb
- Master carton quantity: 4
- Master carton length: 19 in
- Master carton width: 19 in
- Master carton height: 20 in
- Master carton weight: 24 lb
Compliance and technical data
- Contains battery: No
