Nora Lighting

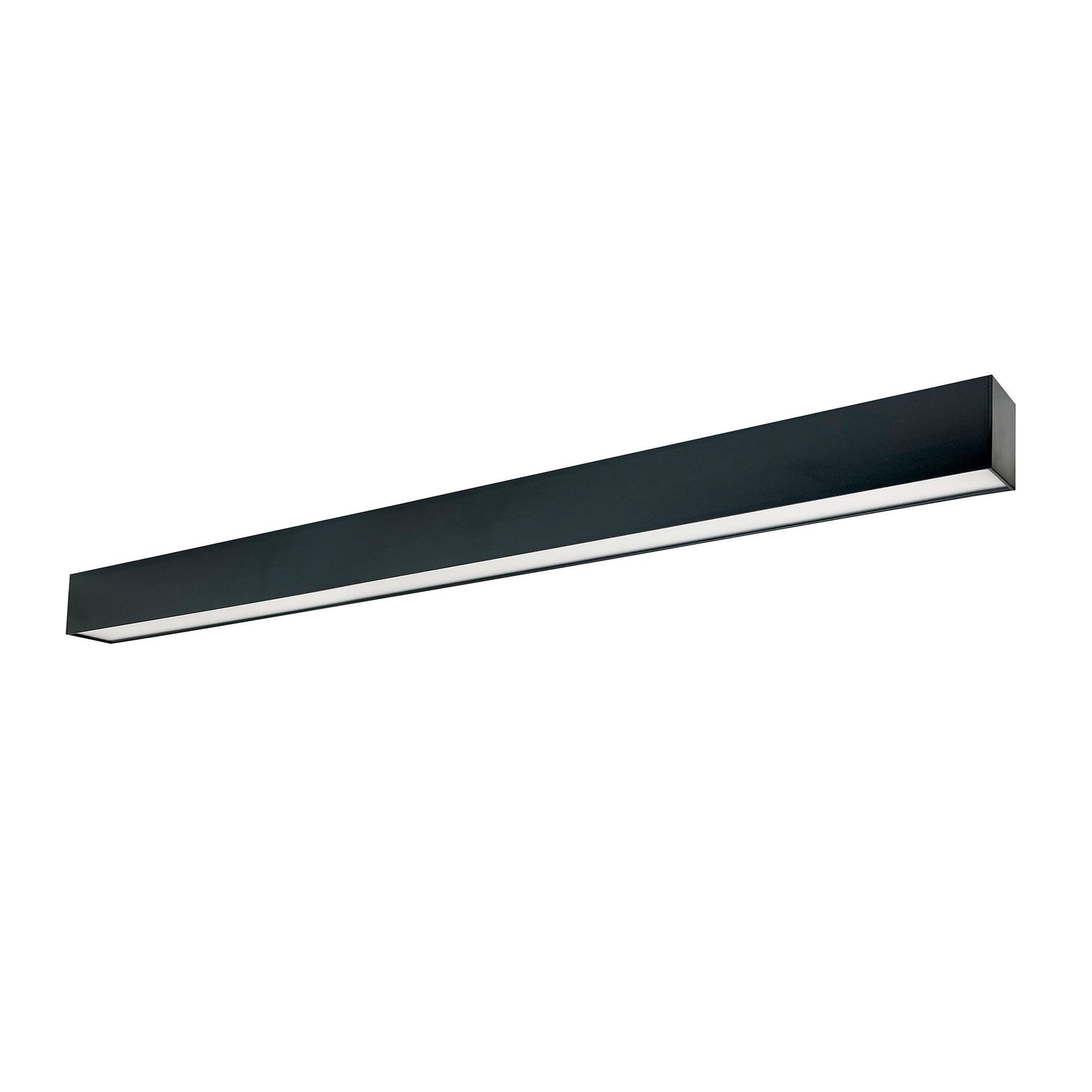

8' L-Line LED Indirect/Direct Linear, 12304lm / Selectable CCT, Black Finish
20' L-Line Indirect/Direct luminaires offer a clean and modern appearance with a sleek extruded aluminum housing. Symmetrical light distribution evenly illuminate surfaces with a diffused lens, making L-Line ideal for commercial, retail, healthcare and education applications. Luminaires can be daisy chained with luminous L, X, T luminaires or installed separately. Input Voltage: 120-347V Lumens / Wattage: 12304lm / 100W (8493lm Direct / 3810lm Indirect) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Finish: Black Dimming: 0-10V Mounting System: Wall Mount Kit or Pendant Kit ordered separately Listing: cETLus Listed for Damp Locations
Product details
- Manufacturer SKU: NLUD-8334B
- UPC: 732180581351
- Base item: NLUD-8334
- Product family: L-Line Indirect / Direct
- Product line: LE73
- Category: Linear
- Finish: Black
- Lumen output: 12304lm
- Wattage: 100W
- Color temperature: Selectable CCT (3000K / 3500K / 4000K)
- CRI: 80
- Safety listing: cETLus
- Location rating: Damp
- Country of origin: CHN
- Certifications: DLC Listed: Yes
Dimensions and packaging
- Product length: 92.75 in
- Product width: 3.25 in
- Product height: 2.75 in
- Product weight: 10.85 lb
- Estimated shipping weight: 18 lb
- Individual package length: 93.25 in
- Individual package width: 4.625 in
- Individual package height: 2.75 in
- Individual package weight: 12.55 lb
- Master carton quantity: 2
- Master carton length: 94 in
- Master carton width: 11 in
- Master carton height: 6 in
- Master carton weight: 31 lb
Compliance and technical data
- Contains battery: No
Resources
Product Dossier
- SKU
- NLUD-8334B
- Brand
- Nora Lighting
- Fixture Type
- Linear
- Price
- $593.91
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
20' L-Line Indirect/Direct luminaires offer a clean and modern appearance with a sleek extruded aluminum housing. Symmetrical light distribution evenly illuminate surfaces with a diffused lens, making L-Line ideal for commercial, retail, healthcare and education applications. Luminaires can be daisy chained with luminous L, X, T luminaires or installed separately. Input Voltage: 120-347V Lumens / Wattage: 12304lm / 100W (8493lm Direct / 3810lm Indirect) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Finish: Black Dimming: 0-10V Mounting System: Wall Mount Kit or Pendant Kit ordered separately Listing: cETLus Listed for Damp Locations
Product details
- Manufacturer SKU: NLUD-8334B
- UPC: 732180581351
- Base item: NLUD-8334
- Product family: L-Line Indirect / Direct
- Product line: LE73
- Category: Linear
- Finish: Black
- Lumen output: 12304lm
- Wattage: 100W
- Color temperature: Selectable CCT (3000K / 3500K / 4000K)
- CRI: 80
- Safety listing: cETLus
- Location rating: Damp
- Country of origin: CHN
- Certifications: DLC Listed: Yes
Dimensions and packaging
- Product length: 92.75 in
- Product width: 3.25 in
- Product height: 2.75 in
- Product weight: 10.85 lb
- Estimated shipping weight: 18 lb
- Individual package length: 93.25 in
- Individual package width: 4.625 in
- Individual package height: 2.75 in
- Individual package weight: 12.55 lb
- Master carton quantity: 2
- Master carton length: 94 in
- Master carton width: 11 in
- Master carton height: 6 in
- Master carton weight: 31 lb
Compliance and technical data
- Contains battery: No
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
