Nora Lighting

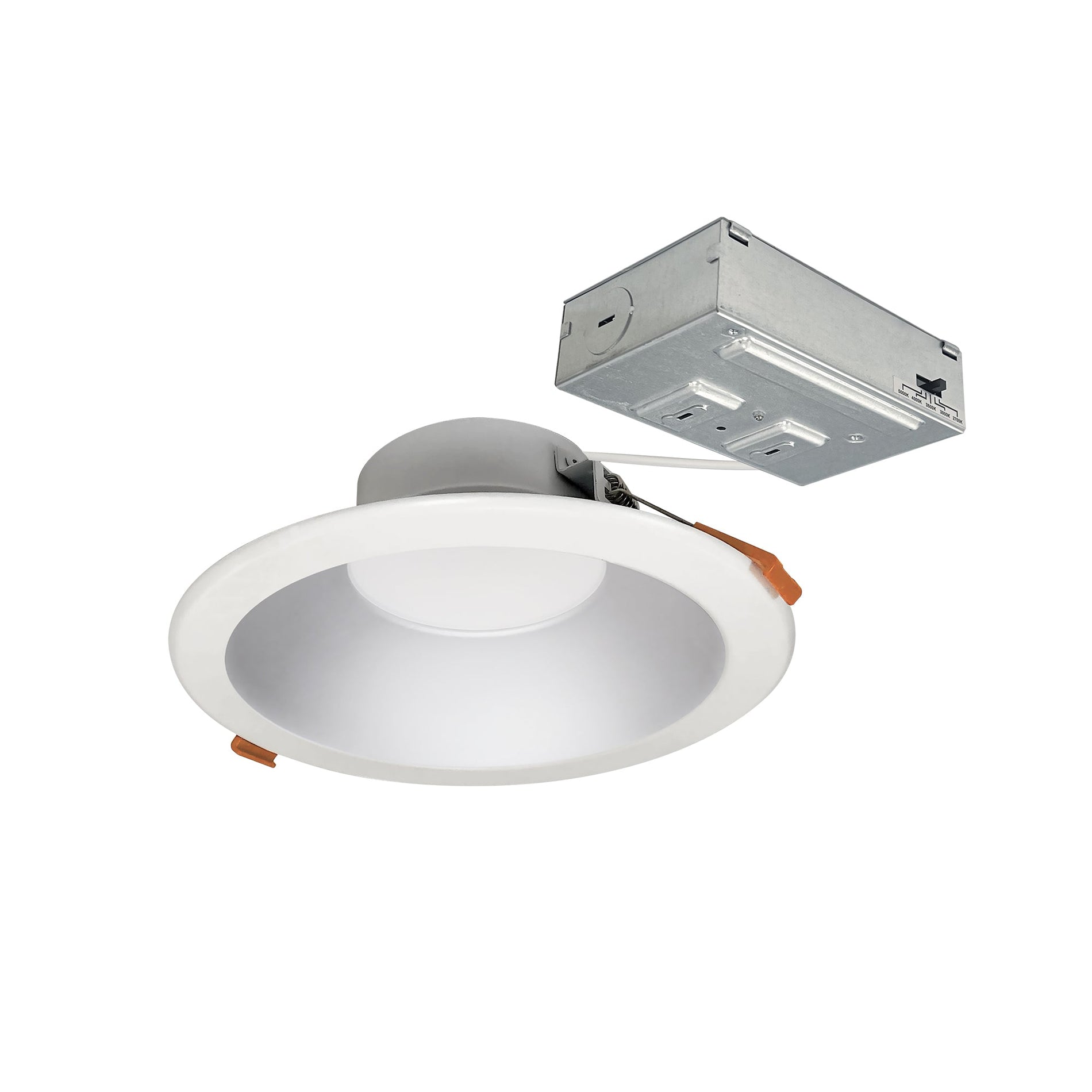

6" Theia LED Downlight with Selectable CCT, 1400lm / 15W, Haze/Matte Powder White Finish
6" Theia LED luminaires are commercial grade downlights designed for easy installation into new construction or remodel applications. Tunable white luminaires include an integral color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling. No housing required! Input Voltage: 120V Lumens / Wattage: 1400lm / 15W Color Temperature: Selectable CCT (27K/30K/35K/40K/50K) Color Rendering Index: 90+ CRI Dimming: Triac or ELV Finish: Haze Reflector / Matte Powder White Flange Accessories: New construction frame-ins ordered separately (NF-R246 or NFP-R613) Listing: cETLus Listed for Wet Locations
Product details
- Manufacturer SKU: NLTH-61TW-HZMPW
- UPC: 732180835171
- Base item: NLTH-61TW
- Product family: Theia
- Product line: LE93
- Category: Recessed
- Finish: Haze / Matte Powder White
- Lumen output: 1400lm
- Wattage: 15W
- Color temperature: Selectable CCT (27K / 30K / 35K / 40K / 50K)
- CRI: 90
- Safety listing: cETLus
- Location rating: Wet
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 24.25 in
- Product width: 7.375 in
- Product height: 2.625 in
- Product weight: 1.1 lb
- Estimated shipping weight: 3 lb
- Individual package length: 9.5 in
- Individual package width: 8.125 in
- Individual package height: 3.5 in
- Individual package weight: 1.35 lb
- Master carton quantity: 6
- Master carton length: 17 in
- Master carton width: 11 in
- Master carton height: 12 in
- Master carton weight: 10 lb
Compliance and technical data
- CEC item number: NLTH-6*TW-******
- CEC substitute item: NLTH-61TW-HZMPWLE4
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NLTH-61TW-HZMPW
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $30.73
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
6" Theia LED luminaires are commercial grade downlights designed for easy installation into new construction or remodel applications. Tunable white luminaires include an integral color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling. No housing required! Input Voltage: 120V Lumens / Wattage: 1400lm / 15W Color Temperature: Selectable CCT (27K/30K/35K/40K/50K) Color Rendering Index: 90+ CRI Dimming: Triac or ELV Finish: Haze Reflector / Matte Powder White Flange Accessories: New construction frame-ins ordered separately (NF-R246 or NFP-R613) Listing: cETLus Listed for Wet Locations
