Nora Lighting

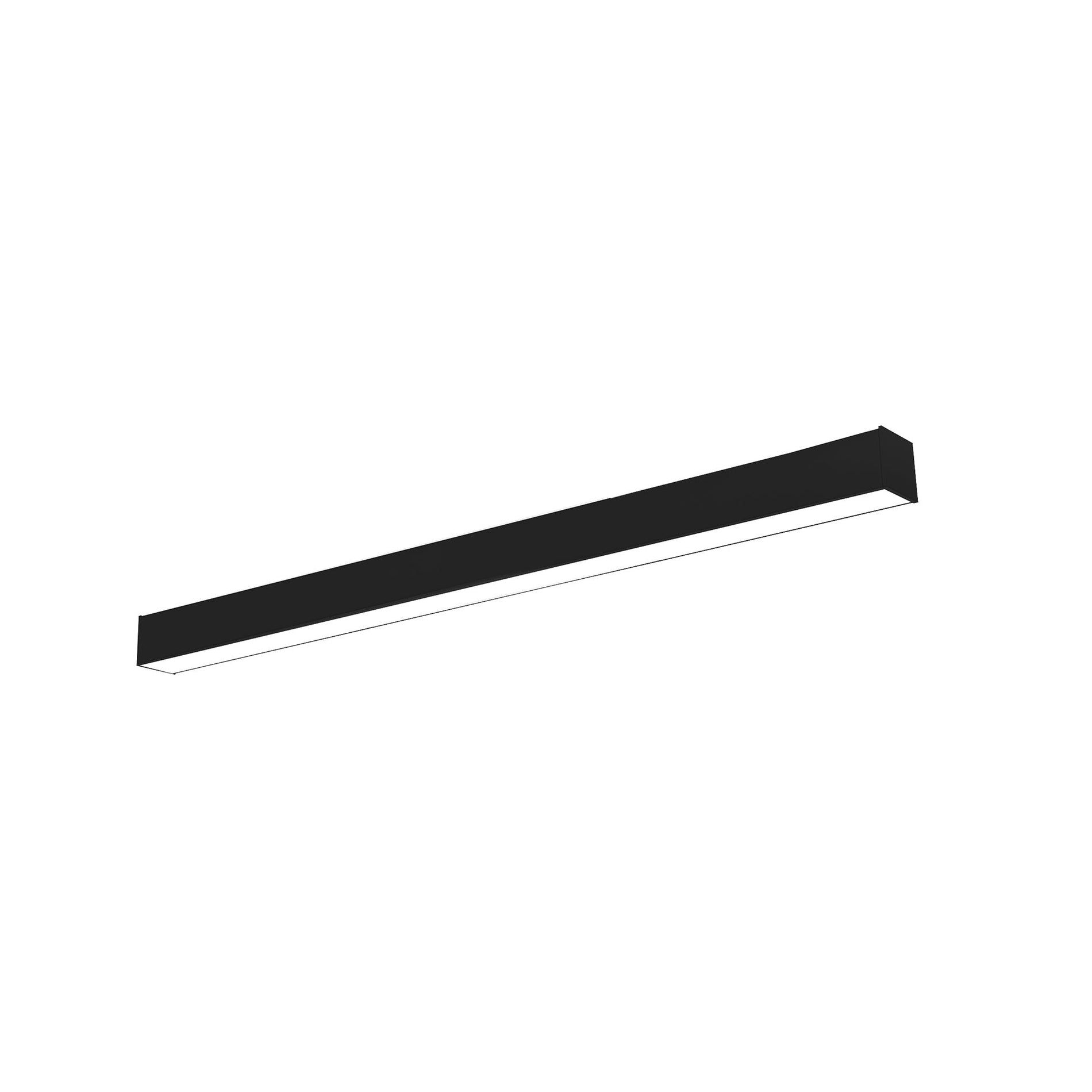

4' L-Line LED Direct Linear w/ Selectable Wattage, CCT, & Integral Emergency, Black Finish
4' L-Line series offers a clean and modern appearance with a sleek extruded aluminum housing. Symmetrical light distribution will evenly illuminate surfaces with a diffused lens, making the L-Line ideal for commercial, retail, healthcare and education applications. Available in surface or pendant mounting options. Series can be connected with seamless luminous L, X or T connectors. Input Voltage: 120-277V Lumens: Selectable Lumens (2425lm to 4850lm) Wattage: Selectable Wattage (20W to 42W) Color Temperature: Selectable CCT (3000K/3500K/4000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: Black Emergency: Emergency battery included with integral test switch. Battery operates luminaire at 8W for 90 minute emergency operation on fully charged battery. Accessories: Mounting Kit required
Product details
- Manufacturer SKU: NLINSW-4334B/EM
- UPC: 732180507115
- Base item: NLINSW
- Product family: L-Line Direct
- Product line: LE73
- Category: Linear
- Finish: Black
- Lumen output: Selectable Lumens (2425lm / 3600lm / 4850lm)
- Wattage: Selectable Wattage (20W / 30W / 42W)
- Color temperature: Selectable CCT (3000K / 3500K / 4000K)
- CRI: 80
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
Dimensions and packaging
- Product length: 48.125 in
- Product width: 2.75 in
- Product height: 2.5 in
- Product weight: 6.1 lb
- Estimated shipping weight: 9 lb
- Individual package length: 50.25 in
- Individual package width: 3.5 in
- Individual package height: 3.375 in
- Individual package weight: 6.8 lb
- Master carton quantity: 2
- Master carton length: 52 in
- Master carton width: 8 in
- Master carton height: 4 in
- Master carton weight: 15 lb
Compliance and technical data
- Contains battery: Yes
- Battery type: Lithium-ion
- Battery quantity: 1
Resources
Product Dossier
- SKU
- NLINSW-4334B/EM
- Brand
- Nora Lighting
- Fixture Type
- Linear
- Price
- $404.91
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4' L-Line series offers a clean and modern appearance with a sleek extruded aluminum housing. Symmetrical light distribution will evenly illuminate surfaces with a diffused lens, making the L-Line ideal for commercial, retail, healthcare and education applications. Available in surface or pendant mounting options. Series can be connected with seamless luminous L, X or T connectors. Input Voltage: 120-277V Lumens: Selectable Lumens (2425lm to 4850lm) Wattage: Selectable Wattage (20W to 42W) Color Temperature: Selectable CCT (3000K/3500K/4000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: Black Emergency: Emergency battery included with integral test switch. Battery operates luminaire at 8W for 90 minute emergency operation on fully charged battery. Accessories: Mounting Kit required
Product details
- Manufacturer SKU: NLINSW-4334B/EM
- UPC: 732180507115
- Base item: NLINSW
- Product family: L-Line Direct
- Product line: LE73
- Category: Linear
- Finish: Black
- Lumen output: Selectable Lumens (2425lm / 3600lm / 4850lm)
- Wattage: Selectable Wattage (20W / 30W / 42W)
- Color temperature: Selectable CCT (3000K / 3500K / 4000K)
- CRI: 80
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
Dimensions and packaging
- Product length: 48.125 in
- Product width: 2.75 in
- Product height: 2.5 in
- Product weight: 6.1 lb
- Estimated shipping weight: 9 lb
- Individual package length: 50.25 in
- Individual package width: 3.5 in
- Individual package height: 3.375 in
- Individual package weight: 6.8 lb
- Master carton quantity: 2
- Master carton length: 52 in
- Master carton width: 8 in
- Master carton height: 4 in
- Master carton weight: 15 lb
Compliance and technical data
- Contains battery: Yes
- Battery type: Lithium-ion
- Battery quantity: 1
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
