Nora Lighting

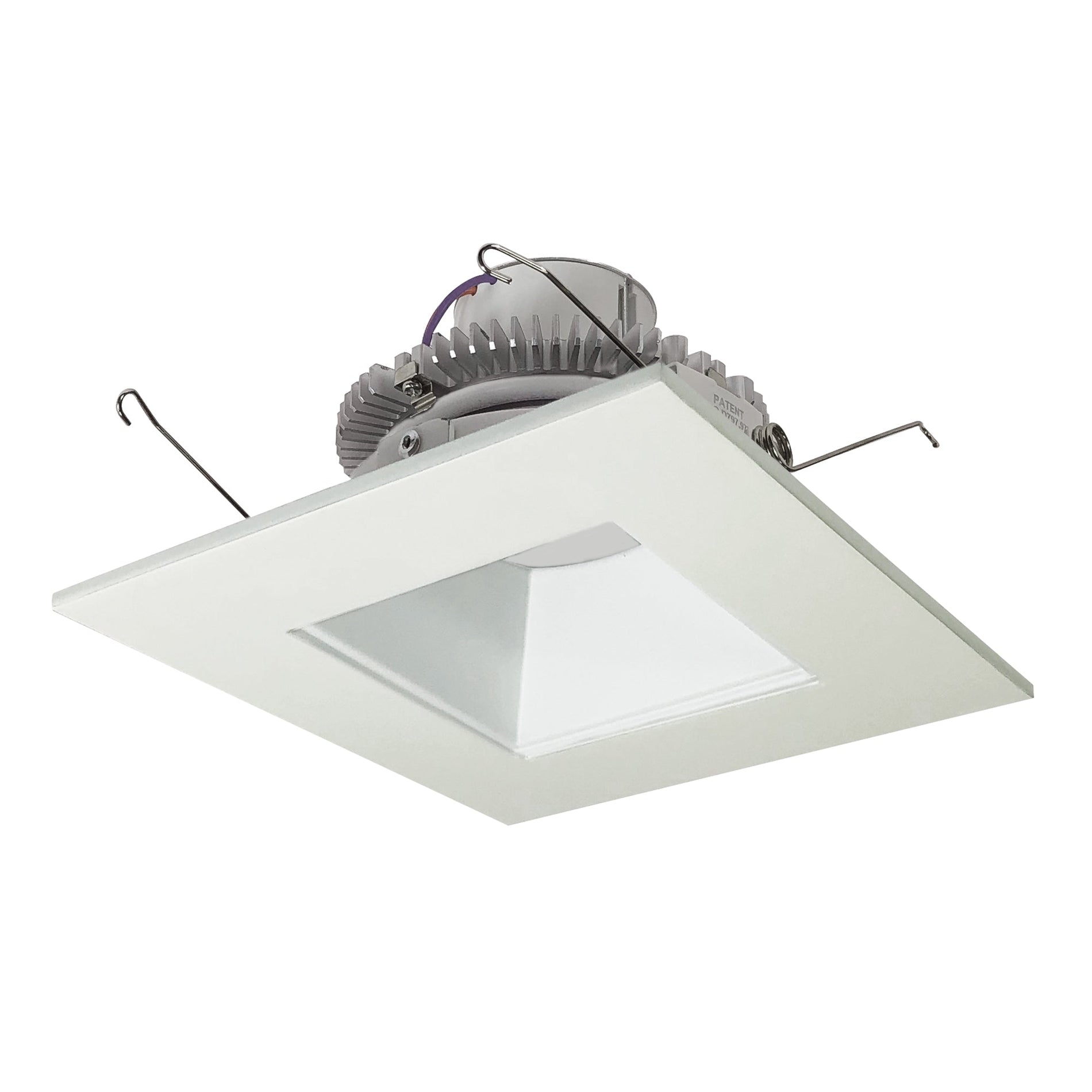

Nora NLCBC2-65630WW/ALE4 6 inch Cobalt Click Square Retrofit Reflector with Square Aperture, 750lm / 10W, 3000K, White Reflector / White Flange, 120-277V input; Phase or 0-10V dimming
6" Cobalt Click LED retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The patented "Click" system allows the aluminum spun trim to be easily changed in the field with the help of spring mounting clips which properly secure them to the LED module.
Input Voltage: 120-277VAC
Lumens / Wattage: 750lm / 10W
Color Temperature: 3000K
Dimming: Phase or 0-10V (requires Nora LED dedicated housing with /4W suffix)
Finish: White Reflector / White Flange
Included: Medium Base Retrofit Adapter
Listing: cULus classified for wet locations
Product Dossier
- SKU
- NLCBC2-65630WW/ALE4
- Brand
- Nora Lighting
- Fixture Type
- 6 inch Cobalt Click Retrofit
- Price
- $117.27
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
6" Cobalt Click LED retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The patented "Click" system allows the aluminum spun trim to be easily changed in the field with the help of spring mounting clips which properly secure them to the LED module.
Input Voltage: 120-277VAC
Lumens / Wattage: 750lm / 10W
Color Temperature: 3000K
Dimming: Phase or 0-10V (requires Nora LED dedicated housing with /4W suffix)
Finish: White Reflector / White Flange
Included: Medium Base Retrofit Adapter
Listing: cULus classified for wet locations
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
