Nora Lighting

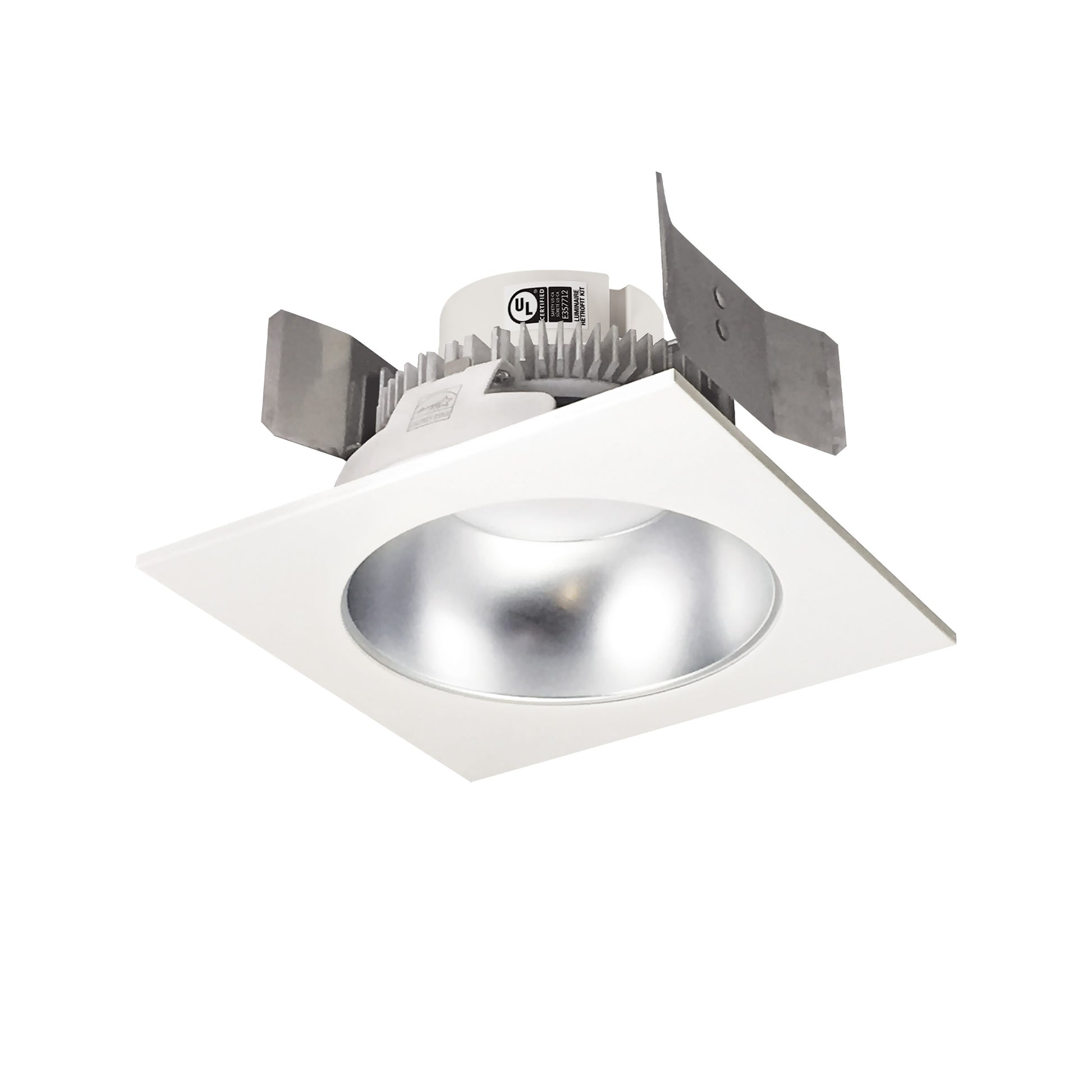

5" Cobalt Click Square Retrofit Reflector with Round aperture, 1000lm / 13.5W, Selectable CCT, Diffused Clear/White
5" Cobalt Click LED retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The patented "Click" system allows the aluminum spun trim to be easily changed in the field with the help of spring mounting clips which properly secure them to the LED module. Input Voltage: 120VAC Lumens / Wattage: 1000lm / 13.5W Color Temperature: Selectable CCT (27K/30K/35K/40K/50K) Dimming: Triac or ELV Finish: Diffused Clear Reflector / White Flange Included: Medium Base Retrofit Adapter Listing: cULus classified for wet locations
Product details
- Manufacturer SKU: NLCBC2-553TWDW/10
- UPC: 732180269167
- Base item: NLCBC2-553
- Product family: 5" Cobalt Click Retrofit
- Product line: LE86
- Category: Recessed
- Finish: Diffused Clear / White
- Lumen output: 1000lm
- Wattage: 13.5W
- Color temperature: Selectable CCT (27K / 30K / 35K / 40K / 50K)
- CRI: 90
- Safety listing: cULus
- Location rating: Wet
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 6.25 in
- Product width: 6.25 in
- Product height: 3.5 in
- Product weight: 1.05 lb
- Estimated shipping weight: 3 lb
- Individual package length: 7 in
- Individual package width: 7 in
- Individual package height: 5.25 in
- Individual package weight: 1.45 lb
- Master carton quantity: 6
- Master carton length: 22 in
- Master carton width: 15 in
- Master carton height: 7 in
- Master carton weight: 11 lb
Compliance and technical data
- CEC item number: NLCBC2-5********/10
- CEC substitute item: NLCBC2-55330DW/10
- CEC database: Yes
- Contains battery: No
