Nora Lighting

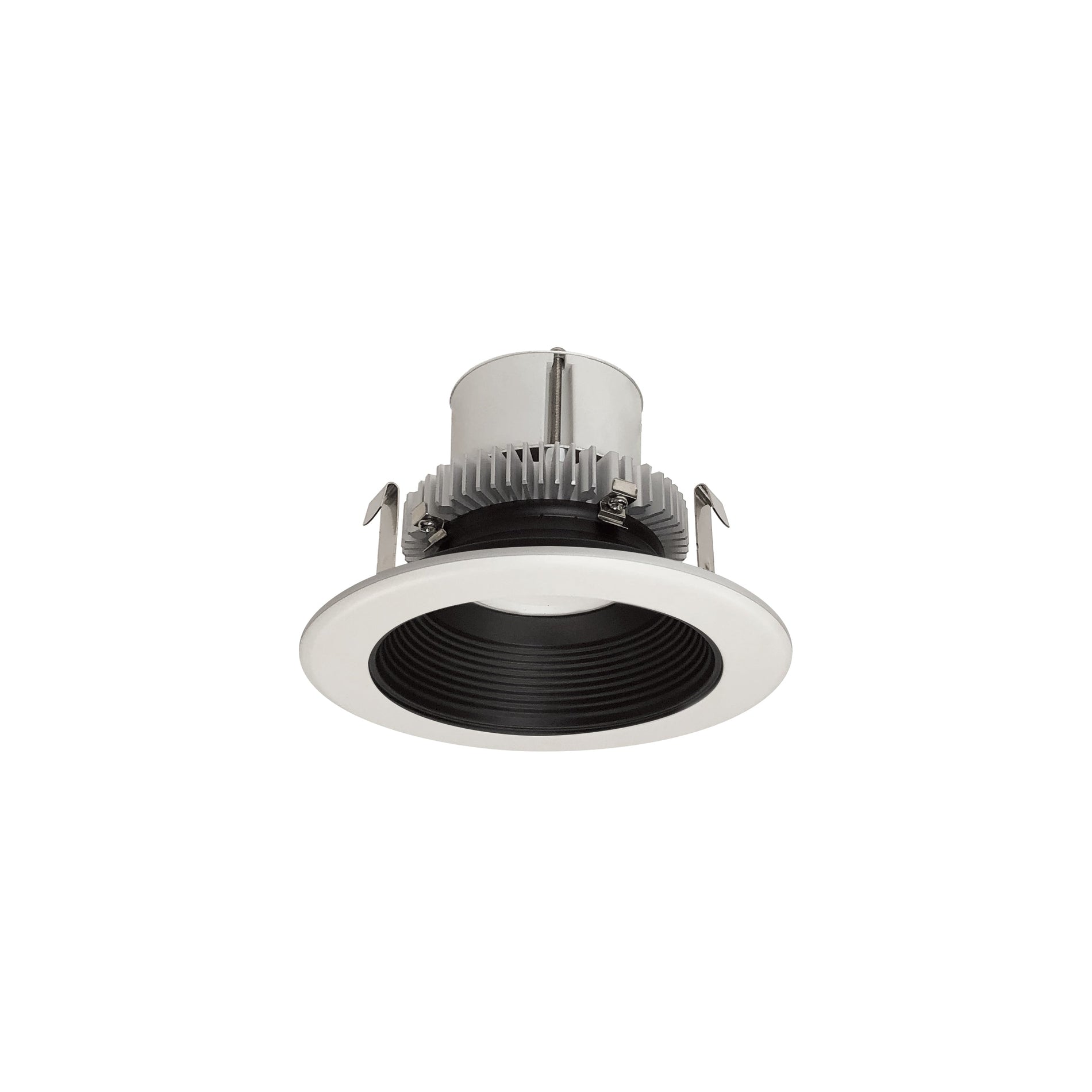

4" Cobalt Click Round Retrofit Baffle, 1000lm / 12W, 4000K, Black Baffle / White Flange, 120-277V input; Phase or 0-10V dimming
4" Cobalt Click LED retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The patented "Click" system allows the aluminum spun trim to be easily changed in the field with the help of spring mounting clips which properly secure them to the LED module. Input Voltage: 120-277VAC Lumens / Wattage: 1000lm / 12W Color Temperature: 4000K Dimming: Phase or 0-10V (requires Nora LED dedicated housing with /4W suffix) Finish: Black Baffle / White Flange Included: Medium Base Retrofit Adapter Listing: cULus classified for wet locations
Product details
- Manufacturer SKU: NLCBC2-45240BW/10LE4
- UPC: 732180257102
- Base item: NLCBC2-452
- Product family: 4" Cobalt Click Retrofit
- Product line: LE85
- Category: Recessed
- Finish: Black / White
- Lumen output: 1000lm
- Wattage: 12W
- Color temperature: 4000K
- CRI: 90
- Safety listing: cULus
- Location rating: Wet
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 5.25 in
- Product width: 5.25 in
- Product height: 3.75 in
- Product weight: 0.95 lb
- Estimated shipping weight: 3 lb
- Individual package length: 6 in
- Individual package width: 6 in
- Individual package height: 5 in
- Individual package weight: 1.15 lb
- Master carton quantity: 6
- Master carton length: 19 in
- Master carton width: 13 in
- Master carton height: 6 in
- Master carton weight: 8 lb
Compliance and technical data
- CEC item number: NLCBC2-4********/10
- CEC substitute item: NLCBC2-45227BW/10EM
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NLCBC2-45240BW/10LE4
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $119.34
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" Cobalt Click LED retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The patented "Click" system allows the aluminum spun trim to be easily changed in the field with the help of spring mounting clips which properly secure them to the LED module. Input Voltage: 120-277VAC Lumens / Wattage: 1000lm / 12W Color Temperature: 4000K Dimming: Phase or 0-10V (requires Nora LED dedicated housing with /4W suffix) Finish: Black Baffle / White Flange Included: Medium Base Retrofit Adapter Listing: cULus classified for wet locations
Product details
- Manufacturer SKU: NLCBC2-45240BW/10LE4
- UPC: 732180257102
- Base item: NLCBC2-452
- Product family: 4" Cobalt Click Retrofit
- Product line: LE85
- Category: Recessed
- Finish: Black / White
- Lumen output: 1000lm
- Wattage: 12W
- Color temperature: 4000K
- CRI: 90
- Safety listing: cULus
- Location rating: Wet
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 5.25 in
- Product width: 5.25 in
- Product height: 3.75 in
- Product weight: 0.95 lb
- Estimated shipping weight: 3 lb
- Individual package length: 6 in
- Individual package width: 6 in
- Individual package height: 5 in
- Individual package weight: 1.15 lb
- Master carton quantity: 6
- Master carton length: 19 in
- Master carton width: 13 in
- Master carton height: 6 in
- Master carton weight: 8 lb
Compliance and technical data
- CEC item number: NLCBC2-4********/10
- CEC substitute item: NLCBC2-45227BW/10EM
- CEC database: Yes
- Contains battery: No
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
