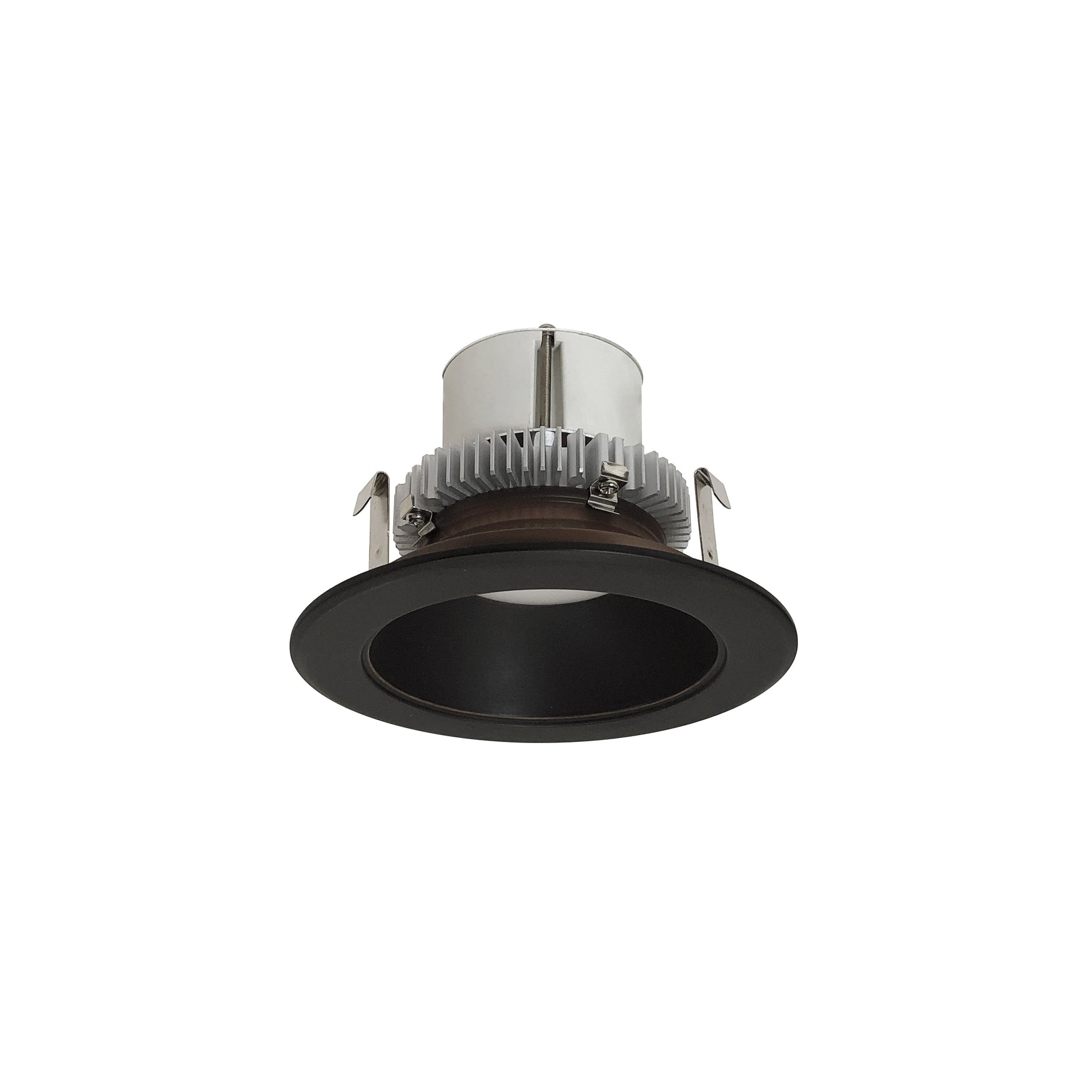

4" Cobalt Click LED retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The patented "Click" system allows the aluminum spun trim to be easily changed in the field with the help of spring mounting clips which properly secure them to the LED module.
Input Voltage: 120-277VAC
Lumens / Wattage: 750lm / 10W
Color Temperature: 3500K
Dimming: Phase or 0-10V (requires Nora LED dedicated housing with /4W suffix)
Finish: Bronze Reflector / Bronze Flange
Included: Medium Base Retrofit Adapter
Listing: cULus classified for wet locations

Product details

• Manufacturer SKU: NLCBC2-45135BZBZ/ALE4
• UPC: 732180261604
• Base item: NLCBC2-451
• Product family: 4" Cobalt Click Retrofit
• Product line: LE85
• Category: Recessed
• Finish: Bronze
• Lumen output: 750lm
• Wattage: 10W
• Color temperature: 3500K
• CRI: 90
• Safety listing: cULus
• Location rating: Wet
• Country of origin: CHN
• Certifications: Title 24: Yes

Dimensions and packaging

• Product length: 5.25 in
• Product width: 5.25 in
• Product height: 3.75 in
• Product weight: 0.95 lb
• Estimated shipping weight: 3 lb
• Individual package length: 6 in
• Individual package width: 6 in
• Individual package height: 5 in
• Individual package weight: 1.15 lb
• Master carton quantity: 6
• Master carton length: 19 in
• Master carton width: 13 in
• Master carton height: 6 in
• Master carton weight: 8 lb

Compliance and technical data

• CEC item number: NLCBC2-4********/A
• CEC substitute item: NLCBC2-45140COCO/10
• CEC database: Yes
• Contains battery: No

Resources

• Manufacturer product page
• Specification sheet
• Sales sheet
• Installation instructions
