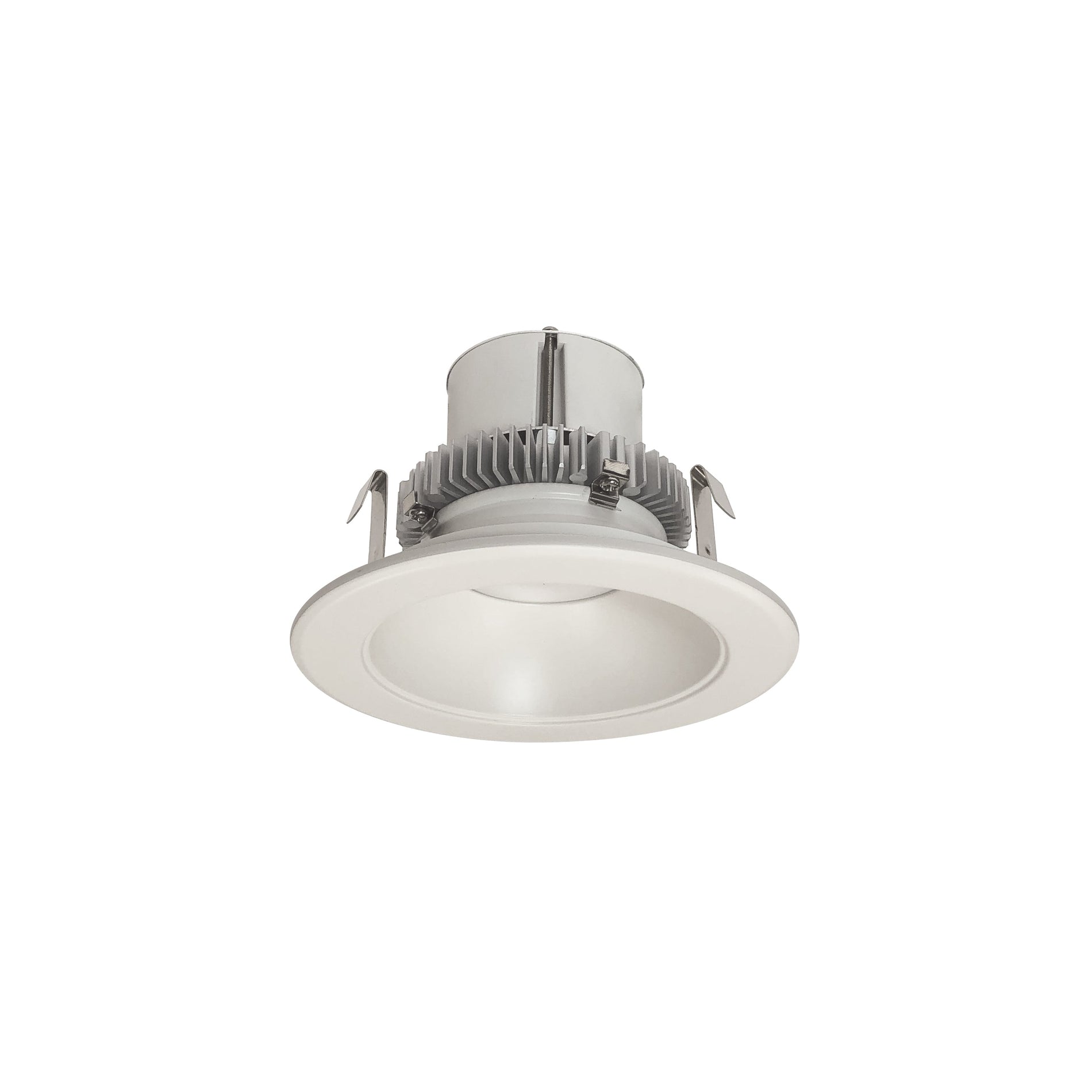

Nora Lighting
4" Cobalt Click Round Retrofit Reflector, 100lm / 12W, 2700K, Warm White Reflector / Warm White Flange, 120-277V input; Phase or 0-10V dimming, Pre-Wired for Emergency
4" Cobalt Click LED retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The patented "Click" system allows the aluminum spun trim to be easily changed in the field with the help of spring mounting clips which properly secure them to the LED module. Input Voltage: 120-277VAC Lumens / Wattage: 1000lm / 12W Color Temperature: 2700K Dimming: Phase or 0-10V (requires Nora LED dedicated housing with /6W suffix) Finish: Warm White Reflector / Warm White Flange Included: Medium Base Retrofit Adapter Listing: cULus classified for wet locations Emergency: Luminaire includes connections for Nora LED dedicated housing with emergency battery (/EM)
Product details
- Manufacturer SKU: NLCBC2-45127WW/10LE4EM
- UPC: 732180255856
- Base item: NLCBC2-451
- Product family: 4" Cobalt Click Retrofit
- Product line: LE85
- Category: Recessed
- Finish: Warm White
- Lumen output: 1000lm
- Wattage: 12W
- Color temperature: 2700K
- CRI: 90
- Safety listing: cULus
- Location rating: Wet
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 5.25 in
- Product width: 5.25 in
- Product height: 3.75 in
- Product weight: 0.95 lb
- Individual package length: 6 in
- Individual package width: 6 in
- Individual package height: 5 in
- Individual package weight: 1.15 lb
- Master carton quantity: 6
- Master carton length: 19 in
- Master carton width: 13 in
- Master carton height: 6 in
- Master carton weight: 8 lb
Compliance and technical data
- CEC item number: NLCBC2-4********/10
- CEC substitute item: NLCBC2-45130NN/10EM
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NLCBC2-45127WW/10LE4EM
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $121.95
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" Cobalt Click LED retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The patented "Click" system allows the aluminum spun trim to be easily changed in the field with the help of spring mounting clips which properly secure them to the LED module. Input Voltage: 120-277VAC Lumens / Wattage: 1000lm / 12W Color Temperature: 2700K Dimming: Phase or 0-10V (requires Nora LED dedicated housing with /6W suffix) Finish: Warm White Reflector / Warm White Flange Included: Medium Base Retrofit Adapter Listing: cULus classified for wet locations Emergency: Luminaire includes connections for Nora LED dedicated housing with emergency battery (/EM)
