Nora Lighting

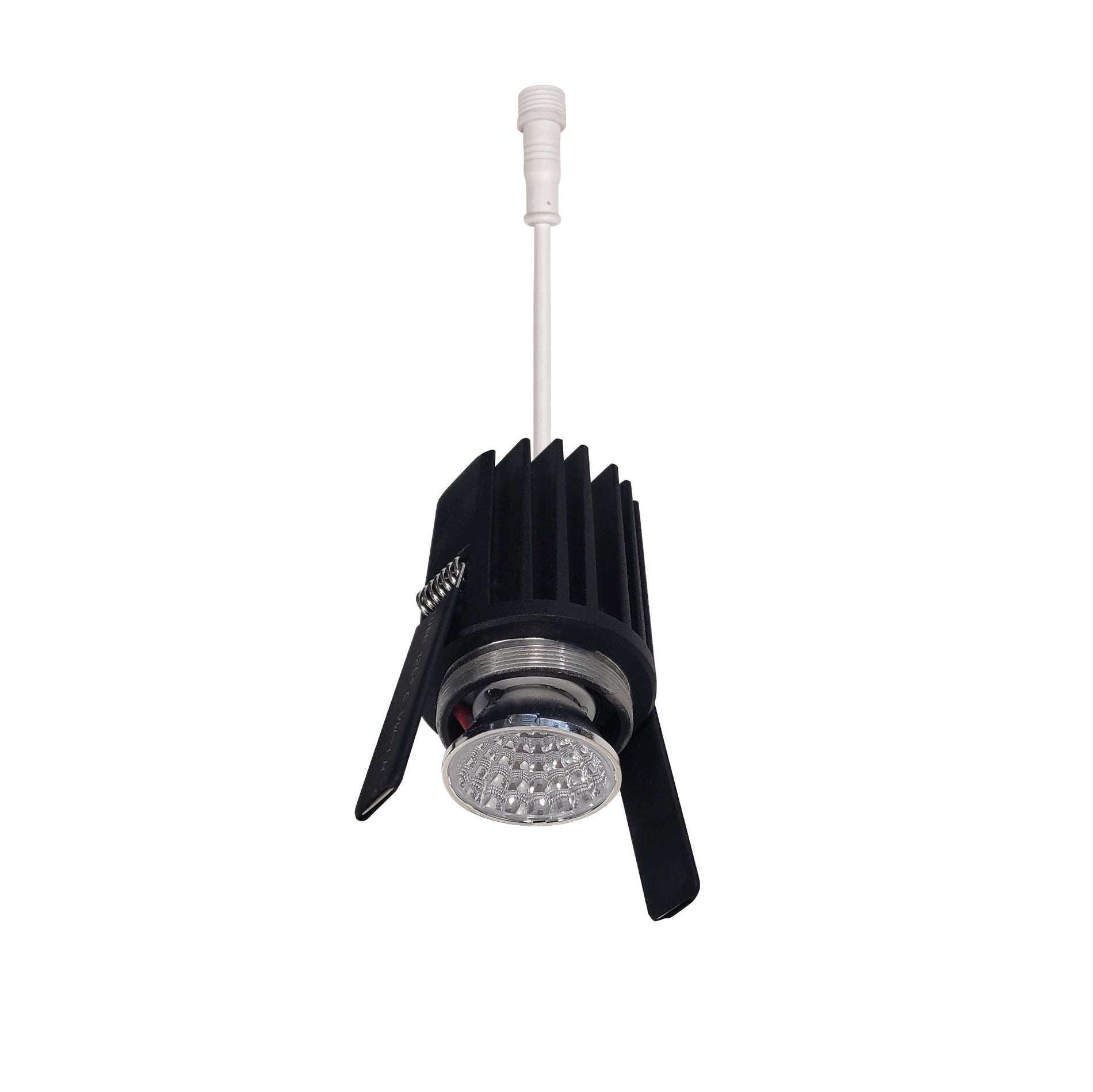

1" Iolite Can-less LED Module, 650lm / 9W, Comfort Dim (3000K-1900K)
IC rated aluminum die-cast LED module with two tension steel spring clips. Module includes a 6" quick connect wire and threaded to fit the trim and transfer heat. Iolite can-less LED modules require a compatible driver box and trim. Compatible driver box: NJCB-09 Compatible trims: NIOC-1RNB, NIOC-1RNG, NIOC-1SNG Color Temperature: Comfort Dim (3000K-1900K) Lumens / Wattage: 650lm / 9W Optics: Three field changeable optics included Accessories: NCA-EW-4: 4' Quick Connect Extension Cable NCA-EW-10: 10' Quick Connect Extension Cable
Product details
- Manufacturer SKU: NIOC-1LED9CDX
- UPC: 732180745036
- Base item: NIOC-1LED
- Product family: 1" Iolite Can-less Module
- Product line: LE96
- Category: Recessed
- Finish: Unfinished
- Lumen output: 650lm
- Wattage: 9W
- Color temperature: Comfort Dim (3000K-1900K)
- CRI: 90
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 2.75 in
- Product width: 2 in
- Product height: 3.625 in
- Product weight: 0.35 lb
- Estimated shipping weight: 1 lb
- Individual package length: 5.375 in
- Individual package width: 3.25 in
- Individual package height: 2.875 in
- Individual package weight: 0.45 lb
- Master carton quantity: 60
- Master carton length: 23 in
- Master carton width: 11 in
- Master carton height: 16 in
- Master carton weight: 28 lb
Compliance and technical data
- CEC item number: NIOC-1LED9**X
- CEC substitute item: NIOC-1LED940X
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NIOC-1LED9CDX
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $41.31
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
IC rated aluminum die-cast LED module with two tension steel spring clips. Module includes a 6" quick connect wire and threaded to fit the trim and transfer heat. Iolite can-less LED modules require a compatible driver box and trim. Compatible driver box: NJCB-09 Compatible trims: NIOC-1RNB, NIOC-1RNG, NIOC-1SNG Color Temperature: Comfort Dim (3000K-1900K) Lumens / Wattage: 650lm / 9W Optics: Three field changeable optics included Accessories: NCA-EW-4: 4' Quick Connect Extension Cable NCA-EW-10: 10' Quick Connect Extension Cable
Product details
- Manufacturer SKU: NIOC-1LED9CDX
- UPC: 732180745036
- Base item: NIOC-1LED
- Product family: 1" Iolite Can-less Module
- Product line: LE96
- Category: Recessed
- Finish: Unfinished
- Lumen output: 650lm
- Wattage: 9W
- Color temperature: Comfort Dim (3000K-1900K)
- CRI: 90
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 2.75 in
- Product width: 2 in
- Product height: 3.625 in
- Product weight: 0.35 lb
- Estimated shipping weight: 1 lb
- Individual package length: 5.375 in
- Individual package width: 3.25 in
- Individual package height: 2.875 in
- Individual package weight: 0.45 lb
- Master carton quantity: 60
- Master carton length: 23 in
- Master carton width: 11 in
- Master carton height: 16 in
- Master carton weight: 28 lb
Compliance and technical data
- CEC item number: NIOC-1LED9**X
- CEC substitute item: NIOC-1LED940X
- CEC database: Yes
- Contains battery: No
