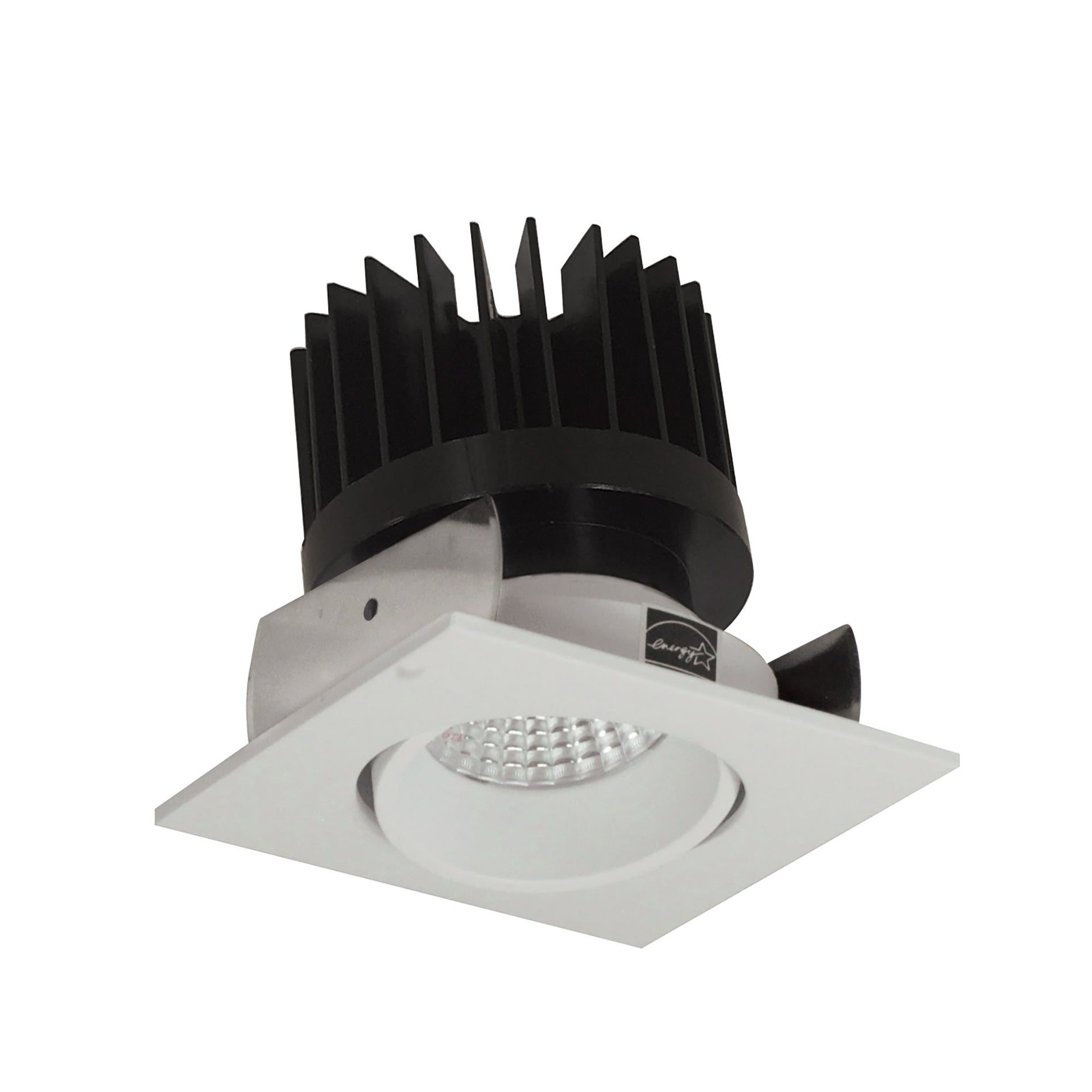

2" Iolite LED downlights require a dedicated Iolite new construction housing. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
Adjustability: 15°
Compatible Housing: NHIOICD-215, NHIOICD-220, NHIOICD-225, NHIOICDCP-215, NHIOICDCP-220, NHIOICDCP-225
Lumens / Wattage: Up to 2500lm / 28W (varies by housing)
Color Temperature: 5000K
Color Rendering Index: 90 CRI
Beam Spread: Three field changeable optics included
Finish: Warm White Reflector / Warm White Flange
Listing: cULus listed for damp locations
Accessories: NIO-AS, NIO-HC, NIO-FMMR-2S

Product details

• Manufacturer SKU: NIOB-2SC50XWW/HL
• UPC: 732180428892
• Base item: NIOB-2SC
• Product family: 2" Iolite Dedicated Trim
• Product line: LE46
• Category: Recessed
• Finish: Warm White Reflector / Warm White Flange
• Lumen output: 1500lm / 2000lm / 2500lm (varies by housing)
• Wattage: 20W / 24W / 28W
• Color temperature: 5000K
• CRI: 90
• Safety listing: cULus
• Location rating: Damp
• Country of origin: CHN
• Certifications: Title 24: Yes

Dimensions and packaging

• Product length: 3.625 in
• Product width: 3.625 in
• Individual package length: 9 in
• Individual package width: 6 in
• Individual package height: 3.5 in
• Individual package weight: 1.1 lb
• Master carton quantity: 12
• Master carton length: 19 in
• Master carton width: 13 in
• Master carton height: 12 in
• Master carton weight: 15 lb

Compliance and technical data

• CEC item number: NIOB-2********
• CEC substitute item: NIOB-2SCCDXHW
• CEC database: Yes
• Contains battery: No

Resources

• Manufacturer product page
• Specification sheet
• Sales sheet
• Installation instructions
• Video
