Nora Lighting

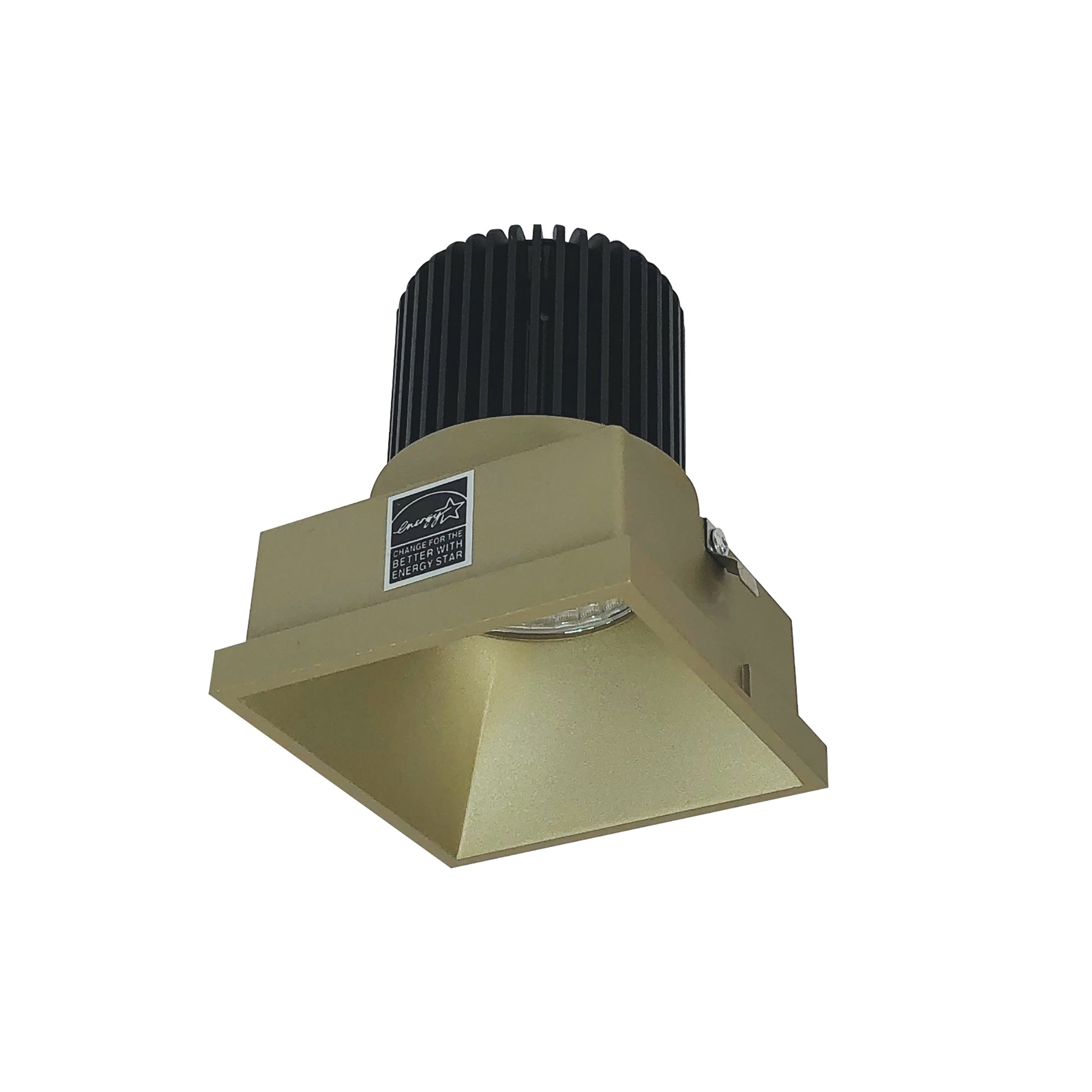

Nora NIO-4STLNDC40XCH/10 4 inch Iolite LED Square Trimless Downlight, 1000lm / 14W, 4000K, Champagne Haze Finish
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflector optimizes visual cut-off.
Required Trimless Mud Plate: NIO-TLMR-4SA
Compatible Housing: NHIOICD-48. NHIOICDCP-48
Lumens / Wattage: 1000lm / 14W
Color Temperature: 4000K
Color Rendering Index: 90 CRI
Beam Spread: Three field changeable optics included
Finish: Champagne Haze
Listing: cULus listed for wet locations
Accessories: NIO-AS, NIO-HC, NIO-TLSUCTION
Product Dossier
- SKU
- NIO-4STLNDC40XCH/10
- Brand
- Nora Lighting
- Fixture Type
- 4 inch Iolite Dedicated Trimless
- Price
- $87.57
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflector optimizes visual cut-off.
Required Trimless Mud Plate: NIO-TLMR-4SA
Compatible Housing: NHIOICD-48. NHIOICDCP-48
Lumens / Wattage: 1000lm / 14W
Color Temperature: 4000K
Color Rendering Index: 90 CRI
Beam Spread: Three field changeable optics included
Finish: Champagne Haze
Listing: cULus listed for wet locations
Accessories: NIO-AS, NIO-HC, NIO-TLSUCTION
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
