Nora Lighting

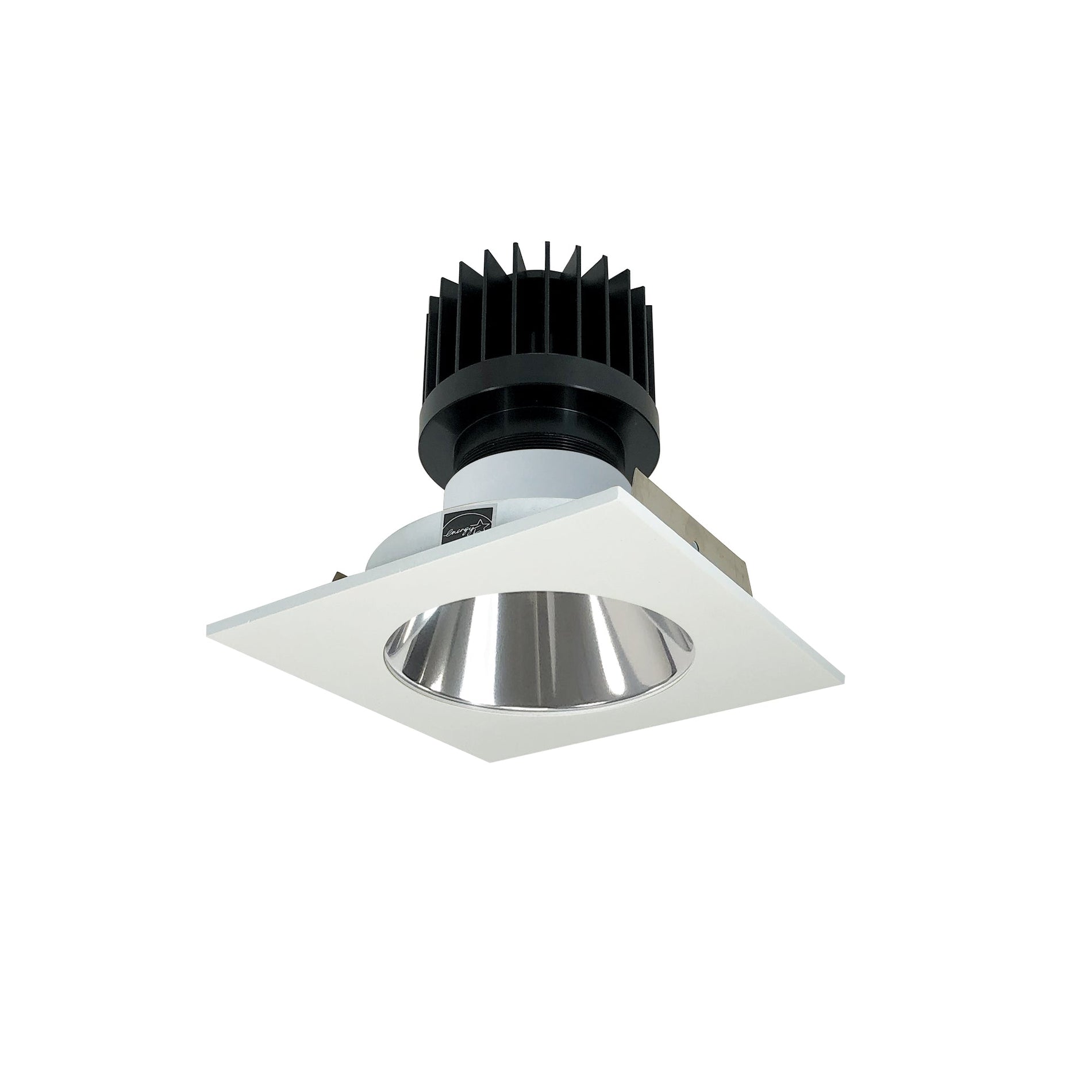

4" Iolite LED Square Reflector with Round Aperture, 1500lm/2000lm/2500lm (varies by housing), 3000K, Specular Clear Reflector / Bright White Flange
4" Iolite LED downlights require a dedicated Iolite new construction housing. Deep regressed cone reflectors optimize visual cut-off. Compatible Housing: NHIOICD-415, NHIOICD-420, NHIOICD-425, NHIOICDCP-415, NHIOICDCP-420, NHIOICDCP-425 Lumens / Wattage: Up to 2500lm / 28W (varies by housing) Color Temperature: 3000K Color Rendering Index: 90 CRI Beam Spread: Three field changeable optics included Finish: Specular Clear Reflector / Bright White Flange Listing: cULus listed for wet locations Accessories: NIO-AS, NIO-HC, NIO-FMMR-4S
Product details
- Manufacturer SKU: NIO-4SNDC30XCMPW/HL
- UPC: 732180556038
- Base item: NIO-4SNDC
- Product family: 4" Iolite Dedicated Trim
- Product line: LE46
- Category: Recessed
- Finish: Specular Clear Reflector / Bright White Flange
- Lumen output: 1500lm / 2000lm / 2500lm (varies by housing)
- Wattage: 20W / 24W / 28W
- Color temperature: 3000K
- CRI: 90
- Safety listing: cULus
- Location rating: Wet
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Master carton quantity: 12
Compliance and technical data
- CEC item number: NIO-4********
- CEC substitute item: NIO-4SNDC30XMPW/HL
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NIO-4SNDC30XCMPW/HL
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $116.10
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" Iolite LED downlights require a dedicated Iolite new construction housing. Deep regressed cone reflectors optimize visual cut-off. Compatible Housing: NHIOICD-415, NHIOICD-420, NHIOICD-425, NHIOICDCP-415, NHIOICDCP-420, NHIOICDCP-425 Lumens / Wattage: Up to 2500lm / 28W (varies by housing) Color Temperature: 3000K Color Rendering Index: 90 CRI Beam Spread: Three field changeable optics included Finish: Specular Clear Reflector / Bright White Flange Listing: cULus listed for wet locations Accessories: NIO-AS, NIO-HC, NIO-FMMR-4S
Product details
- Manufacturer SKU: NIO-4SNDC30XCMPW/HL
- UPC: 732180556038
- Base item: NIO-4SNDC
- Product family: 4" Iolite Dedicated Trim
- Product line: LE46
- Category: Recessed
- Finish: Specular Clear Reflector / Bright White Flange
- Lumen output: 1500lm / 2000lm / 2500lm (varies by housing)
- Wattage: 20W / 24W / 28W
- Color temperature: 3000K
- CRI: 90
- Safety listing: cULus
- Location rating: Wet
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Master carton quantity: 12
Compliance and technical data
- CEC item number: NIO-4********
- CEC substitute item: NIO-4SNDC30XMPW/HL
- CEC database: Yes
- Contains battery: No
