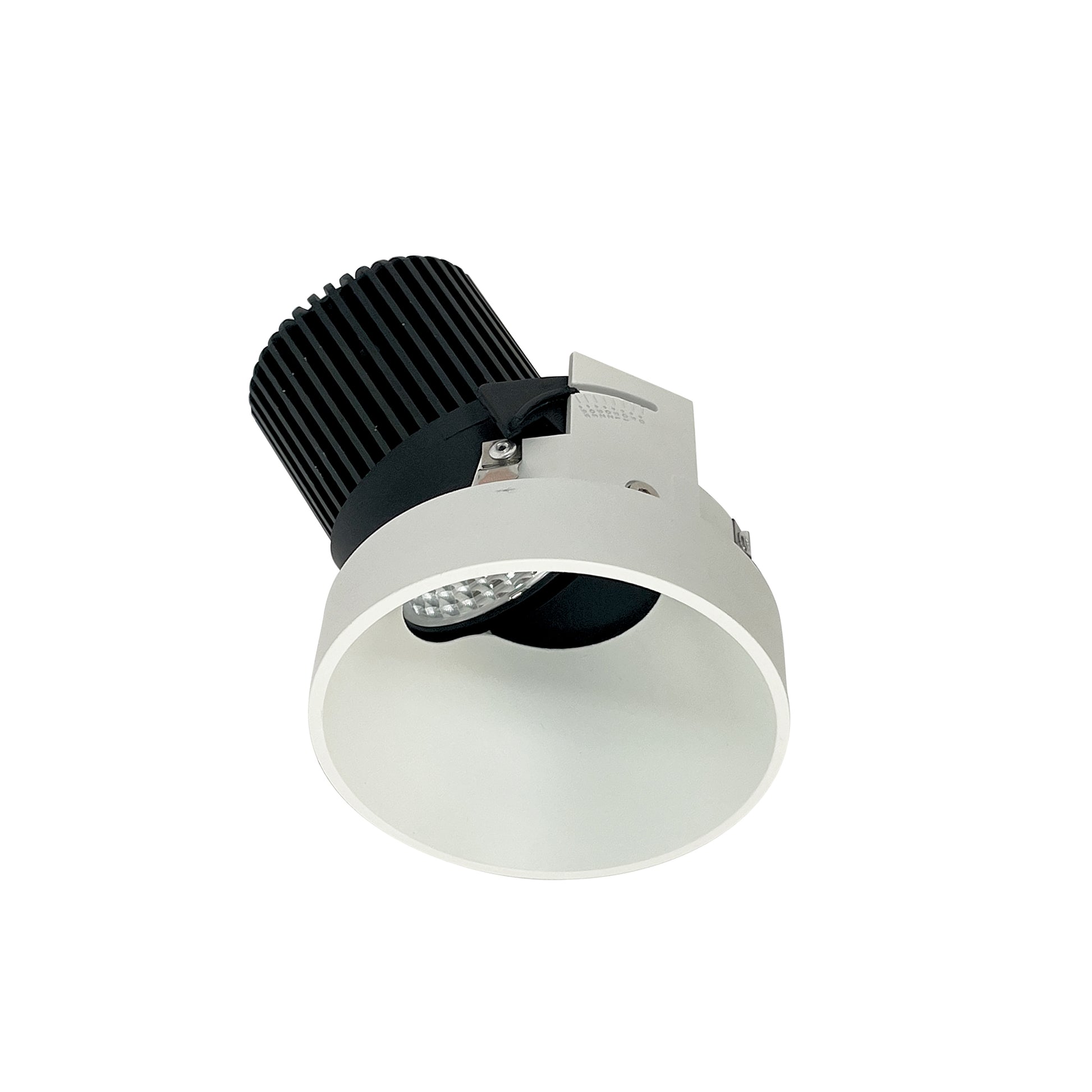

4" Iolite LED Round Trimless Adjustable Slot, 1000lm / 14W, 3000K, Warm White Finish
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Regressed cone reflector optimizes visual cut-off and adjust up to 35°. Required Trimless Mud Plate: NIO-TLMR-4RA Compatible Housing: NHIOICD-48. NHIOICDCP-48 Lumens / Wattage: 1000lm / 14W Color Temperature: 3000K Color Rendering Index: 90 CRI Beam Spread: Three field changeable optics included Finish: Warm White Listing: cULus listed for damp locations Accessories: NIO-AS, NIO-HC, NIO-4RTFA
Product details
- Manufacturer SKU: NIO-4RTSLA30XWW/10
- UPC: 732180557912
- Base item: NIO-4RTSLA
- Product family: 4" Iolite Dedicated Trimless
- Product line: LE46
- Category: Recessed
- Finish: Warm White
- Lumen output: 1000lm
- Wattage: 14W
- Color temperature: 3000K
- CRI: 90
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 3.25 in
- Product width: 3.25 in
- Product height: 4 in
- Product weight: 0.8 lb
- Estimated shipping weight: 2 lb
- Individual package length: 9 in
- Individual package width: 6 in
- Individual package height: 3.5 in
- Individual package weight: 0.95 lb
- Master carton quantity: 12
- Master carton length: 17 in
- Master carton width: 13 in
- Master carton height: 12 in
- Master carton weight: 13 lb
Compliance and technical data
- CEC item number: NIO-4********
- CEC substitute item: NIO-4RTSLA35QWW
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NIO-4RTSLA30XWW/10
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $77.40
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Regressed cone reflector optimizes visual cut-off and adjust up to 35°. Required Trimless Mud Plate: NIO-TLMR-4RA Compatible Housing: NHIOICD-48. NHIOICDCP-48 Lumens / Wattage: 1000lm / 14W Color Temperature: 3000K Color Rendering Index: 90 CRI Beam Spread: Three field changeable optics included Finish: Warm White Listing: cULus listed for damp locations Accessories: NIO-AS, NIO-HC, NIO-4RTFA
