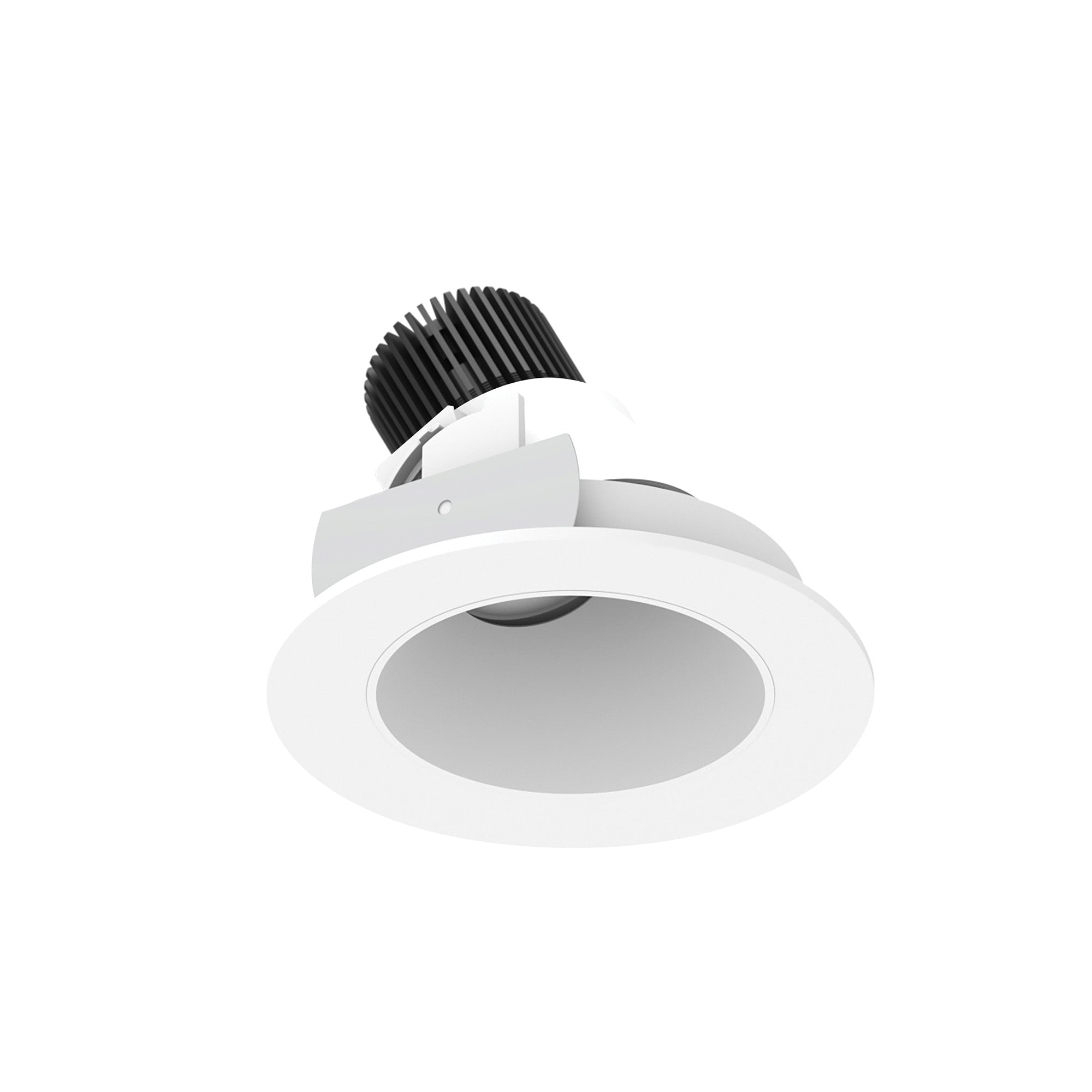

4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Regressed cone construction optimizes visual cut-off and adjust up to 30°.
Adjustability: 30° (new construction) and 25° (remodel)
Compatible Housing: NHIOICD-48. NHIOICDCP-48, NHRIOIC-48
Lumens / Wattage: 800lm / 14W
Color Temperature: Comfort Dim (3100K-2000K)
Color Rendering Index: 90 CRI
Beam Spread: Three field changeable optics included
Finish: Bright White Reflector / Bright White Flange
Listing: cULus listed for damp locations
Accessories: NIO-AS, NIO-HC, NIO-FMMR-4R

Product details

• Manufacturer SKU: NIO-4RSLACDXMPW
• UPC: 732180570546
• Base item: NIO-4RSLA
• Product family: 4" Iolite Dedicated Trim
• Product line: LE46
• Category: Recessed
• Finish: Bright White
• Lumen output: 800lm
• Wattage: 14W
• Color temperature: Comfort Dim (3100K-2000K)
• CRI: 90
• Safety listing: cULus
• Location rating: Damp
• Country of origin: CHN
• Certifications: Title 24: Yes

Dimensions and packaging

• Individual package length: 9 in
• Individual package width: 6 in
• Individual package height: 3.5 in
• Master carton quantity: 12
• Master carton length: 17 in
• Master carton width: 13 in
• Master carton height: 12 in

Compliance and technical data

• CEC item number: NPRLV-4*******
• CEC substitute item: NIO-4RSLACDXMPW/HL
• CEC database: Yes
• Contains battery: No
