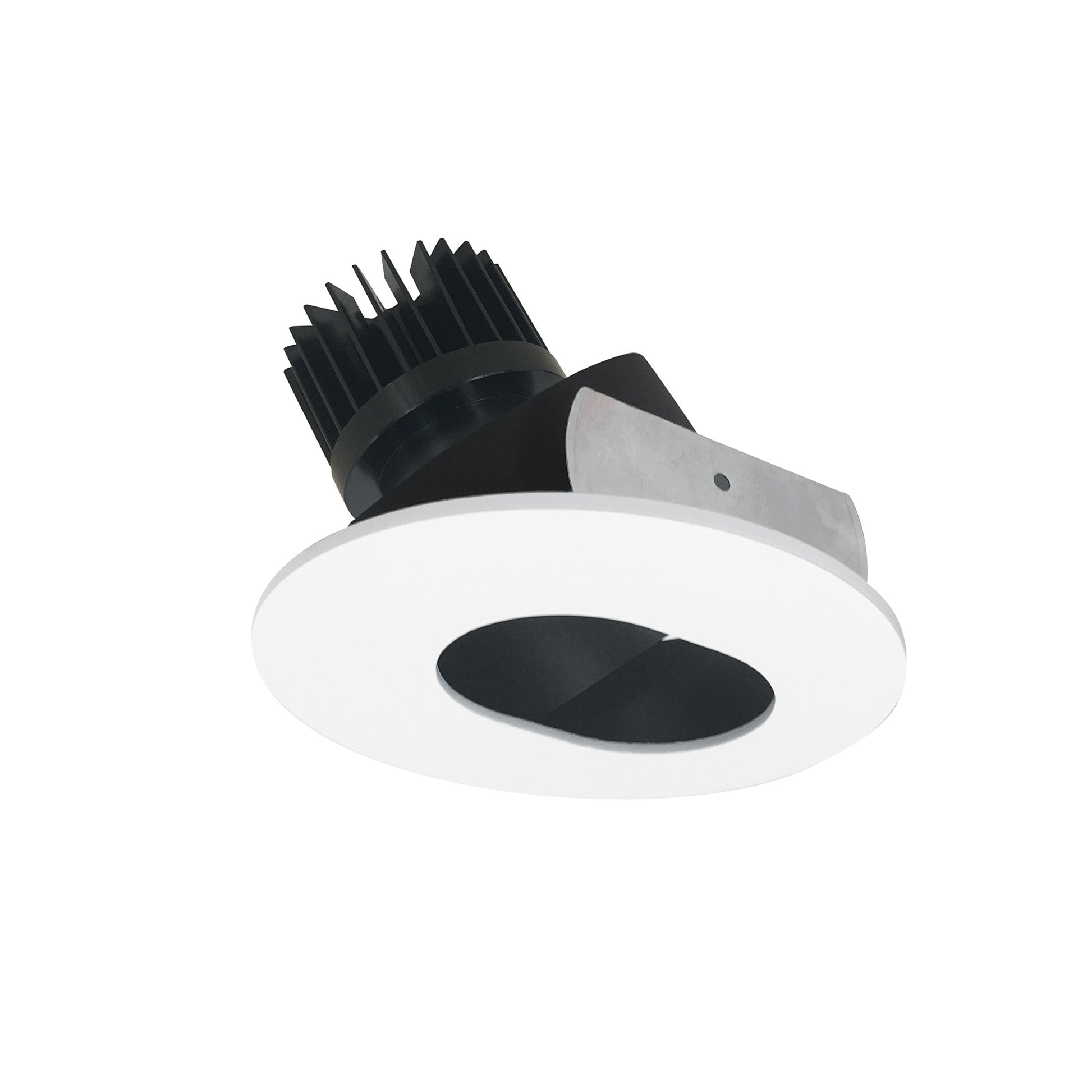

4" Iolite LED downlights require a dedicated Iolite new construction housing. Adjustable slot aperture focuses the beam spread through 2-5/8" x 2" opening.
Adjustability: 25°
Compatible Housing: NHIOICD-415, NHIOICD-420, NHIOICD-425, NHIOICDCP-415, NHIOICDCP-420, NHIOICDCP-425
Lumens / Wattage: Up to 2500lm / 28W (varies by housing)
Color Temperature: 5000K
Color Rendering Index: 90 CRI
Beam Spread: Three field changeable optics included
Finish: Black Aperture / Bright White Flange
Listing: cULus listed for damp locations
Accessories: NIO-AS, NIO-HC, NIO-FMMR-4R

Product details

• Manufacturer SKU: NIO-4RSL50XBMPW/HL
• UPC: 732180435326
• Base item: NIO-4RSL
• Product family: 4" Iolite Dedicated Trim
• Product line: LE46
• Category: Recessed
• Finish: Black Slot Aperture / Bright White Flange
• Lumen output: 1500lm / 2000lm / 2500lm (varies by housing)
• Wattage: 20W / 24W / 28W
• Color temperature: 5000K
• CRI: 90
• Safety listing: cULus
• Location rating: Damp
• Country of origin: CHN
• Certifications: Title 24: Yes

Dimensions and packaging

• Product length: 4.875 in
• Product width: 4.875 in
• Individual package length: 9 in
• Individual package width: 6 in
• Individual package height: 3.5 in
• Individual package weight: 1.4 lb
• Master carton quantity: 12
• Master carton length: 19 in
• Master carton width: 13 in
• Master carton height: 12 in
• Master carton weight: 18 lb

Compliance and technical data

• CEC item number: NIO-4********
• CEC substitute item: NIO-4RSL40XBMPW/HL
• CEC database: Yes
• Contains battery: No
