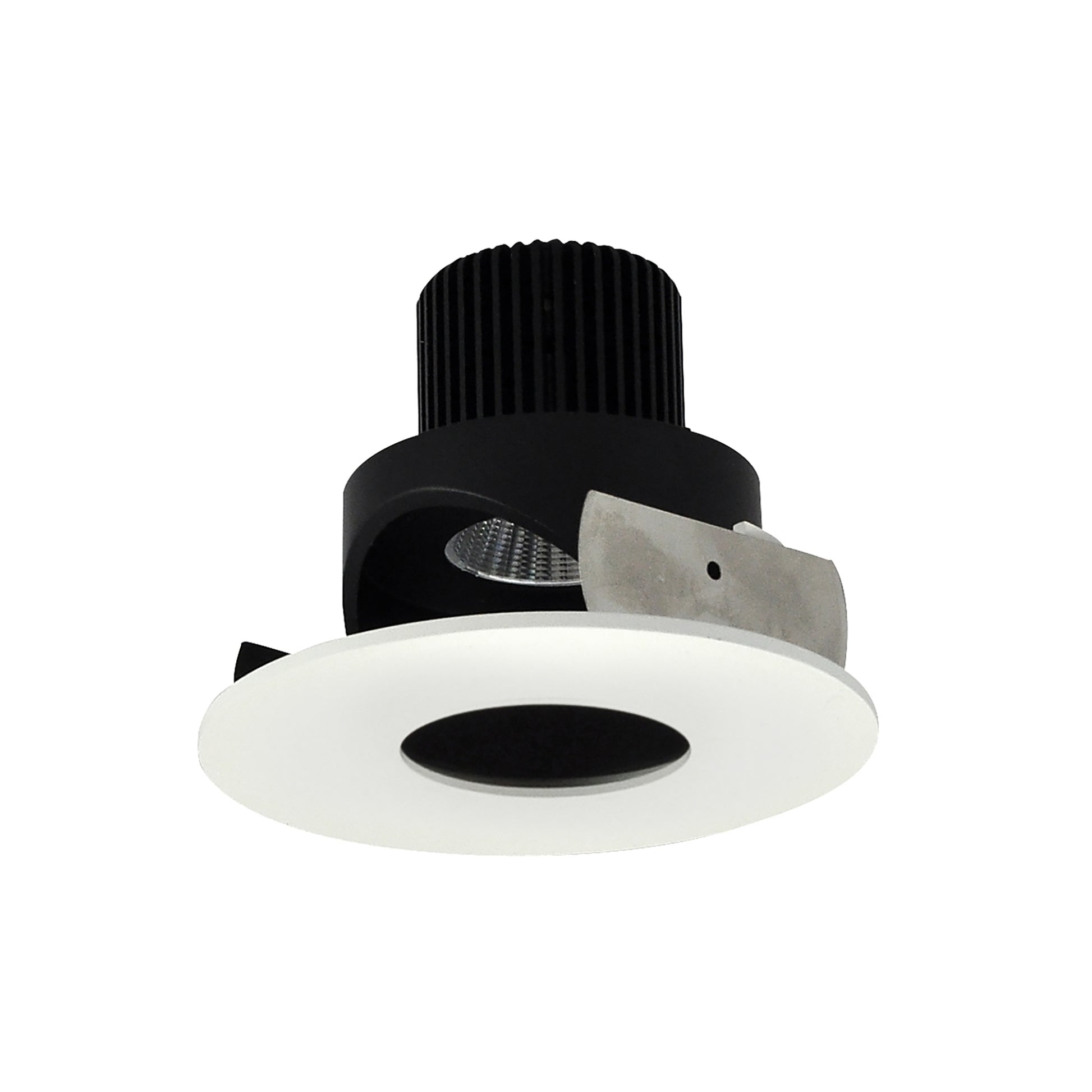

4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Adjustable pinhole focuses the beam spread through small opening.
Adjustability: 30° (new construction) and 20° (remodel)
Compatible Housing: NHIOICD-48. NHIOICDCP-48, NHRIOIC-48
Lumens / Wattage: 1000lm / 14W
Color Temperature: 3500K
Color Rendering Index: 90 CRI
Beam Spread: Three field changeable optics included
Finish: Black Pinhole / Bright White Flange
Listing: cULus listed for damp locations
Accessories: NIO-AS, NIO-HC, NIO-FMMR-4R

Product details

• Manufacturer SKU: NIO-4RPHA35XBMPW/10
• UPC: 732180491902
• Base item: NIO-4RPHA
• Product family: 4" Iolite Dedicated Trim
• Product line: LE46
• Category: Recessed
• Finish: Black Pinhole / Bright White Flange
• Lumen output: 1000lm
• Wattage: 14W
• Color temperature: 3500K
• CRI: 90
• Safety listing: cULus
• Location rating: Damp
• Country of origin: CHN
• Certifications: Title 24: Yes

Dimensions and packaging

• Estimated shipping weight: 2 lb
• Individual package length: 9 in
• Individual package width: 6 in
• Individual package height: 3.5 in
• Individual package weight: 1.1 lb
• Master carton quantity: 12
• Master carton length: 17 in
• Master carton width: 13 in
• Master carton height: 12 in
• Master carton weight: 14 lb

Compliance and technical data

• CEC item number: NIO-4********
• CEC substitute item: NIO-4RPHA35XWW/10
• CEC database: Yes
• Contains battery: No
