Nora Lighting

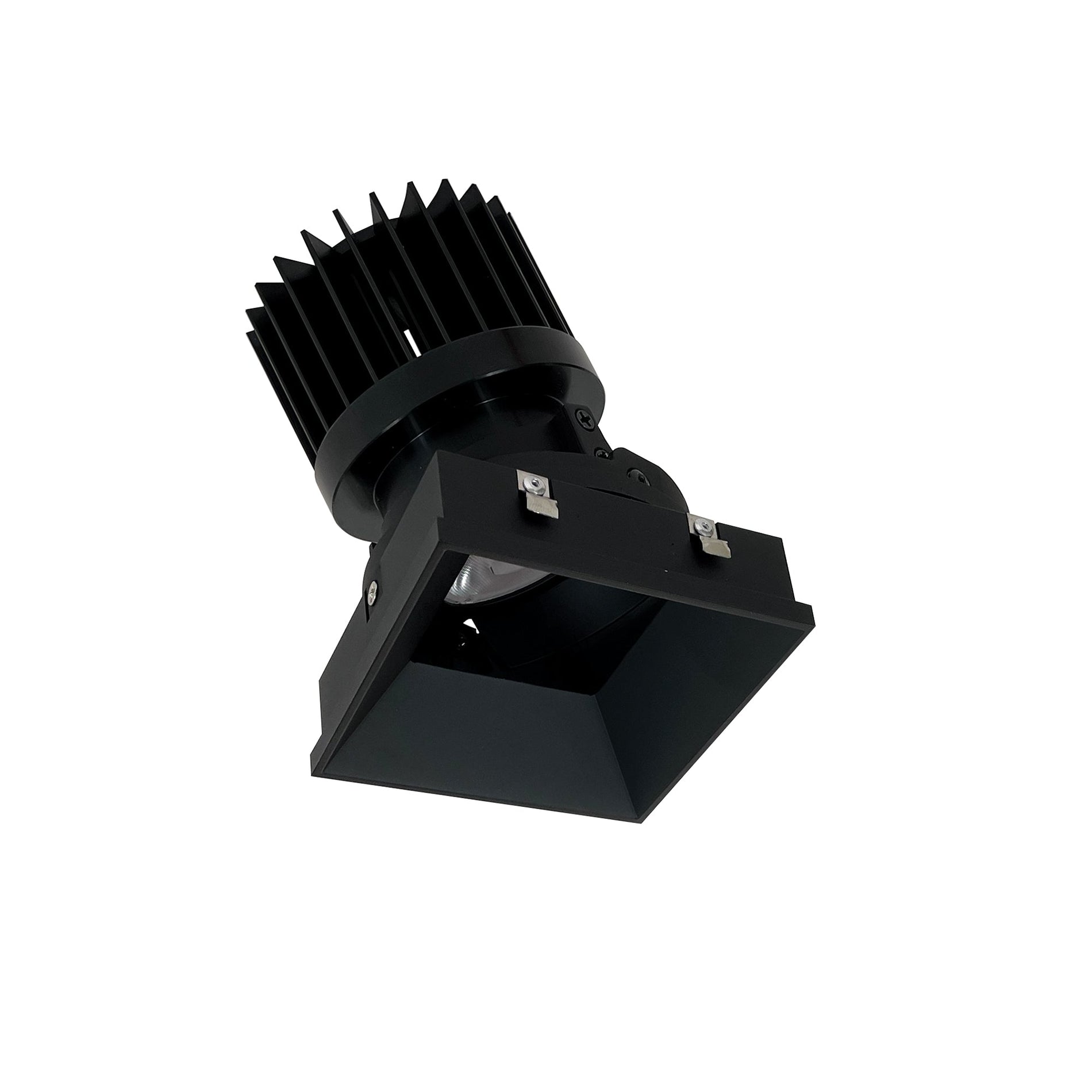

4" Iolite PLUS Square Trimless Adjustable, 1500lm/2000lm (varies by housing), 2700K, Black Finish
4" PLUS Trimless Iolite downlights have no exposed flange and do not extend beyond the ceiling plane. Iolite PLUS Trimless requires a PLUS Trimless Mud Ring and New Construction housing. Deep regressed cone reflector optimizes visual cut-off and adjust up to 35°. Required Trimless Mud Plate: NIO-TLMR-4PR Compatible Housing: NHIOICD-4PS15, NHIOICD-4PS20, NHIOICDCP-4PS15, NHIOICDCP-4PS20 Lumens / Wattage: Up to 2000lm / 24W (varies by housing) Color Temperature: 2700K Color Rendering Index: 90 CRI Beam Spread: Three field changeable optics included Finish: Black Listing: cULus listed for damp locations Accessories: NIO-AS, NIO-HC
Product details
- Manufacturer SKU: NIO-4PSTLA27XBB/HL
- UPC: 732180556601
- Base item: NIO-4PSTLA
- Product family: 4" Iolite Dedicated Trimless
- Product line: LE46
- Category: Recessed
- Finish: Black
- Lumen output: 1500lm or 2000lm (varies by housing)
- Wattage: 20W or 24W
- Color temperature: 2700K
- CRI: 90
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 3.5 in
- Product width: 3.5 in
- Product height: 4.5 in
- Product weight: 1 lb
- Estimated shipping weight: 2 lb
- Individual package length: 9.75 in
- Individual package width: 4 in
- Individual package height: 3.375 in
- Individual package weight: 1.3 lb
- Master carton quantity: 24
- Master carton length: 21 in
- Master carton width: 13 in
- Master carton height: 15 in
- Master carton weight: 34 lb
Compliance and technical data
- CEC item number: NIO-4********
- CEC substitute item: NIO-4PSTLA30XBB/HL
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NIO-4PSTLA27XBB/HL
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $118.71
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" PLUS Trimless Iolite downlights have no exposed flange and do not extend beyond the ceiling plane. Iolite PLUS Trimless requires a PLUS Trimless Mud Ring and New Construction housing. Deep regressed cone reflector optimizes visual cut-off and adjust up to 35°. Required Trimless Mud Plate: NIO-TLMR-4PR Compatible Housing: NHIOICD-4PS15, NHIOICD-4PS20, NHIOICDCP-4PS15, NHIOICDCP-4PS20 Lumens / Wattage: Up to 2000lm / 24W (varies by housing) Color Temperature: 2700K Color Rendering Index: 90 CRI Beam Spread: Three field changeable optics included Finish: Black Listing: cULus listed for damp locations Accessories: NIO-AS, NIO-HC
Product details
- Manufacturer SKU: NIO-4PSTLA27XBB/HL
- UPC: 732180556601
- Base item: NIO-4PSTLA
- Product family: 4" Iolite Dedicated Trimless
- Product line: LE46
- Category: Recessed
- Finish: Black
- Lumen output: 1500lm or 2000lm (varies by housing)
- Wattage: 20W or 24W
- Color temperature: 2700K
- CRI: 90
- Safety listing: cULus
- Location rating: Damp
- Country of origin: CHN
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 3.5 in
- Product width: 3.5 in
- Product height: 4.5 in
- Product weight: 1 lb
- Estimated shipping weight: 2 lb
- Individual package length: 9.75 in
- Individual package width: 4 in
- Individual package height: 3.375 in
- Individual package weight: 1.3 lb
- Master carton quantity: 24
- Master carton length: 21 in
- Master carton width: 13 in
- Master carton height: 15 in
- Master carton weight: 34 lb
Compliance and technical data
- CEC item number: NIO-4********
- CEC substitute item: NIO-4PSTLA30XBB/HL
- CEC database: Yes
- Contains battery: No
