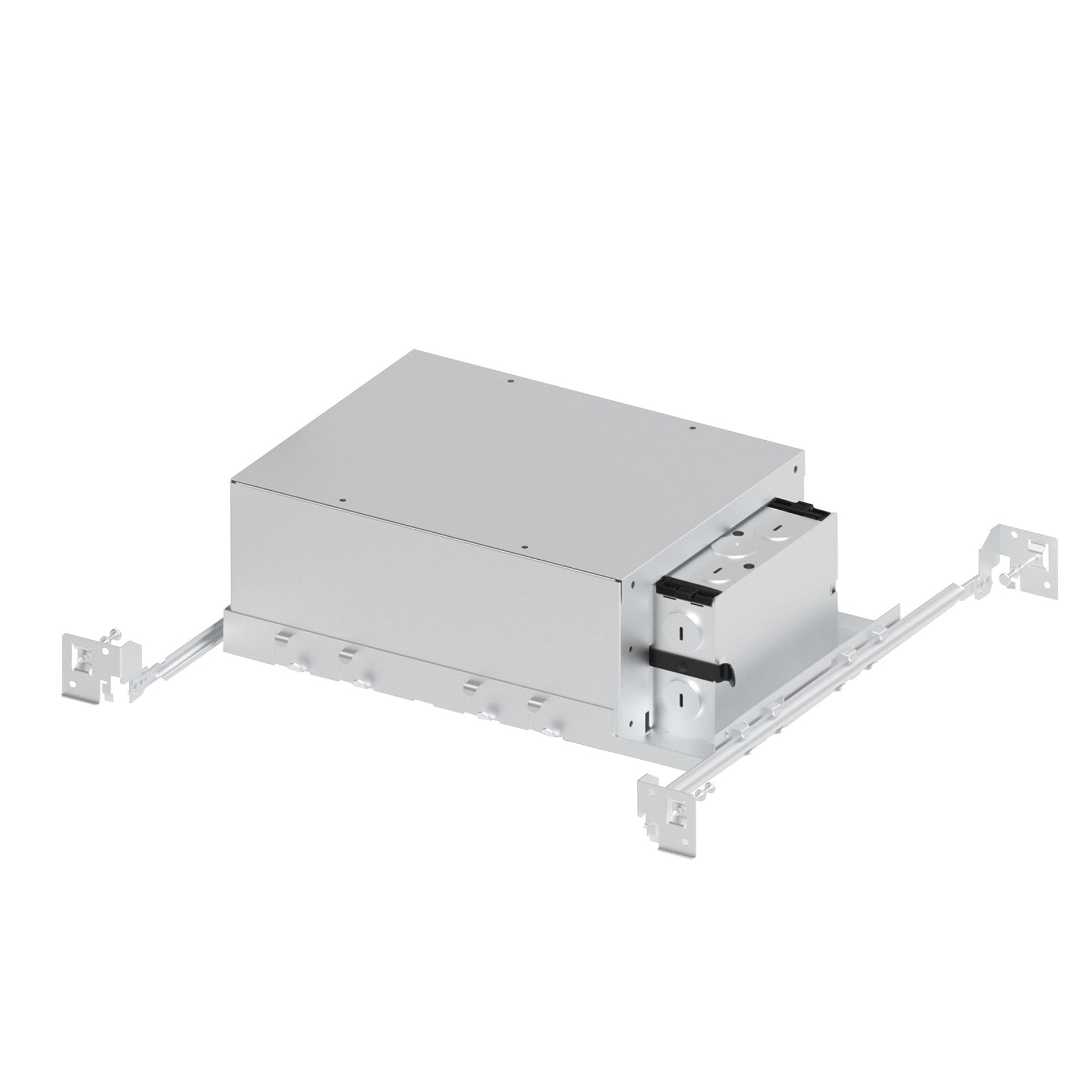

Nora NHIOICDCP-48LE4 4 inch Iolite LED Dedicated Chicago Plenum New Construction Housing, 12W, 120-277V input; Triac / ELV / 0-10V dimming
Chicago plenum rated (CCEA) new construction housing for use in insulated ceilings can be in direct contact with insulation. Airtight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
Input Voltage: 120-277V
Wattage: 12W
Dimming: Phase (Triac or ELV) or 0-10V
Ceiling Thickness: Up to 0.5in. Extension collar accessory for ceilings up to 2", ordered separately (NIO-4EXTC2)
Compatible Trims: NIO-4RC, NIO-4RD, NIO-4RG, NIO-4RNB, NIO-4RNDC, NIO-4RPH, NIO-4RPHA, NIO-4RSL, NIO-4RSLA, NIO-4RTLA, NIO-4RTLNDC, NIO-4RW, NIO-4SC, NIO-4SD, NIO-4SDSQ, NIO-4SG, NIO-4SNB, NIO-4SNDC, NIO-4SNDSQ, NIO-4SW
Listing: cULus Listed for Damp Locations (Wet locations when used with compatible trim)
Product Dossier
- SKU
- NHIOICDCP-48LE4
- Brand
- Nora Lighting
- Fixture Type
- 4 inch Iolite Dedicated Housing
- Price
- $123.75
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
Chicago plenum rated (CCEA) new construction housing for use in insulated ceilings can be in direct contact with insulation. Airtight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
Input Voltage: 120-277V
Wattage: 12W
Dimming: Phase (Triac or ELV) or 0-10V
Ceiling Thickness: Up to 0.5in. Extension collar accessory for ceilings up to 2", ordered separately (NIO-4EXTC2)
Compatible Trims: NIO-4RC, NIO-4RD, NIO-4RG, NIO-4RNB, NIO-4RNDC, NIO-4RPH, NIO-4RPHA, NIO-4RSL, NIO-4RSLA, NIO-4RTLA, NIO-4RTLNDC, NIO-4RW, NIO-4SC, NIO-4SD, NIO-4SDSQ, NIO-4SG, NIO-4SNB, NIO-4SNDC, NIO-4SNDSQ, NIO-4SW
Listing: cULus Listed for Damp Locations (Wet locations when used with compatible trim)
