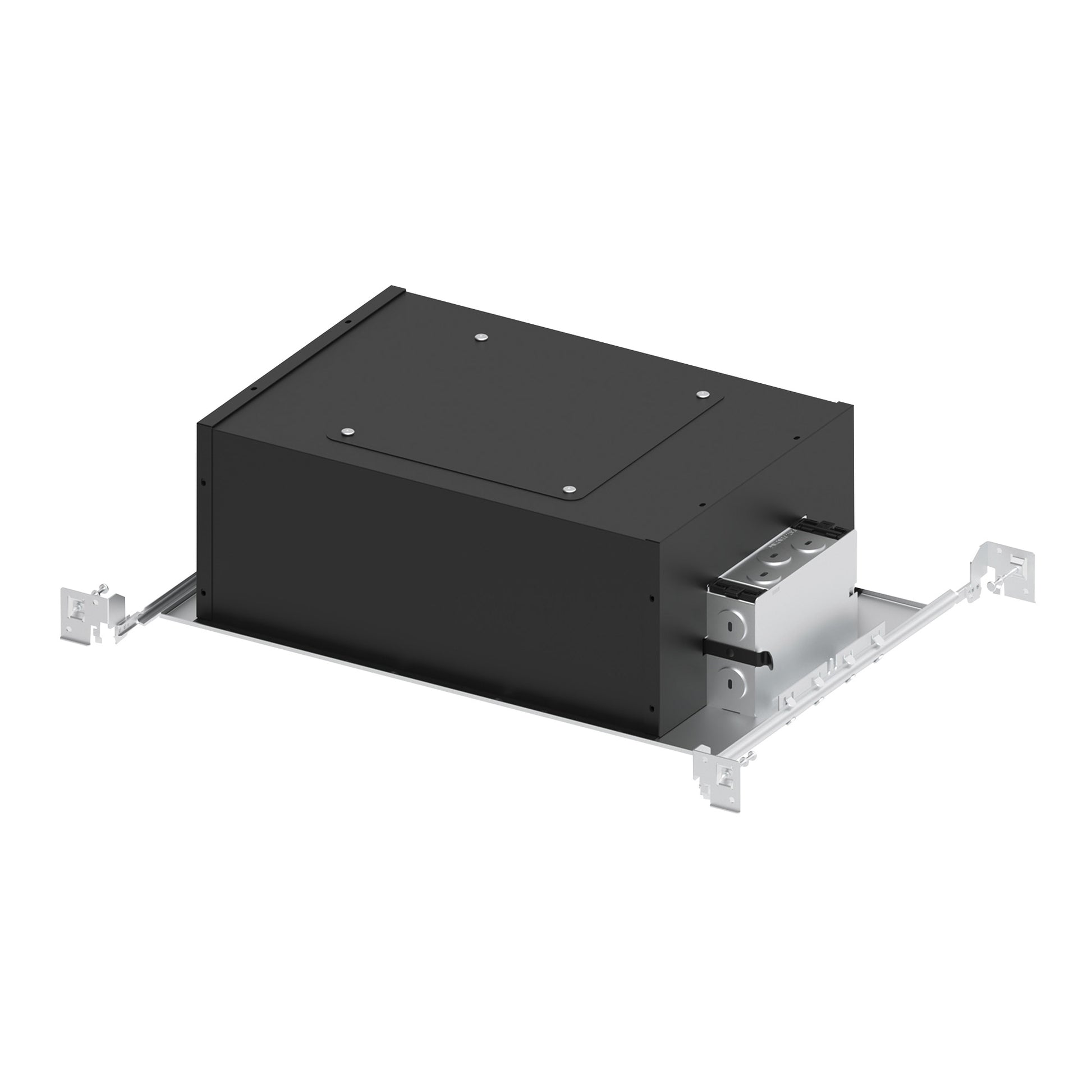

New construction housing for use in insulated ceilings can be in direct contact with insulation. Airtight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
Input Voltage: 120/277V
Wattage: 28W
Dimming: Phase (Triac or ELV) or 0-10V
Ceiling Thickness: Up to 0.5in. Extension collar accessory for ceilings up to 2", ordered separately (NIO-2EXTC2)
Compatible Trims: NIOB-2RC, NIOB-2RG, NIOB-2RNB, NIOB-2RNDC, NIOB-2RPH, NIOB-2RPHA, NIOB-2RSL, NIOB-2SC, NIOB-2SG, NIOB-2SNB, NIOB-2SNDC, NIOB-2SNDSQ
Emergency: Pre-wired for remote emergency battery, ordered separately (NEPK-07LEDUNV)
Listing: cULus Listed for Damp Locations (Wet locations when used with compatible trim)

Product details

• Manufacturer SKU: NHIOICD-225LE4/PEM
• UPC: 732180697533
• Base item: NHIOICD-225
• Product family: 2" Iolite Dedicated Housing
• Product line: LE46
• Category: Recessed
• Finish: Unfinished
• Wattage: 28W
• Safety listing: cULus
• Location rating: Damp
• Country of origin: CHN

Dimensions and packaging

• Product length: 17.125 in
• Product width: 10.75 in
• Product height: 5.75 in
• Product weight: 5.75 lb
• Estimated shipping weight: 8 lb
• Individual package length: 17 in
• Individual package width: 14 in
• Individual package height: 9 in
• Individual package weight: 8 lb
• Master carton quantity: 4
• Master carton length: 22 in
• Master carton width: 21 in
• Master carton height: 13 in
• Master carton weight: 26 lb

Compliance and technical data

• Contains battery: No

Resources

• Manufacturer product page
• Specification sheet
• Sales sheet
• Installation instructions
• Video
