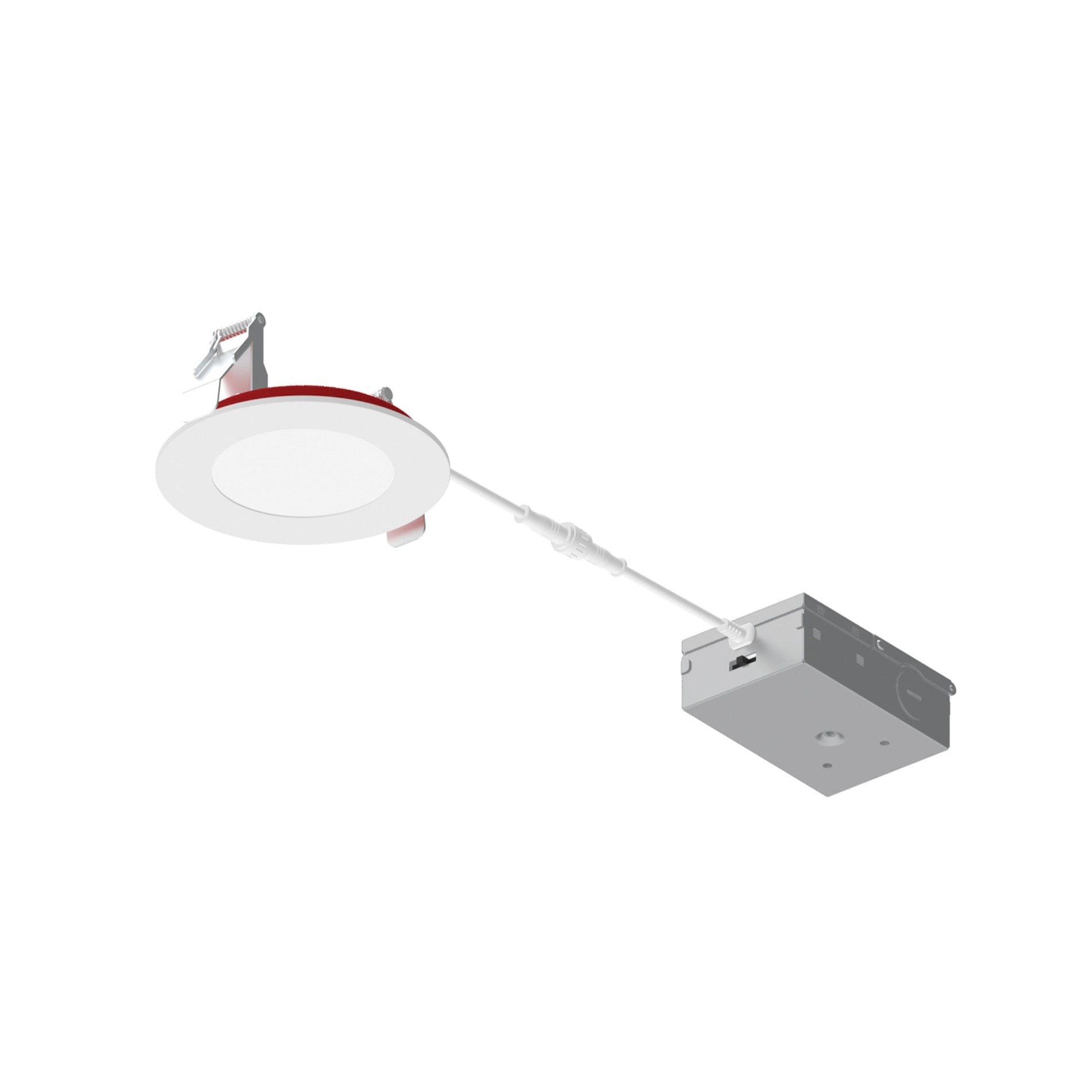

4" Fire Rated Can-less Flat LED Downlight, Selectable CCT, 1200lm / 12W, White Finish
4" Fire-rated can-less recessed LED downlights are ETL listed, tested and certified to UL 263 & ASTM E119 for 2-hour fire rating. Wafer design allows luminaires to be installed in shallow plenums and includes a selectable five color temperature switch. Multi-piece construction provides an extra layer of protection to prevent the spread of fire above the ceiling within a two-hour rating. Input Voltage: 120V Lumens / Wattage: 1200lm / 12W Color Temperature: Selectable CCT (27K/30K/35K/40K/50K) Color Rendering Index: 90+ CRI Dimming: Triac or ELV Finish: White Accessories: New construction frame-ins ordered separately (NF-R246 or NFC-R430) Rating: Wet Locations Listing: cETLus Listed and Certified for 2-Hour Rating to UL 263, ASTM E119, & CAN/ULC S101
Product details
- Manufacturer SKU: NFRC-R4W1TWMPW
- UPC: 732180609871
- Base item: NFRC-R4W1TW
- Product family: Fire Rated
- Product line: FR01
- Category: Recessed
- Finish: White
- Lumen output: 1200lm
- Wattage: 12W
- Color temperature: Selectable CCT (27K / 30K / 35K / 40K / 50K)
- CRI: 90
- Safety listing: cETLus
- Location rating: Wet
- Country of origin: THA
- Certifications: ENERGY STAR: Yes, Title 24: Yes
Dimensions and packaging
- Product length: 22.5 in
- Product width: 5.0625 in
- Product height: 2.4375 in
- Product weight: 1.25 lb
- Estimated shipping weight: 3 lb
- Individual package length: 5.5 in
- Individual package width: 7.25 in
- Individual package height: 5 in
- Individual package weight: 1.6 lb
- Master carton quantity: 4
- Master carton length: 12 in
- Master carton width: 8 in
- Master carton height: 11 in
- Master carton weight: 7 lb
Compliance and technical data
- CEC item number: NFRC-R4W1******
- CEC substitute item: NFRC-R4W2TWMPW
- CEC database: Yes
- Contains battery: No
Resources
Product Dossier
- SKU
- NFRC-R4W1TWMPW
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $44.91
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
4" Fire-rated can-less recessed LED downlights are ETL listed, tested and certified to UL 263 & ASTM E119 for 2-hour fire rating. Wafer design allows luminaires to be installed in shallow plenums and includes a selectable five color temperature switch. Multi-piece construction provides an extra layer of protection to prevent the spread of fire above the ceiling within a two-hour rating. Input Voltage: 120V Lumens / Wattage: 1200lm / 12W Color Temperature: Selectable CCT (27K/30K/35K/40K/50K) Color Rendering Index: 90+ CRI Dimming: Triac or ELV Finish: White Accessories: New construction frame-ins ordered separately (NF-R246 or NFC-R430) Rating: Wet Locations Listing: cETLus Listed and Certified for 2-Hour Rating to UL 263, ASTM E119, & CAN/ULC S101
