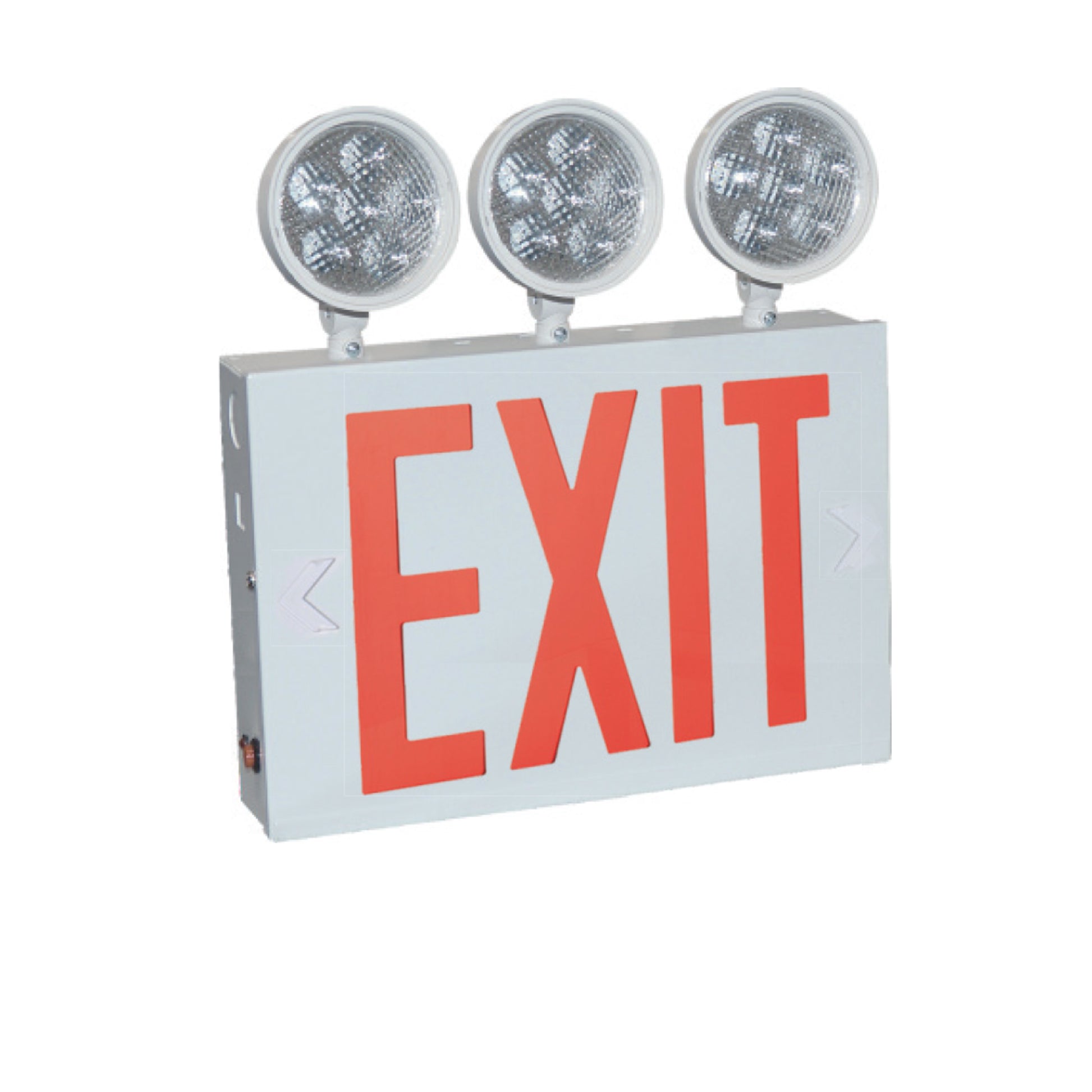

NYC Approved Steel LED Exit with Three 9W Adjustable Heads, Battery Backup, White Housing w/ Red Letters
LED exit sign with 8" red letters with 1" stroke and white housing. NYC Approved Steel LED Exit with three 1W / 100lm per head adjustable head LED emergency lights & battery backup. Rugged 20 gauge steel luminaires comply with the latest New York City codes and performance standards. Available in exit or exit/ emergency combination units. Input Voltage: 120/277VAC Wattage: 4.1W Lumens / Wattage Per Head: (3) 100lm / 1W Battery: Ni-Cad 3.6V 600mAH per head battery offers 90 minute emergency operation on fully charged battery. Testing: High-charge / ready operation indicator light and test button. Finish: White Face: Both double and a blank face are included with 8" red letters and 1" stroke. Knockout directional chevrons Mounting: Wall or side mount. All mounting hardware included. Listing: cULus Listed for Damp Locations, UL 924, NFPA 101, NYC Approved
Product details
- Manufacturer SKU: NEX-751-LED/R3
- UPC: 732180923427
- Base item: NEX-751-LED
- Product family: EXIT
- Product line: 5010
- Category: Recessed
- Finish: White
- Lumen output: 300lm
- Wattage: 4.1W
- Safety listing: UL 924, NYC Approved, NFPA-101
- Location rating: Damp
- Country of origin: CHN
Dimensions and packaging
- Product length: 14.75 in
- Product width: 2.25 in
- Product height: 17 in
- Product weight: 9.35 lb
- Estimated shipping weight: 14 lb
- Individual package length: 16.25 in
- Individual package width: 4.75 in
- Individual package height: 17.125 in
- Individual package weight: 11.5 lb
- Master carton quantity: 3
- Master carton length: 17 in
- Master carton width: 16 in
- Master carton height: 18 in
- Master carton weight: 36 lb
Compliance and technical data
- Contains battery: Yes
- Battery type: Nickel- Cadmium
- Battery quantity: 2
Resources
Product Dossier
- SKU
- NEX-751-LED/R3
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $203.85
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
LED exit sign with 8" red letters with 1" stroke and white housing. NYC Approved Steel LED Exit with three 1W / 100lm per head adjustable head LED emergency lights & battery backup. Rugged 20 gauge steel luminaires comply with the latest New York City codes and performance standards. Available in exit or exit/ emergency combination units. Input Voltage: 120/277VAC Wattage: 4.1W Lumens / Wattage Per Head: (3) 100lm / 1W Battery: Ni-Cad 3.6V 600mAH per head battery offers 90 minute emergency operation on fully charged battery. Testing: High-charge / ready operation indicator light and test button. Finish: White Face: Both double and a blank face are included with 8" red letters and 1" stroke. Knockout directional chevrons Mounting: Wall or side mount. All mounting hardware included. Listing: cULus Listed for Damp Locations, UL 924, NFPA 101, NYC Approved
Product details
- Manufacturer SKU: NEX-751-LED/R3
- UPC: 732180923427
- Base item: NEX-751-LED
- Product family: EXIT
- Product line: 5010
- Category: Recessed
- Finish: White
- Lumen output: 300lm
- Wattage: 4.1W
- Safety listing: UL 924, NYC Approved, NFPA-101
- Location rating: Damp
- Country of origin: CHN
Dimensions and packaging
- Product length: 14.75 in
- Product width: 2.25 in
- Product height: 17 in
- Product weight: 9.35 lb
- Estimated shipping weight: 14 lb
- Individual package length: 16.25 in
- Individual package width: 4.75 in
- Individual package height: 17.125 in
- Individual package weight: 11.5 lb
- Master carton quantity: 3
- Master carton length: 17 in
- Master carton width: 16 in
- Master carton height: 18 in
- Master carton weight: 36 lb
Compliance and technical data
- Contains battery: Yes
- Battery type: Nickel- Cadmium
- Battery quantity: 2
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
