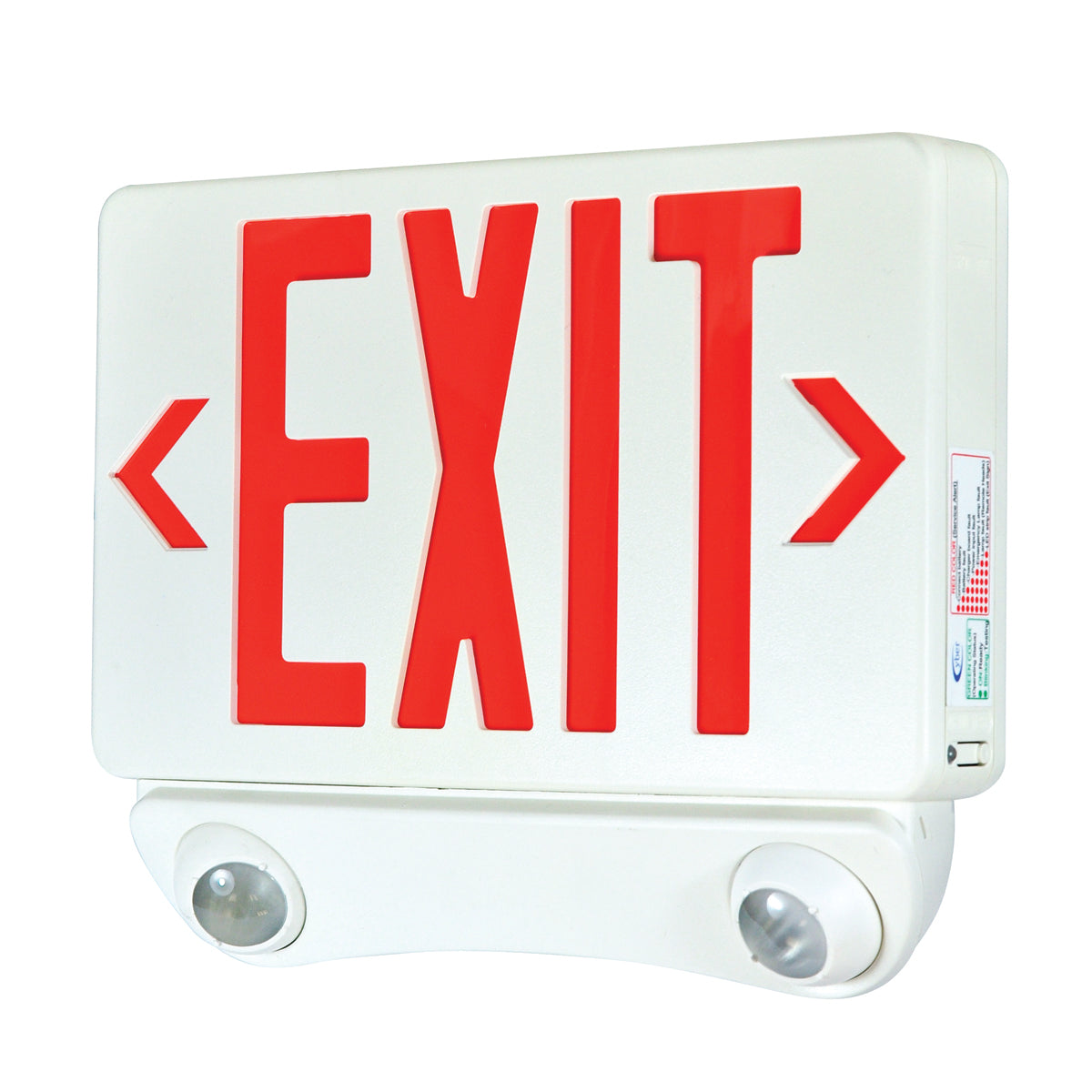

Nora NEX-730-LED/R LED Exit and Emergency Combination with Adjustable Heads, Red Letters / White Housing
LED exit sign with 6" red letters and white housing; dual emergency fixture features a ball & socket for full adjustability. Exit sign is powered by LED source for maximum life without maintenance; emergency fixtures utilize high performance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes.
Input Voltage: 120/277VAC
Wattage: 2.7
Lumens / Wattage Per Head: (2) 40lm / 0.6W
CCT: 4500K
Battery: 4.8V Replaceable 1.0Ah Ni-Cad battery operates integral heads and exit LED sources. 90 minute emergency operation Internal solid state charging circuit
Emergency: Two adjustable Balls & socket with round heads holding self-protected, covered LEDs; Emergency heads can be mounted on top or bottom of exit sign
Testing: High-charge/ready operation indicator light; Test button Isolated surge/short circuit protection
Finish: White
Face: Single or dual configuration. Optional solid face panel is included.
Mounting: Wall or side mount. All mounting hardware included.
Listing: cULus Listed for Damp Locations, UL 924, OSHA, NFPA 101
Product Dossier
- SKU
- NEX-730-LED/R
- Brand
- Nora Lighting
- Fixture Type
- EXIT
- Price
- $86.31
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
LED exit sign with 6" red letters and white housing; dual emergency fixture features a ball & socket for full adjustability. Exit sign is powered by LED source for maximum life without maintenance; emergency fixtures utilize high performance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes.
Input Voltage: 120/277VAC
Wattage: 2.7
Lumens / Wattage Per Head: (2) 40lm / 0.6W
CCT: 4500K
Battery: 4.8V Replaceable 1.0Ah Ni-Cad battery operates integral heads and exit LED sources. 90 minute emergency operation Internal solid state charging circuit
Emergency: Two adjustable Balls & socket with round heads holding self-protected, covered LEDs; Emergency heads can be mounted on top or bottom of exit sign
Testing: High-charge/ready operation indicator light; Test button Isolated surge/short circuit protection
Finish: White
Face: Single or dual configuration. Optional solid face panel is included.
Mounting: Wall or side mount. All mounting hardware included.
Listing: cULus Listed for Damp Locations, UL 924, OSHA, NFPA 101
