Nora Lighting

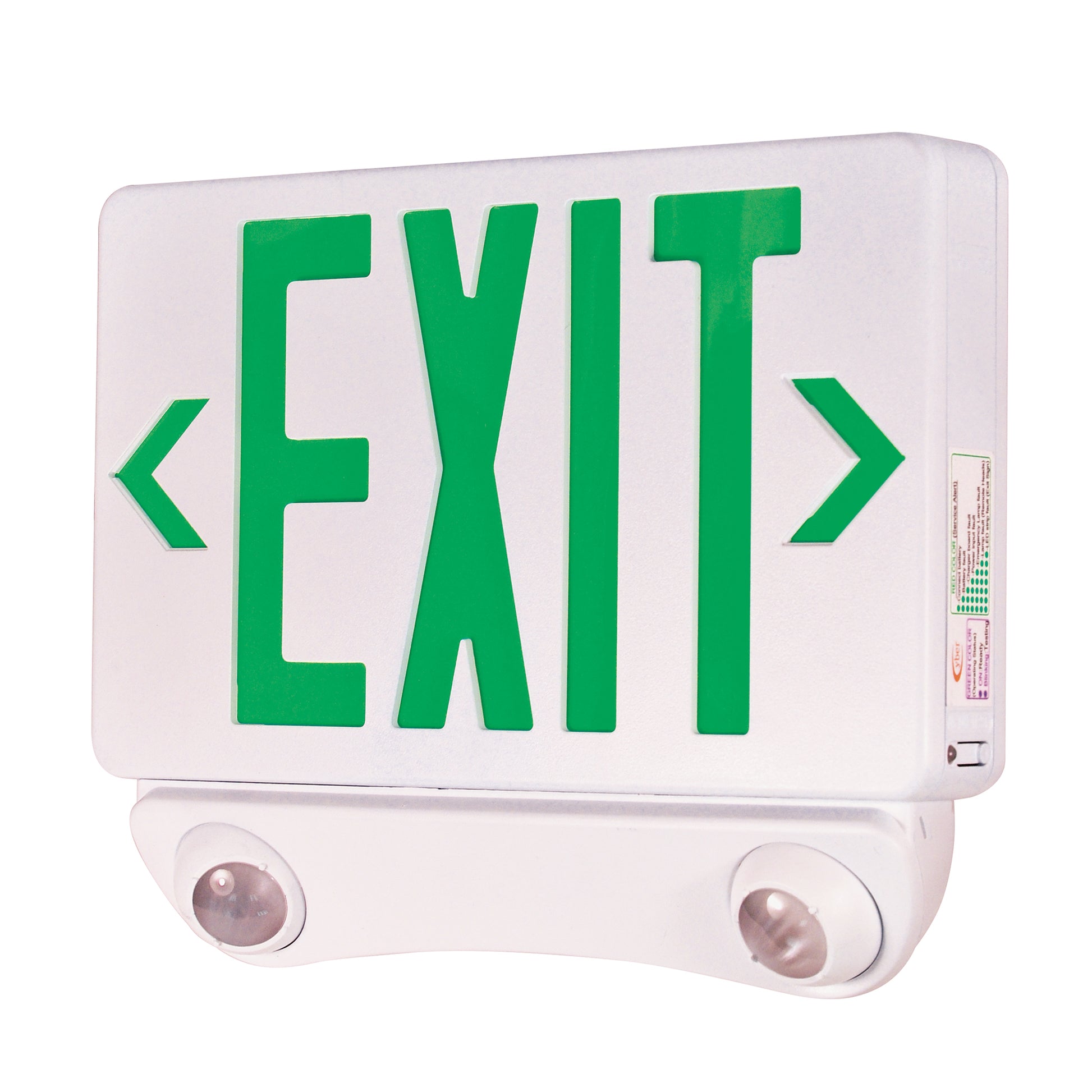

LED Exit and Emergency Combination with Adjustable Heads, Green Letters / White Housing
LED exit sign with 6" green letters and white housing; dual emergency fixture features a ball & socket for full adjustability. Exit sign is powered by LED source for maximum life without maintenance; emergency fixtures utilize high performance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes. Input Voltage: 120/277VAC Wattage: 2.7 Lumens / Wattage Per Head: (2) 40lm / 0.6W CCT: 4500K Battery: 4.8V Replaceable 1.0Ah Ni-Cad battery operates integral heads and exit LED sources. 90 minute emergency operation Internal solid state charging circuit Emergency: Two adjustable Balls & socket with round heads holding self-protected, covered LEDs; Emergency heads can be mounted on top or bottom of exit sign Testing: High-charge/ready operation indicator light; Test button Isolated surge/short circuit protection Finish: White Face: Single or dual configuration. Optional solid face panel is included. Mounting: Wall or side mount. All mounting hardware included. Listing: cULus Listed for Damp Locations, UL 924, OSHA, NFPA 101
Product details
- Manufacturer SKU: NEX-730-LED/G
- UPC: 732180703227
- Base item: NEX-730-LED
- Product family: EXIT
- Product line: 5010
- Category: Recessed
- Finish: White
- Lumen output: 80lm
- Wattage: 2.7W
- Color temperature: 4500K
- Safety listing: UL 924
- Location rating: Damp
- Country of origin: CHN
Dimensions and packaging
- Product length: 11.75 in
- Product width: 2.125 in
- Product height: 7.25 in
- Product weight: 2.6 lb
- Estimated shipping weight: 4 lb
- Individual package length: 12 in
- Individual package width: 2.375 in
- Individual package height: 7.125 in
- Individual package weight: 2.75 lb
- Master carton quantity: 12
- Master carton length: 16 in
- Master carton width: 13 in
- Master carton height: 16 in
- Master carton weight: 35 lb
Compliance and technical data
- Contains battery: Yes
- Battery type: Nickel- Cadmium
- Battery quantity: 1
Resources
Product Dossier
- SKU
- NEX-730-LED/G
- Brand
- Nora Lighting
- Fixture Type
- Recessed
- Price
- $86.31
- Availability
- Available to order
