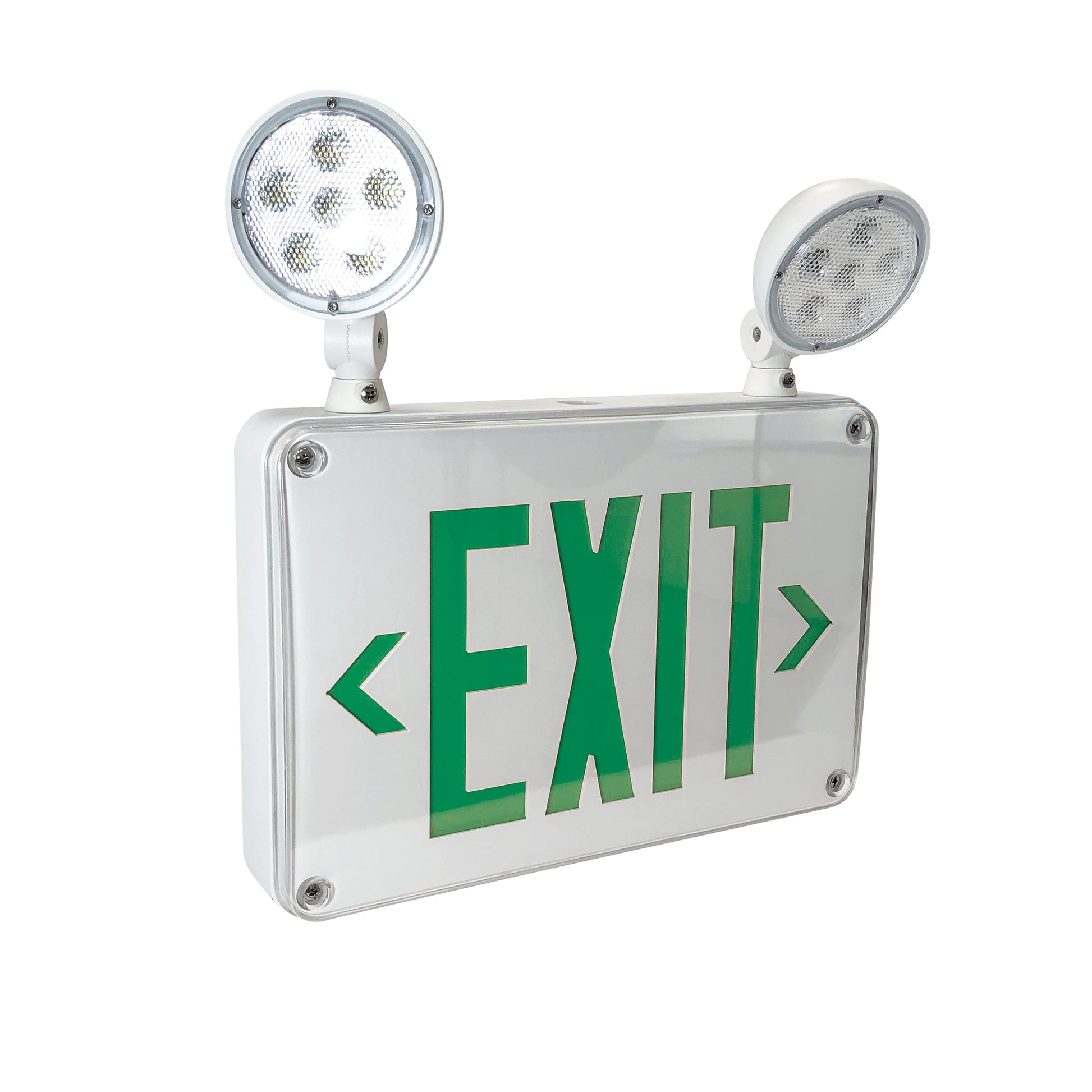

Nora NEX-720-LED/G-CC LED Self-Diagnostic Wet/Cold Location Exit & Emergency Sign w/ Battery Backup & Remote Capability, White Housing w/ Green Letters, Cold Weather Location
LED exit sign with 6” green letters / white housing, Cold Weather Location, color diffusion, battery backup & remote capability, self diagnostic testing, and dual fully rotatable lamp heads for maximized adjustability. Exit sign is powered by LED source for maximum life without maintenance; emergency fixtures utilize high performance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes.
Input Voltage: 120/277V
Wattage: 3.2W
Lumens / Wattage Per Head: (2) 90lm / 0.75W
Batteries: (2) 3.6V Replaceable 1000mAh NiCad
Recharge Time: 24 hours
Finish: White
Face: Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional second face plate included for exit signs requiring two sides. Fully illuminaited 6" letters with 3/4" stroke and field selectable directional chevrons included.
Mounting: Wall or Side Mount; Listed for installations indoor, outdoor or wet locations.
Remote Capability: 3.6V 1.5W max; Luminaire includes an additional 3.6V battery to operate a remote emergency head up to 1.5W for 90 minutes during power loss. (Damp Location rated when used with remote head)
Emergency: During loss of power, NiCad battery will operate two adjustable LED emergency heads for 90 minutes and additional battery will operature a remote emergency head. Batteries requires 24 hours to recharge when power is restored.
Cold Weather Option: Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
Listing: cULus Listed for Wet Locations, UL 924, NFPA 70, NFPA 101, Title 20
Product Dossier
- SKU
- NEX-720-LED/G-CC
- Brand
- Nora Lighting
- Fixture Type
- EXIT
- Price
- $239.31
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
LED exit sign with 6” green letters / white housing, Cold Weather Location, color diffusion, battery backup & remote capability, self diagnostic testing, and dual fully rotatable lamp heads for maximized adjustability. Exit sign is powered by LED source for maximum life without maintenance; emergency fixtures utilize high performance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes.
Input Voltage: 120/277V
Wattage: 3.2W
Lumens / Wattage Per Head: (2) 90lm / 0.75W
Batteries: (2) 3.6V Replaceable 1000mAh NiCad
Recharge Time: 24 hours
Finish: White
Face: Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional second face plate included for exit signs requiring two sides. Fully illuminaited 6" letters with 3/4" stroke and field selectable directional chevrons included.
Mounting: Wall or Side Mount; Listed for installations indoor, outdoor or wet locations.
Remote Capability: 3.6V 1.5W max; Luminaire includes an additional 3.6V battery to operate a remote emergency head up to 1.5W for 90 minutes during power loss. (Damp Location rated when used with remote head)
Emergency: During loss of power, NiCad battery will operate two adjustable LED emergency heads for 90 minutes and additional battery will operature a remote emergency head. Batteries requires 24 hours to recharge when power is restored.
Cold Weather Option: Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
Listing: cULus Listed for Wet Locations, UL 924, NFPA 70, NFPA 101, Title 20
