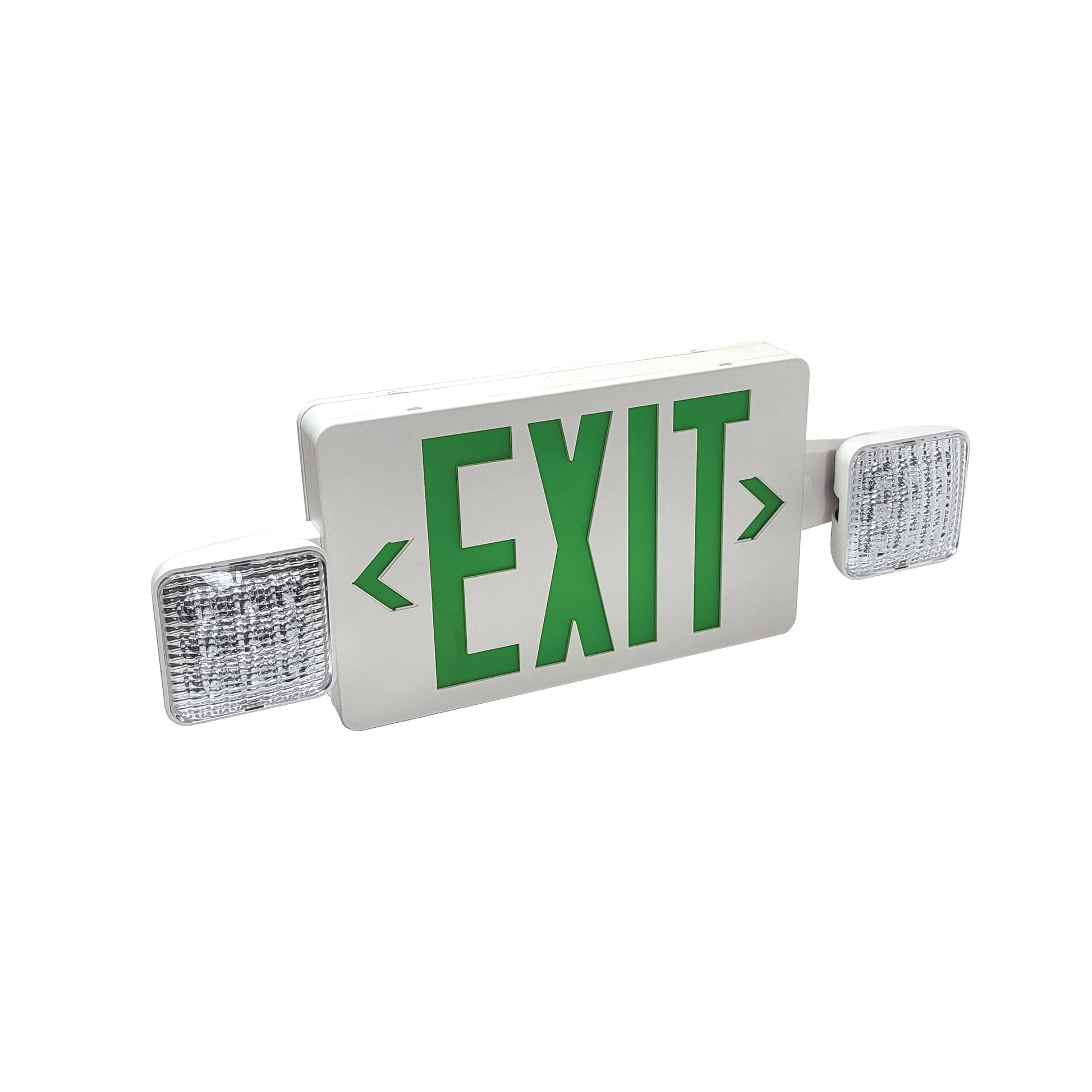

LED Exit and Emergency Combination with Adjustable Heads, Battery Backup, Green Letters / White Housing
LED exit sign: battery backup, 6” green letters / white housing, color diffusion, and dual fully rotatable lamp heads for maximized adjustability. Exit sign is powered by LED source for maximum life without maintenance; emergency fixtures utilize high performance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes. Input Voltage: 120/277VAV Wattage: 3.8W Lumens / Wattage Per Head: (2) 75lm / 1.5W CCT: 5700K Finish: White Battery: 3.6V 900mAh Ni-Cad battery operates integral heads and exit LED sources. 90 minute emergency operation Internal solid state charging circuit. High temperature rated Ni-cad battery; Low voltage protection; Test switch and battery charging indicator; 24-hours recharge, more than 90 minutes discharge Face: Single or dual configuration. Optional solid face panel is included. 6” high text with color diffusion. Knockout directional chevrons. Remote Capability: 3.6V / 0.75W / 75lm per head Testing: High-charge/ready operation indicator light; Manual test switch and indicator; Self-testing and self-diagnostics; Isolated surge/short circuit protection Mounting: Wall or side mount. All mounting hardware included. Listing: cULus Listed for Damp Locations, UL 924, OSHA, NFPA 101
Product details
- Manufacturer SKU: NEX-712-LED/G
- UPC: 732180706518
- Base item: NEX-712-LED
- Product family: EXIT
- Product line: 5010
- Category: Exit / Emergency
- Finish: White
- Lumen output: 150lm
- Wattage: 3.8W
- Color temperature: 5700K
- Safety listing: UL 924, OSHA, NFPA 101
- Location rating: Damp
- Country of origin: CHN
Dimensions and packaging
- Product length: 19 in
- Product width: 4 in
- Product height: 7.25 in
- Product weight: 3.25 lb
- Estimated shipping weight: 4 lb
- Individual package length: 16 in
- Individual package width: 7.75 in
- Individual package height: 3.5 in
- Individual package weight: 3.25 lb
- Master carton quantity: 6
- Master carton length: 17 in
- Master carton width: 16 in
- Master carton height: 12 in
- Master carton weight: 22 lb
Compliance and technical data
- Contains battery: Yes
- Battery type: Nickel-Cadmium
- Battery quantity: 1
Resources
Product Dossier
- SKU
- NEX-712-LED/G
- Brand
- Nora Lighting
- Fixture Type
- Exit / Emergency
- Price
- $113.31
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
LED exit sign: battery backup, 6” green letters / white housing, color diffusion, and dual fully rotatable lamp heads for maximized adjustability. Exit sign is powered by LED source for maximum life without maintenance; emergency fixtures utilize high performance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes. Input Voltage: 120/277VAV Wattage: 3.8W Lumens / Wattage Per Head: (2) 75lm / 1.5W CCT: 5700K Finish: White Battery: 3.6V 900mAh Ni-Cad battery operates integral heads and exit LED sources. 90 minute emergency operation Internal solid state charging circuit. High temperature rated Ni-cad battery; Low voltage protection; Test switch and battery charging indicator; 24-hours recharge, more than 90 minutes discharge Face: Single or dual configuration. Optional solid face panel is included. 6” high text with color diffusion. Knockout directional chevrons. Remote Capability: 3.6V / 0.75W / 75lm per head Testing: High-charge/ready operation indicator light; Manual test switch and indicator; Self-testing and self-diagnostics; Isolated surge/short circuit protection Mounting: Wall or side mount. All mounting hardware included. Listing: cULus Listed for Damp Locations, UL 924, OSHA, NFPA 101
Product details
- Manufacturer SKU: NEX-712-LED/G
- UPC: 732180706518
- Base item: NEX-712-LED
- Product family: EXIT
- Product line: 5010
- Category: Exit / Emergency
- Finish: White
- Lumen output: 150lm
- Wattage: 3.8W
- Color temperature: 5700K
- Safety listing: UL 924, OSHA, NFPA 101
- Location rating: Damp
- Country of origin: CHN
Dimensions and packaging
- Product length: 19 in
- Product width: 4 in
- Product height: 7.25 in
- Product weight: 3.25 lb
- Estimated shipping weight: 4 lb
- Individual package length: 16 in
- Individual package width: 7.75 in
- Individual package height: 3.5 in
- Individual package weight: 3.25 lb
- Master carton quantity: 6
- Master carton length: 17 in
- Master carton width: 16 in
- Master carton height: 12 in
- Master carton weight: 22 lb
Compliance and technical data
- Contains battery: Yes
- Battery type: Nickel-Cadmium
- Battery quantity: 1
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
