Nora Lighting

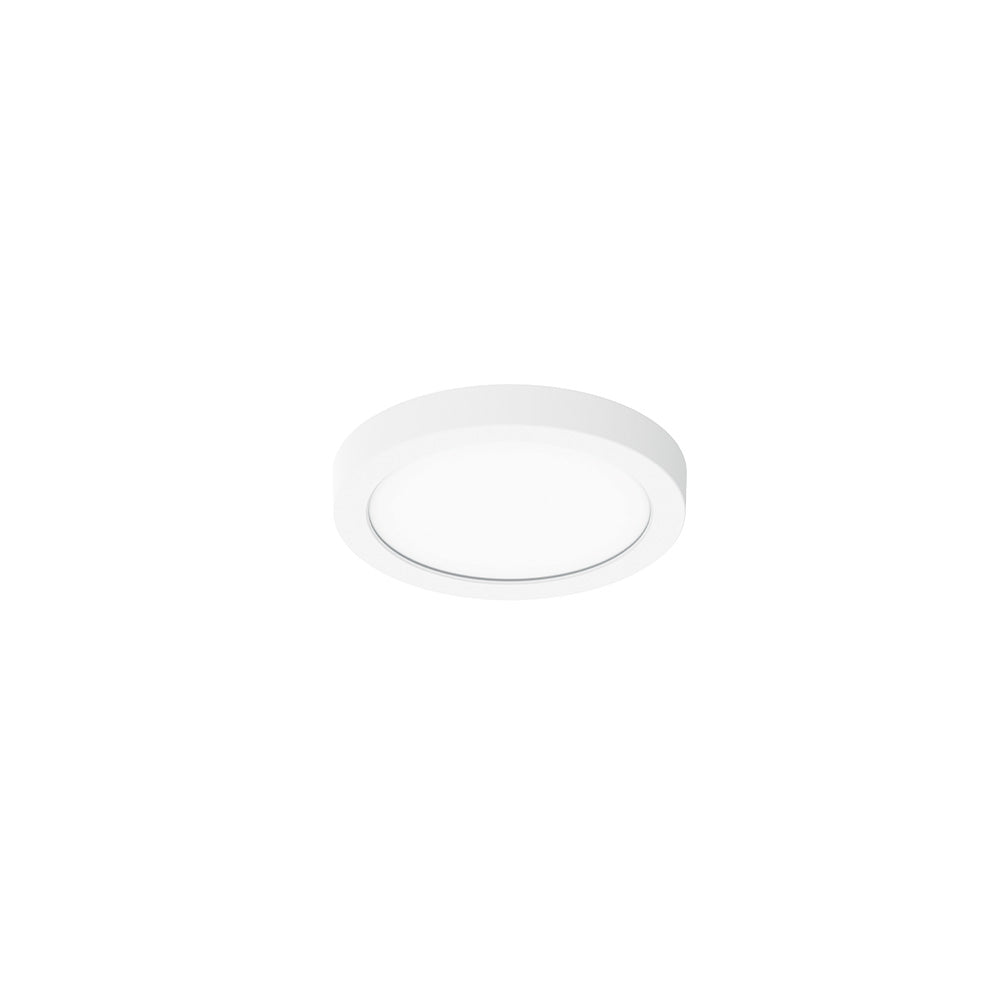

4" ELO LED Surface Mount Luminaire with Selectable Lumens & CCT, Up to 1150lm / 13W, Matte Powder White Finish
4" ELO LED luminaires are a thin 5/8" surface mounted luminaire two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance. Luminaires mounts easily over a standard or fire rated junction boxes. Input Voltage: 120-277V Lumens / Wattage: Selectable Lumens (700lm / 7W; 900lm / 9W; 1150lm / 13W) Color Temperature: Selectable CCT (27K/30K/35K/40K/50K) Color Rendering Index: 90+ CRI Dimming: 0-10V Finish: Matte Powder White Listing: cETLus Listed for Wet Locations
Product details
- Manufacturer SKU: NELOSW-4RTWMPWLE4
- UPC: 732180579655
- Base item: NELOSW-4RTW
- Product family: 4" ELO
- Product line: LE88
- Category: Surface
- Finish: Matte Powder White
- Lumen output: Selectable Lumens (700lm / 900lm / 1150lm)
- Wattage: Selectable Wattage (7W / 9W / 13W)
- Color temperature: Selectable CCT (27K / 30K / 35K / 40K / 50K)
- CRI: 90
- Safety listing: cETLus
- Location rating: Wet
- Country of origin: MYS
- Certifications: Title 24: Yes
Dimensions and packaging
- Product length: 5.25 in
- Product width: 5.25 in
- Product height: 1.75 in
- Product weight: 0.45 lb
- Estimated shipping weight: 2 lb
- Individual package length: 5.5 in
- Individual package width: 5.5 in
- Individual package height: 2.5 in
- Individual package weight: 0.7 lb
- Master carton quantity: 20
- Master carton length: 12 in
- Master carton width: 12 in
- Master carton height: 14 in
- Master carton weight: 16 lb
Compliance and technical data
- CEC item number: NELOSW-4RTWMPW
- CEC substitute item: NELO-4RTWMPW
- CEC database: Yes
- Contains battery: No
