Nora Lighting

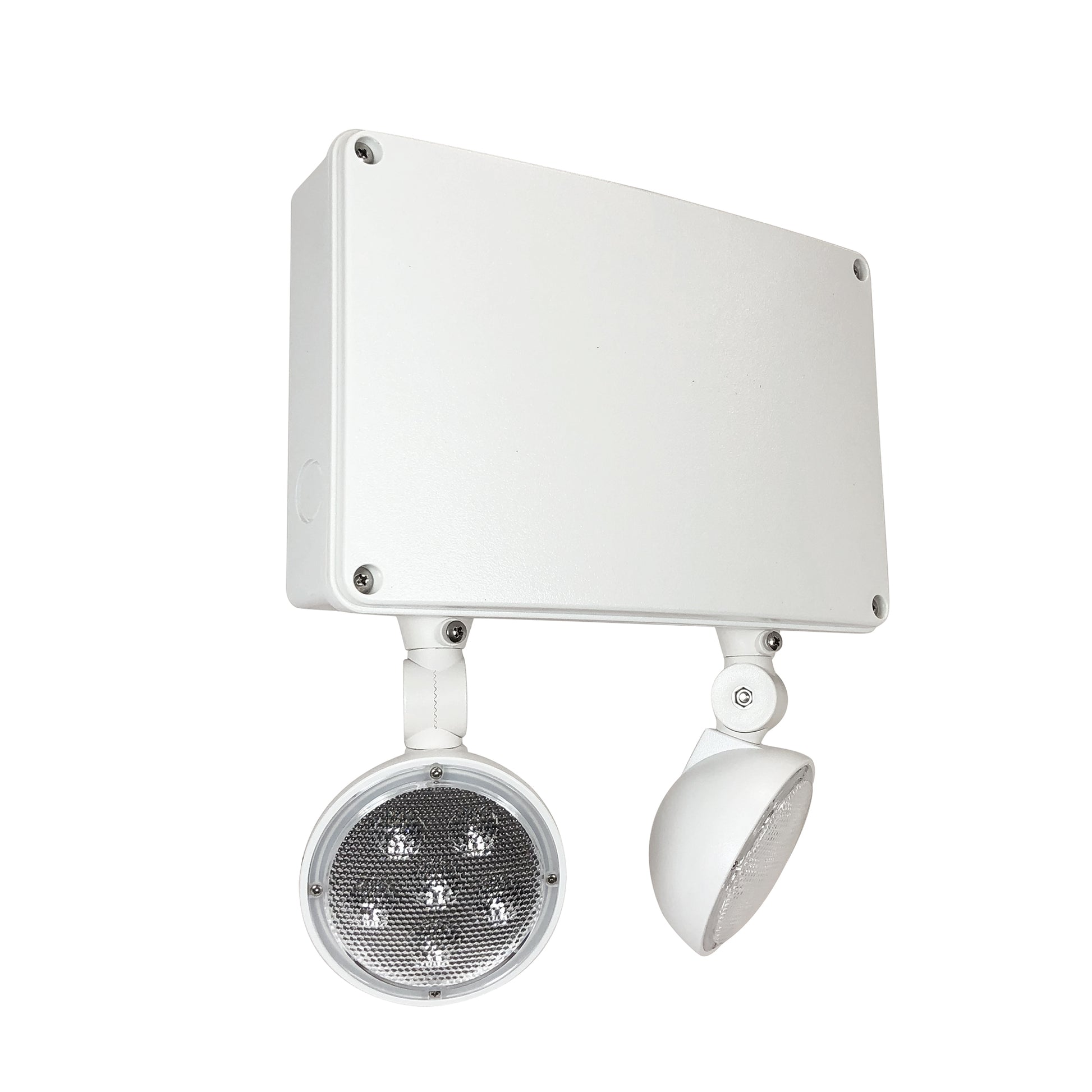

Emergency LED Dual Head Self-Diagnostic w/ Battery Backup, Wet Location, 2x 2.5W / 310lm, 120-277V, White
Wet location rated LED emergency luminaire with two adjustable heads. Luminaire is powered by LED sources for maximum life without maintenance. In the event of power loss, LED heads will operate for a minimum of 90 minutes. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur. Self diagnostic testing. Battery Backup. Input Voltage: 120-277VAC Power Consumption: 3W Lumens / Wattage Per Head: (2) 310lm / 2.5W Finish: White Face: Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Battery: 7.2V Replaceable 2000mA NiCad battery Testing: Luminaire includes manual test button for manual verification the transfer circuit and emergency heads operate correctly. Luminaire also performs self tests and diagnostics on battery, charging board, transfer circuit and LED emergency heads. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress. Emergency: During loss of power, NiCad battery will operate two adjustable LED emergency heads for 90 minutes. Battery requires 24 hours to recharge when power is restored. Listing: cULus Listed for Wet Locations, UL 924, NFPA 70, NFPA 101
Product details
- Manufacturer SKU: NE-970
- UPC: 732180706310
- Base item: NE-970
- Product family: Emergency
- Product line: 5020
- Category: Exit / Emergency
- Finish: White
- Lumen output: 620lm
- Wattage: 3W
- Safety listing: UL 924, NFPA 70, NFPA 101
- Location rating: Wet
- Country of origin: CHN
Dimensions and packaging
- Product length: 2.75 in
- Product width: 10.25 in
- Product height: 11.5 in
- Product weight: 2.5 lb
- Estimated shipping weight: 5 lb
- Individual package length: 12.25 in
- Individual package width: 10.25 in
- Individual package height: 2.875 in
- Individual package weight: 3 lb
- Master carton quantity: 6
- Master carton length: 18 in
- Master carton width: 14 in
- Master carton height: 12 in
- Master carton weight: 20 lb
Compliance and technical data
- Contains battery: No
Resources
Product Dossier
- SKU
- NE-970
- Brand
- Nora Lighting
- Fixture Type
- Exit / Emergency
- Price
- $161.91
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
Wet location rated LED emergency luminaire with two adjustable heads. Luminaire is powered by LED sources for maximum life without maintenance. In the event of power loss, LED heads will operate for a minimum of 90 minutes. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur. Self diagnostic testing. Battery Backup. Input Voltage: 120-277VAC Power Consumption: 3W Lumens / Wattage Per Head: (2) 310lm / 2.5W Finish: White Face: Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Battery: 7.2V Replaceable 2000mA NiCad battery Testing: Luminaire includes manual test button for manual verification the transfer circuit and emergency heads operate correctly. Luminaire also performs self tests and diagnostics on battery, charging board, transfer circuit and LED emergency heads. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress. Emergency: During loss of power, NiCad battery will operate two adjustable LED emergency heads for 90 minutes. Battery requires 24 hours to recharge when power is restored. Listing: cULus Listed for Wet Locations, UL 924, NFPA 70, NFPA 101
Product details
- Manufacturer SKU: NE-970
- UPC: 732180706310
- Base item: NE-970
- Product family: Emergency
- Product line: 5020
- Category: Exit / Emergency
- Finish: White
- Lumen output: 620lm
- Wattage: 3W
- Safety listing: UL 924, NFPA 70, NFPA 101
- Location rating: Wet
- Country of origin: CHN
Dimensions and packaging
- Product length: 2.75 in
- Product width: 10.25 in
- Product height: 11.5 in
- Product weight: 2.5 lb
- Estimated shipping weight: 5 lb
- Individual package length: 12.25 in
- Individual package width: 10.25 in
- Individual package height: 2.875 in
- Individual package weight: 3 lb
- Master carton quantity: 6
- Master carton length: 18 in
- Master carton width: 14 in
- Master carton height: 12 in
- Master carton weight: 20 lb
Compliance and technical data
- Contains battery: No
Resources
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
